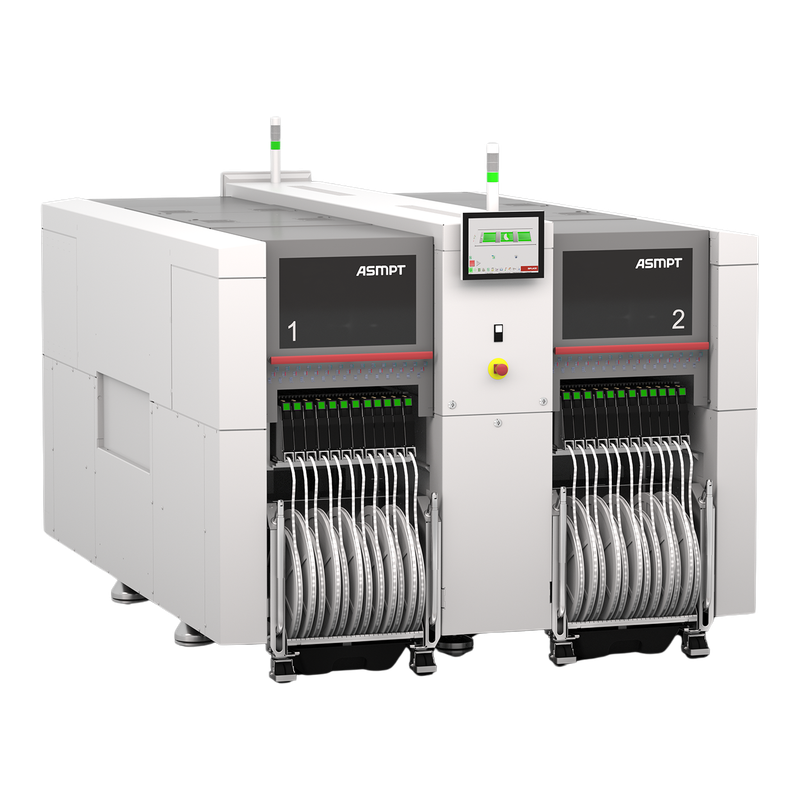

OverviewSIPLACE X S SMT Placement Platform
ASMPT presents SIPLACE X S for demanding volume production. X2S, X3S and X4S are published at different placement speeds, so the first decision is the required number of gantries and the line's real component mix. Conveyor and head options then define what the proposed machine can actually handle.
Manufacturer-published model data
SIPLACE X S Technical Specifications
| X2S / X3S / X4S published speed | 75,000 / 112,500 / 150,000 cph in ASMPT's model table; compare with a representative program, not a nameplate alone. |
|---|---|
| Conveyor board range | The table lists 450 × 685 mm single-track, 450 × 320 mm dual-track and 450 × 600 mm dual-as-single; an 800 mm board length is optional. |
| Feeder capacity | ASMPT lists 160 feeder positions for this platform; supplied feeders and changeover carts are separate quotation items. |
| Head configuration | CP20, CPP and TWIN heads cover different component and force ranges; the installed combination must match the bill of materials. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used SIPLACE X S unit.
Key Features
Configuration Must Be Verified
The actual SIPLACE X S quote should identify the exact X S variant, installed gantries, heads, feeders, transport, software and voltage.
Buyer decision guide
When SIPLACE X S Makes Sense — and When It May Not
SIPLACE X S selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for SIPLACE X S
SIPLACE X S should be evaluated against the buyer’s line takt, board size, component range, head mix and feeder access. The final application fit depends on the evidence for the specific unit.
Before quotation
Three SIPLACE X S Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which X2S/X3S/X4S variant and heads are on the model plate and configuration record?
SIPLACE X S buyers should confirm this with actual-machine evidence before quotation.
2
Does the offered conveyor support the largest board in the intended mode?
SIPLACE X S buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative component mix be demonstrated with the included feeders?
SIPLACE X S buyers should confirm this with actual-machine evidence before quotation.
Used-machine inspection
Inspection and Export Preparation for an Actual SIPLACE X S
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted SIPLACE X S.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
SIPLACE X S Spare Parts Scope
Request a unit-specific SIPLACE X S list for matching heads, feeders, nozzles, cameras and service consumables. Availability is confirmed only in a quotation.
Quotation checklist
Provide board and component mix, required line rate, head and feeder scope, site services and destination, required accessories and desired inspection evidence for the proposed SIPLACE X S.
FAQ
Common questions for overseas buyers evaluating a SIPLACE X S.
01Variants
Are X2S and X4S the same capacity?
No. ASMPT publishes 75,000 and 150,000 cph respectively under its test conditions.
02Board size
Is 800 mm board length standard?
No. ASMPT describes it as a long-board option; verify its installation.
03Head fit
Does a platform brochure prove the machine has every placement head?
No. Request the exact installed head list and working evidence.
Send Your SIPLACE X S Production Requirement
Share board and component mix, required line rate, head and feeder scope, site services and destination and inspection expectations. LCSMT can review whether an actual SIPLACE X S configuration is a practical match.
Manufacturer source
Read the original ASMPT SMT Solutions model information. Published specifications are configuration-dependent; verify the exact machine before quotation.
