OverviewClassic 1009 SMT Stencil Printer
DESEN lists Classic 1009 as an automatic solder-paste printer with a maximum PCB size of 460 × 350 mm. That is larger than the 400 × 340 mm limit shown for Classic 1008. Check the actual board and stencil envelope first, then verify the proposed printer's support, cleaning and paste-handling equipment.
Manufacturer-published model data
Classic 1009 Technical Specifications
| Published maximum PCB | 460 mm (X) × 350 mm (Y) on DESEN's Classic 1009 product page. |
|---|---|
| Stencil positioning | The manufacturer lists an automatic stencil-positioning module; verify its installed condition and setup. |
| Paste handling | DESEN lists automatic paste recovery and a smart squeegee system among the model's features. |
| Camera and compensation | The page describes a 1.3-megapixel digital camera and automatic print-angle compensation; request operating evidence on the offered unit. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Classic 1009 unit.
Key Features
Configuration Must Be Verified
The actual Classic 1009 quote should identify the stencil positioning, paste recovery, squeegee, cleaning assembly, software, voltage and visible condition.
Buyer decision guide
When Classic 1009 Makes Sense — and When It May Not
Classic 1009 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Classic 1009
Classic 1009 should be evaluated against the buyer’s PCB and stencil envelope, board support, paste recovery, cleaning and print alignment. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Classic 1009 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Do all intended PCB and stencil dimensions fit the proposed 1009 configuration?
Classic 1009 buyers should confirm this with actual-machine evidence before quotation.
2
Are the stencil positioning, paste recovery and cleaning systems present and operating?
Classic 1009 buyers should confirm this with actual-machine evidence before quotation.
3
Can the actual unit print and inspect a representative product before shipment?
Classic 1009 buyers should confirm this with actual-machine evidence before quotation.
Used-machine inspection
Inspection and Export Preparation for an Actual Classic 1009
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Classic 1009.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Classic 1009 Spare Parts Scope
Request a unit-specific Classic 1009 list for squeegee blades, cleaning rolls, support pins, belts, sensors and service consumables. Availability is confirmed only in a quotation.
Quotation checklist
Provide PCB and stencil dimensions, paste and support requirements, cleaning scope, voltage and destination, required accessories and desired inspection evidence for the proposed Classic 1009.
FAQ
Common questions for overseas buyers evaluating a Classic 1009.
01Board size
Is Classic 1009 limited to the same PCB size as Classic 1008?
No. DESEN lists 460 × 350 mm for 1009 and 400 × 340 mm for 1008.
02Features
Does the product page prove every used unit has working paste recovery?
No. Confirm installed hardware, software and a running demonstration.
03Photo

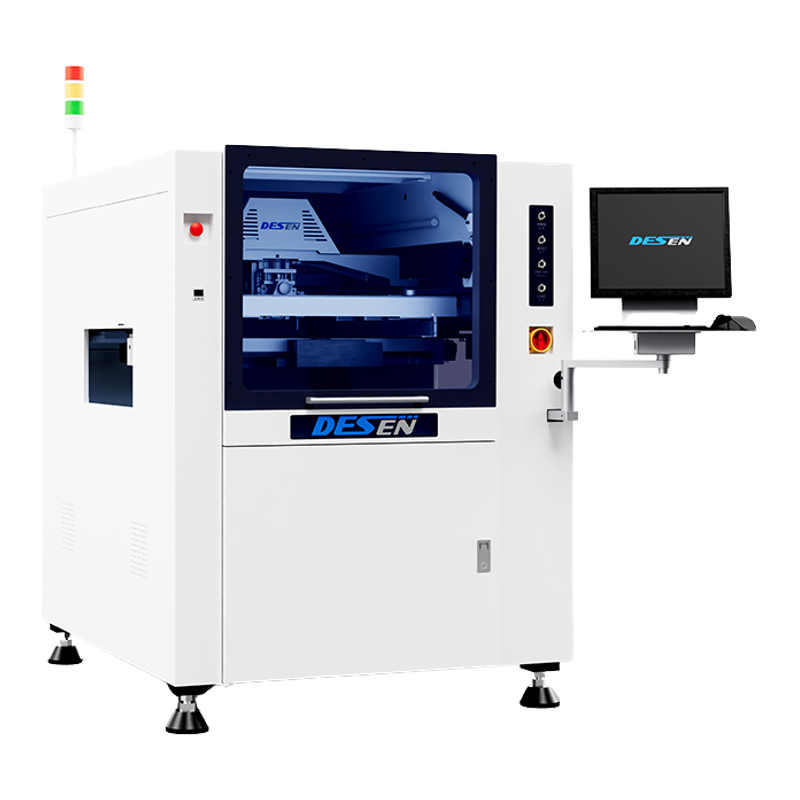

Does the catalogue image show an offered machine's condition?
No. It is a model reference; request exact-unit photos and test evidence.
Send Your Classic 1009 Production Requirement
Share PCB and stencil dimensions, paste and support requirements, cleaning scope, voltage and destination and inspection expectations. LCSMT can review whether an actual Classic 1009 configuration is a practical match.
Manufacturer source
Read the original Shenzhen DESEN Precision Machine Co., Ltd. model information. Published specifications are configuration-dependent; verify the exact machine before quotation.
