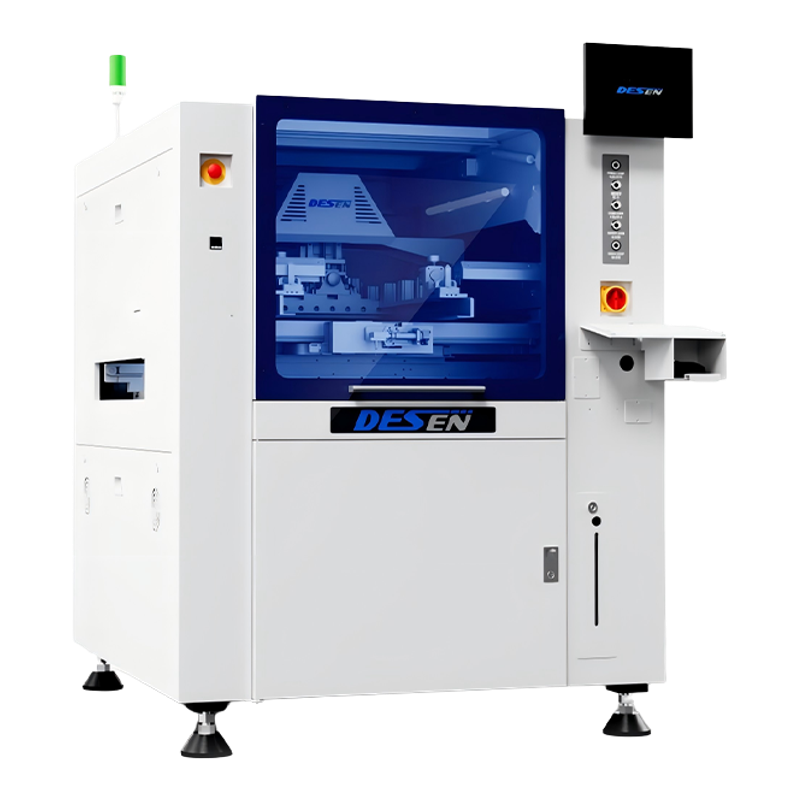

OverviewClassic 510A SMT Stencil Printer
DESEN lists a 510 × 510 mm maximum substrate for Classic 510A. This makes the board drawing a first screening check, followed by stencil frame, support and cleaning equipment. The catalogue feature list is not evidence that a particular used unit has working options.
Manufacturer-published model data
Classic 510A Technical Specifications
| Maximum substrate | 510 × 510 mm on the DESEN model page. |
|---|---|
| Stencil alignment | An automatic stencil-positioning module is listed; confirm the offered machine's installation. |
| Board support | The manufacturer describes a substrate support and positioning system. |
| Cleaning and platform | Intelligent cleaning and automatic board-thickness platform adjustment are listed features. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Classic 510A unit.
Key Features
Configuration Must Be Verified
The actual Classic 510A quote should identify the stencil registration, support pins, cleaning, squeegee, platform, voltage and visible condition.
Buyer decision guide
When Classic 510A Makes Sense — and When It May Not
Classic 510A selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Classic 510A
Classic 510A should be evaluated against the buyer’s board and stencil dimensions, board support, cleaning and alignment. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Classic 510A Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Do the PCB, carrier and stencil all fit the proposed unit?
Classic 510A buyers should confirm this with actual-machine evidence before quotation.
2
Are automatic positioning and cleaning installed and functional?
Classic 510A buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative print show support and alignment repeatability?
Classic 510A buyers should confirm this with actual-machine evidence before quotation.
Used-machine inspection
Inspection and Export Preparation for an Actual Classic 510A
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Classic 510A.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Classic 510A Spare Parts Scope
Request a unit-specific Classic 510A list for squeegees, cleaning media, support tooling, belts and sensors. Availability is confirmed only in a quotation.
Quotation checklist
Provide PCB and stencil drawings, paste and cleaning requirements, voltage and destination, required accessories and desired inspection evidence for the proposed Classic 510A.
FAQ
Common questions for overseas buyers evaluating a Classic 510A.
01Board size
Does the 510A accept every 510 mm assembly?
Not necessarily. Carriers, edge clearance and support need a drawing check.
02Features
Does the catalogue prove the used unit has working automatic cleaning?
No. Inspect the actual configuration and run a test.
03Condition
Does the model photograph prove the offered unit's condition?
No. Request exact-unit photographs and an operating video.
Send Your Classic 510A Production Requirement
Share PCB and stencil drawings, paste and cleaning requirements, voltage and destination and inspection expectations. LCSMT can review whether an actual Classic 510A configuration is a practical match.
Manufacturer source
Read the original Shenzhen DESEN Precision Machine Co., Ltd. model information. Published specifications are configuration-dependent; verify the exact machine before quotation.
