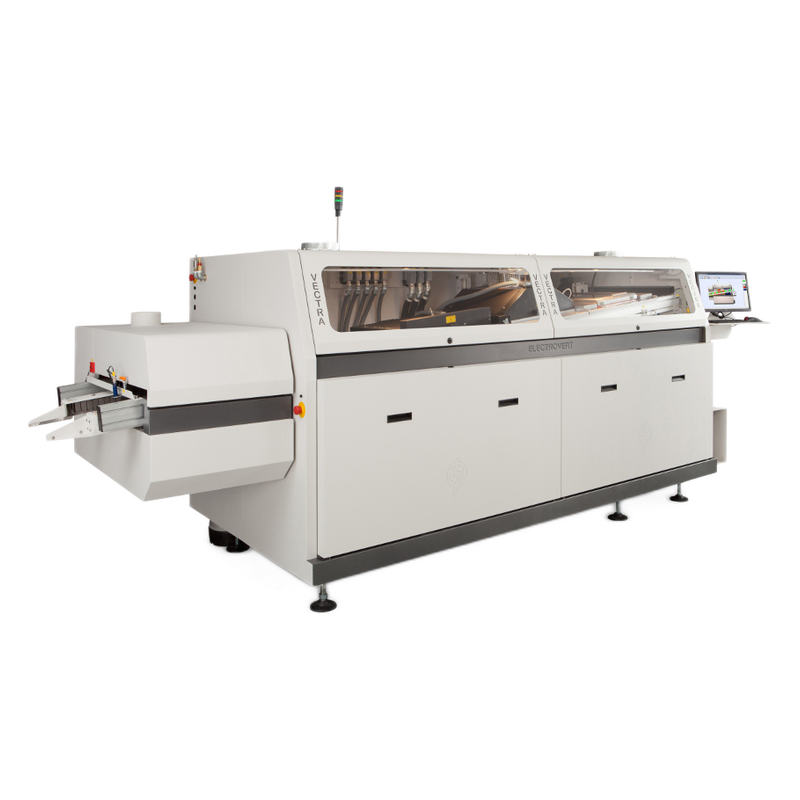

OverviewVectraES Wave Soldering System
Electrovert describes the VectraES for low-to-medium mass board assemblies in high-volume wave soldering where changeover, flexibility and reliability matter. This local review distinguishes standard published capability from optional fluxing, preheat, nitrogen, wave-control and conveyor configurations on an offered machine.
Manufacturer-published model data
VectraES Technical Specifications
| Published process width | 457 mm standard; the product page also describes a 508 mm optional width configuration. |
|---|---|
| Published conveyor load | Up to 22 kg, with automatic lead-clearance adjustment described as standard. |
| Preheat capacity | Up to 1.8 m bottom-side and 1.2 m top-side preheat, with multiple heater types and positions depending on configuration. |
| Soldering environment | Air is standard in the specification; nitrogen boundary, short-tunnel and full-tunnel arrangements are optional. |
| Flux and wave options | Foam fluxing is standard in the specification, while ServoSpray, ServoJet and ServoSonic systems are configuration options; ExactaWave is optional. |
| Published footprint | 3.45 m with rail guides in the standard length or 4.01 m in the listed optional arrangement. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used VectraES unit.
Key Features
Configuration Must Be Verified
The actual VectraES quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When VectraES Makes Sense — and When It May Not
VectraES selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for VectraES
VectraES should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three VectraES Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which PCB width, pallet weight, alloy, flux chemistry, preheat profile and throughput must the VectraES support?
VectraES buyers should confirm this with actual-machine evidence before quotation.
2
Which fluxer, preheat, nitrogen, wave-nozzle, width-adjustment and control options are installed?
VectraES buyers should confirm this with actual-machine evidence before quotation.
3
Can the offered unit demonstrate recipe control, flux delivery, preheat stability, wave-height behavior, conveyor transfer and safe pot handling?
VectraES buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
VectraES Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- Relevant transport, motion or inspection sequence
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual VectraES
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted VectraES.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
VectraES Spare Parts Scope
Request a unit-specific VectraES list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed VectraES.
FAQ
Common questions for overseas buyers evaluating a VectraES.
01Process width
Is 508 mm standard on VectraES?
No. ITW EAE lists 457 mm as standard and describes 508 mm as optional.
02Nitrogen
Is a nitrogen tunnel included on every machine?
No. The official specification lists nitrogen boundary and tunnel arrangements as options.
03Used-unit evidence
What should buyers inspect?
Verify the option list, alloy history, pot and pump condition, fluxer, preheaters, conveyor, controls, extraction, safety systems and a representative process run.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular VectraES unit.
Send Your VectraES Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual VectraES configuration is a practical match.
