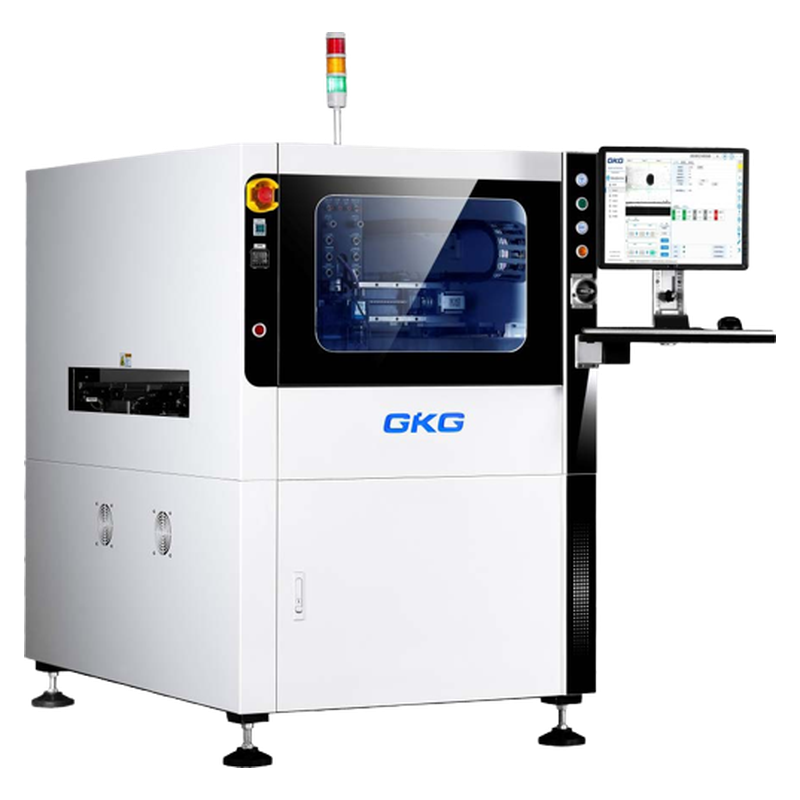

OverviewGKG DH5-E 5-Axis Automatic High-Speed Dispenser
GKG DH5-E is an automatic dispenser for controlled material placement before or within an SMT process. The source-recorded working range is PCB range XY50 × 50 to 510 × 686 mm. This is model-level documentation, not proof of an installed valve or a running unit.
Model overview
How GKG DH5-E fits the process
GKG DH5-E is an automatic dispenser for controlled material placement before or within an SMT process. The source-recorded working range is PCB range XY50 × 50 to 510 × 686 mm. This is model-level documentation, not proof of an installed valve or a running unit.
The DH5-E technical sheet describes a larger working envelope and optional dual-valve and rotation/tilt arrangements; those options must be verified on the actual machine.
The document records X/Y/Z repeat-position accuracy ±18 μm at 4 sigma (CPK ≥ 1.33) and AC 220 V ±10%, 50/60 Hz, 2.5 kW. Match the actual PCB, dispensing material, valve/nozzle arrangement, air supply and line interface to the job; ask for a witnessed dispense pattern and motion test.
Source-recorded technical data
GKG DH5-E Technical Specifications
Machine and process data
| Model | GKG DH5-E |
|---|---|
| Product type | 5-Axis Automatic High-Speed Dispenser |
| Published positioning | Large-format dispensing with optional dual lane |
| Board / working range | PCB range XY50 × 50 to 510 × 686 mm |
| Published accuracy | X/Y/Z repeat-position accuracy ±18 μm at 4 sigma (CPK ≥ 1.33) |
| Power / configuration | Confirm the exact supplied configuration, voltage and installed options before quotation. |
Configuration and verification
| PCB thickness | 0.6–8 mm |
|---|---|
| Transport height | 900 ± 30 mm |
| Interface | SMEMA |
| Air supply | 4–6 kgf/cm² |
| Power | AC 220 V ±10%, 50/60 Hz, 2.5 kW |
Important: Figures are transcribed from the supplied brochure or technical sheet. They are model-document data, not a guarantee for a specific used machine.
Buyer decision guide
Evaluate GKG DH5-E for your line
The DH5-E technical sheet describes a larger working envelope and optional dual-valve and rotation/tilt arrangements; those options must be verified on the actual machine.
Running video confirmation
Request actual-unit running evidence
Before quotation, request a power-on demonstration of a representative print or dispensing cycle for the actual GKG DH5-E.
Used-machine inspection
Inspection and export preparation
Review actual-unit evidence in two balanced workstreams before a quotation is issued.
Machine and configuration
- Nameplate and configurationModel, serial, voltage and installed options.
- Process hardwarePrinter or dispenser hardware, conveyor and relevant vision / cleaning configuration.
Use actual-unit evidence to separate brochure capability from the offered machine. Ask for valve/nozzle, rail, camera, air-supply and sample-pattern evidence. Confirm packing evidence before export.
FAQ
Questions for buyers evaluating GKG DH5-E.
What range is published for GKG DH5-E?
The supplied specification lists PCB range XY50 × 50 to 510 × 686 mm; usable clearance and fixture fit require a real-machine check.
Does every documented option come with an offered GKG DH5-E?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?
Ask for valve/nozzle, rail, camera, air-supply and sample-pattern evidence. Request unit-specific running proof; the static page image is not a test record.
Send your GKG DH5-E requirement
Share board dimensions, process needs, electrical requirements, destination and required inspection evidence.
