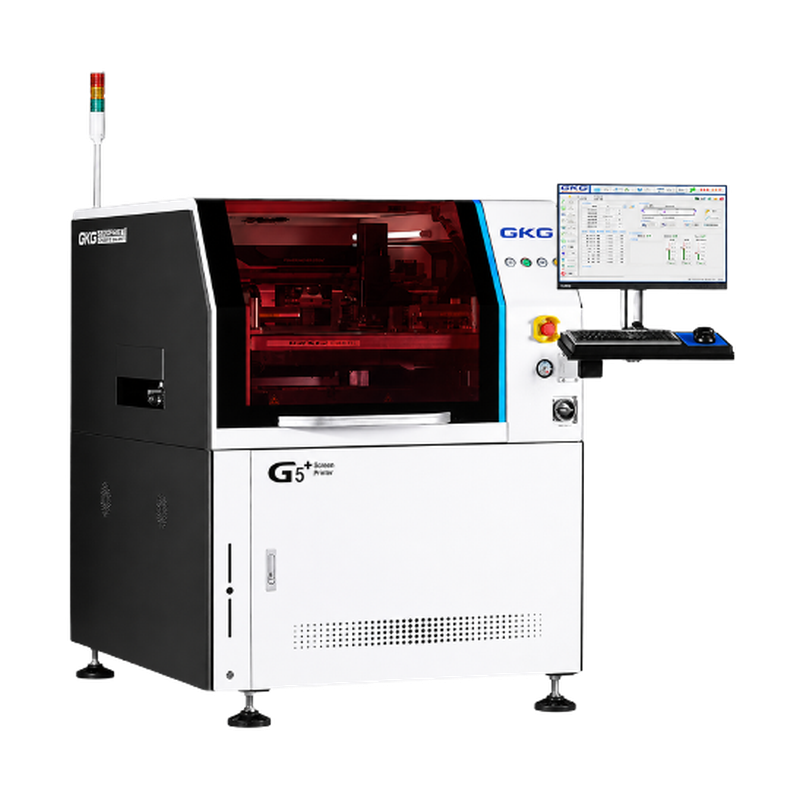

OverviewGKG G5+ Fully Automatic Solder Paste Printer
GKG G5+ is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 400 × 340 mm maximum board size; 530 × 340 mm optional. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
Model overview
How GKG G5+ fits the process
GKG G5+ is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 400 × 340 mm maximum board size; 530 × 340 mm optional. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
The G5+ brochure positions this printer around process visibility and connected printing. Ask which vision, cleaning and software functions are installed and operational.
The brochure lists ±12.5 μm repeat position accuracy; ±22 μm print accuracy and a 10–200 mm/s print-speed range. It also describes CCD fiducial recognition and dry, wet and vacuum cleaning modes. Check the actual camera, stencil/tooling, cleaning hardware and print sample before relying on those model-level claims.
Source-recorded technical data
GKG G5+ Technical Specifications
Machine and process data
| Model | GKG G5+ |
|---|---|
| Product type | Fully Automatic Solder Paste Printer |
| Published positioning | Process visibility and connected printing |
| Board / working range | 400 × 340 mm maximum board size; 530 × 340 mm optional |
| Published accuracy | ±12.5 μm repeat position accuracy; ±22 μm print accuracy |
Configuration and verification
| Power / configuration | Confirm the exact supplied configuration, voltage and installed options before quotation. |
|---|---|
| Print speed | 10–200 mm/s |
| Cleaning | Brochure describes dry, wet and vacuum cleaning modes. |
| Vision | Brochure describes CCD-based fiducial / mark recognition. |
| Power | AC 220 V ±10%, 50/60 Hz, 2.2 kW where stated; confirm the actual unit. |
Important: Figures are transcribed from the supplied brochure or technical sheet. They are model-document data, not a guarantee for a specific used machine.
Buyer decision guide
Evaluate GKG G5+ for your line
The G5+ brochure positions this printer around process visibility and connected printing. Ask which vision, cleaning and software functions are installed and operational.
Running video confirmation
Request actual-unit running evidence
Before quotation, request a power-on demonstration of a representative print or dispensing cycle for the actual GKG G5+.
Used-machine inspection
Inspection and export preparation
Review actual-unit evidence in two balanced workstreams before a quotation is issued.
Machine and configuration
- Nameplate and configurationModel, serial, voltage and installed options.
- Process hardwarePrinter or dispenser hardware, conveyor and relevant vision / cleaning configuration.
Use actual-unit evidence to separate brochure capability from the offered machine. Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Confirm packing evidence before export.
Stencil printing versus dispensing
A stencil printer transfers solder paste through stencil apertures. A dispenser deposits material through its configured dispensing process. Compare the methods around deposit geometry, material, stencil/tooling requirements and changeover rather than treating them as identical machines.
Review board support, stencil-frame fit, clamping, print separation and cleaning on the actual substrate. Assess paste deposits with suitable inspection and request repeatability evidence after a representative changeover.
For GKG G5+, use the page’s Product type, Published positioning, Board / working range entries as quotation checkpoints. Request evidence for the offered serial; published model data and reference images do not establish its installed options or stock.
Printers & dispensers · Stencil Printer Setup Checks That Reduce First-Pass Defects
FAQ
Questions for buyers evaluating GKG G5+.
What board range does the GKG G5+ brochure state?
It records 400 × 340 mm maximum board size; 530 × 340 mm optional; optional ranges and the offered unit's tooling must be confirmed separately.
Does every documented option come with an offered GKG G5+?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?
Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Request unit-specific running proof; the static page image is not a test record.
Send your GKG G5+ requirement
Share board dimensions, process needs, electrical requirements, destination and required inspection evidence.
