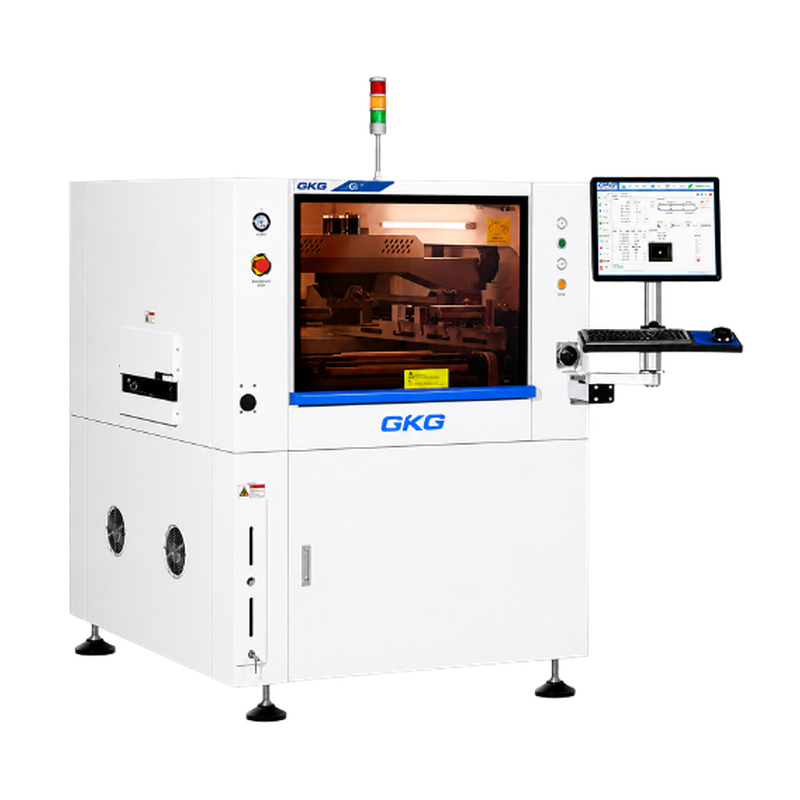

OverviewGKG G9+ Fully Automatic Solder Paste Printer
GKG G9+ is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 450 × 340 mm maximum board size. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
Model overview
How GKG G9+ fits the process
GKG G9+ is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 450 × 340 mm maximum board size. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
The G9+ document states a 450 × 340 mm maximum board and tighter published print accuracy than the other G-series pages in this review; compare real print samples, not headline tolerance alone.
The brochure lists ±10 μm repeat position accuracy; ±15 μm print accuracy and a 10–200 mm/s print-speed range. It also describes CCD fiducial recognition and dry, wet and vacuum cleaning modes. Check the actual camera, stencil/tooling, cleaning hardware and print sample before relying on those model-level claims.
Source-recorded technical data
GKG G9+ Technical Specifications
Machine and process data
| Model | GKG G9+ |
|---|---|
| Product type | Fully Automatic Solder Paste Printer |
| Published positioning | Precision printing for SMT lines |
| Board / working range | 450 × 340 mm maximum board size |
| Published accuracy | ±10 μm repeat position accuracy; ±15 μm print accuracy |
Configuration and verification
| Power / configuration | Confirm the exact supplied configuration, voltage and installed options before quotation. |
|---|---|
| Print speed | 10–200 mm/s |
| Cleaning | Brochure describes dry, wet and vacuum cleaning modes. |
| Vision | Brochure describes CCD-based fiducial / mark recognition. |
| Power | AC 220 V ±10%, 50/60 Hz, 2.2 kW where stated; confirm the actual unit. |
Important: Figures are transcribed from the supplied brochure or technical sheet. They are model-document data, not a guarantee for a specific used machine.
Buyer decision guide
Evaluate GKG G9+ for your line
The G9+ document states a 450 × 340 mm maximum board and tighter published print accuracy than the other G-series pages in this review; compare real print samples, not headline tolerance alone.
Running video confirmation
Request actual-unit running evidence
Before quotation, request a power-on demonstration of a representative print or dispensing cycle for the actual GKG G9+.
Used-machine inspection
Inspection and export preparation
Review actual-unit evidence in two balanced workstreams before a quotation is issued.
Machine and configuration
- Nameplate and configurationModel, serial, voltage and installed options.
- Process hardwarePrinter or dispenser hardware, conveyor and relevant vision / cleaning configuration.
Use actual-unit evidence to separate brochure capability from the offered machine. Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Confirm packing evidence before export.
Stencil printing versus dispensing
A stencil printer transfers solder paste through stencil apertures. A dispenser deposits material through its configured dispensing process. Compare the methods around deposit geometry, material, stencil/tooling requirements and changeover rather than treating them as identical machines.
Review board support, stencil-frame fit, clamping, print separation and cleaning on the actual substrate. Assess paste deposits with suitable inspection and request repeatability evidence after a representative changeover.
For GKG G9+, use the page’s Product type, Published positioning, Board / working range entries as quotation checkpoints. Request evidence for the offered serial; published model data and reference images do not establish its installed options or stock.
Printers & dispensers · Stencil Printer Setup Checks That Reduce First-Pass Defects
FAQ
Questions for buyers evaluating GKG G9+.
What board range does the GKG G9+ brochure state?
It records 450 × 340 mm maximum board size; optional ranges and the offered unit's tooling must be confirmed separately.
Does every documented option come with an offered GKG G9+?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?
Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Request unit-specific running proof; the static page image is not a test record.
Send your GKG G9+ requirement
Share board dimensions, process needs, electrical requirements, destination and required inspection evidence.
