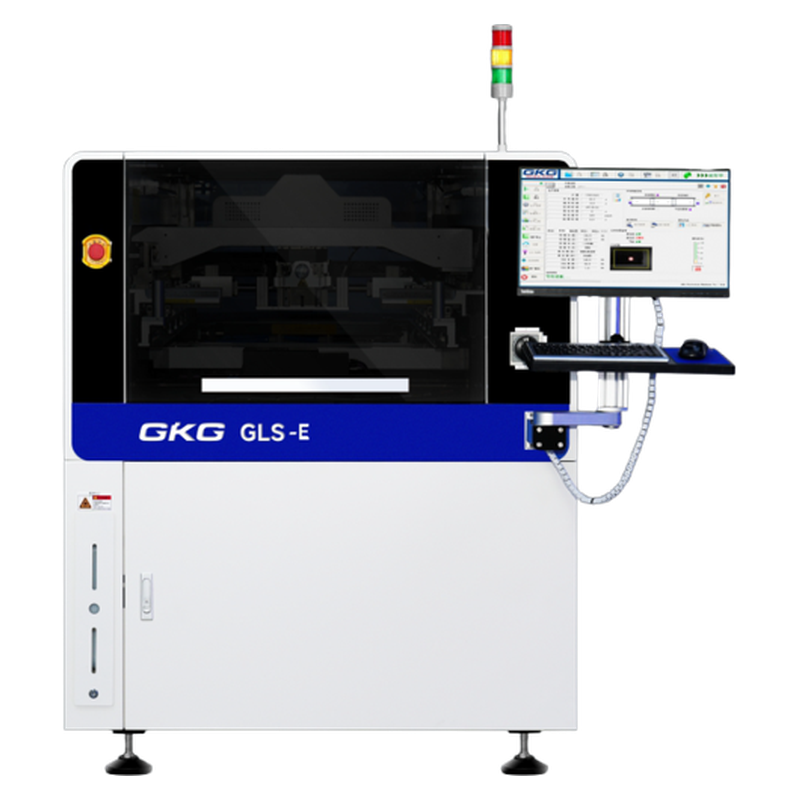

OverviewGKG GLS-E Fully Automatic Solder Paste Printer
GKG GLS-E is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 510 × 510 mm maximum laminate dimension. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
Model overview
How GKG GLS-E fits the process
GKG GLS-E is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 510 × 510 mm maximum laminate dimension. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
The GLS-E document specifies a 510 × 510 mm laminate envelope. Check the actual substrate, stencil and tooling fit before treating that published range as usable for a particular job.
The brochure lists ±12.5 μm repeat position accuracy; ±22 μm repeated printing precision and a 10–200 mm/s print-speed range. It also describes CCD fiducial recognition and dry, wet and vacuum cleaning modes. Check the actual camera, stencil/tooling, cleaning hardware and print sample before relying on those model-level claims.
Source-recorded technical data
GKG GLS-E Technical Specifications
Machine and process data
| Model | GKG GLS-E |
|---|---|
| Product type | Fully Automatic Solder Paste Printer |
| Published positioning | Large-format laminate processing |
| Board / working range | 510 × 510 mm maximum laminate dimension |
| Published accuracy | ±12.5 μm repeat position accuracy; ±22 μm repeated printing precision |
Configuration and verification
| Power / configuration | Confirm the exact supplied configuration, voltage and installed options before quotation. |
|---|---|
| Print speed | 10–200 mm/s |
| Cleaning | Brochure describes dry, wet and vacuum cleaning modes. |
| Vision | Brochure describes CCD-based fiducial / mark recognition. |
| Power | AC 220 V ±10%, 50/60 Hz, 2.2 kW where stated; confirm the actual unit. |
Important: Figures are transcribed from the supplied brochure or technical sheet. They are model-document data, not a guarantee for a specific used machine.
Buyer decision guide
Evaluate GKG GLS-E for your line
The GLS-E document specifies a 510 × 510 mm laminate envelope. Check the actual substrate, stencil and tooling fit before treating that published range as usable for a particular job.
Running video confirmation
Request actual-unit running evidence
Before quotation, request a power-on demonstration of a representative print or dispensing cycle for the actual GKG GLS-E.
Used-machine inspection
Inspection and export preparation
Review actual-unit evidence in two balanced workstreams before a quotation is issued.
Machine and configuration
- Nameplate and configurationModel, serial, voltage and installed options.
- Process hardwarePrinter or dispenser hardware, conveyor and relevant vision / cleaning configuration.
Use actual-unit evidence to separate brochure capability from the offered machine. Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Confirm packing evidence before export.
FAQ
Questions for buyers evaluating GKG GLS-E.
What board range does the GKG GLS-E brochure state?
It records 510 × 510 mm maximum laminate dimension; optional ranges and the offered unit's tooling must be confirmed separately.
Does every documented option come with an offered GKG GLS-E?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?
Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Request unit-specific running proof; the static page image is not a test record.
Send your GKG GLS-E requirement
Share board dimensions, process needs, electrical requirements, destination and required inspection evidence.
