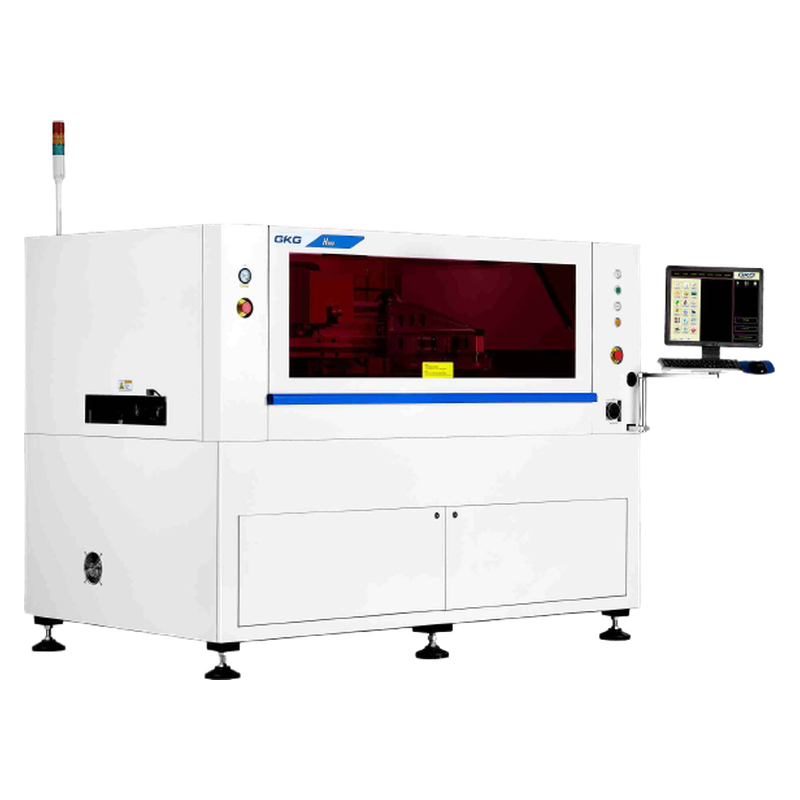

OverviewGKG H900 Fully Automatic Solder Paste Printer
GKG H900 is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 900 × 360 mm maximum board size; 900 × 400 mm optional. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
Model overview
How GKG H900 fits the process
GKG H900 is an automatic solder-paste stencil printer for applying paste before placement. The supplied brochure records 900 × 360 mm maximum board size; 900 × 400 mm optional. That model envelope helps shortlist a machine, but does not establish the working range of a quoted unit.
The H900 document lists a 900 × 360 mm board maximum and a 900 × 400 mm optional range. Confirm whether the offered unit has the hardware for the optional envelope.
The brochure lists ±0.015 mm repeat position accuracy; ±0.025 mm print accuracy and a 10–200 mm/s print-speed range. It also describes CCD fiducial recognition and dry, wet and vacuum cleaning modes. Check the actual camera, stencil/tooling, cleaning hardware and print sample before relying on those model-level claims.
Source-recorded technical data
GKG H900 Technical Specifications
Machine and process data
| Model | GKG H900 |
|---|---|
| Product type | Fully Automatic Solder Paste Printer |
| Published positioning | Large-board solder-paste printing |
| Board / working range | 900 × 360 mm maximum board size; 900 × 400 mm optional |
| Published accuracy | ±0.015 mm repeat position accuracy; ±0.025 mm print accuracy |
Configuration and verification
| Power / configuration | Confirm the exact supplied configuration, voltage and installed options before quotation. |
|---|---|
| Print speed | 10–200 mm/s |
| Cleaning | Brochure describes dry, wet and vacuum cleaning modes. |
| Vision | Brochure describes CCD-based fiducial / mark recognition. |
| Power | AC 220 V ±10%, 50/60 Hz, 2.2 kW where stated; confirm the actual unit. |
Important: Figures are transcribed from the supplied brochure or technical sheet. They are model-document data, not a guarantee for a specific used machine.
Buyer decision guide
Evaluate GKG H900 for your line
The H900 document lists a 900 × 360 mm board maximum and a 900 × 400 mm optional range. Confirm whether the offered unit has the hardware for the optional envelope.
Running video confirmation
Request actual-unit running evidence
Before quotation, request a power-on demonstration of a representative print or dispensing cycle for the actual GKG H900.
Used-machine inspection
Inspection and export preparation
Review actual-unit evidence in two balanced workstreams before a quotation is issued.
Machine and configuration
- Nameplate and configurationModel, serial, voltage and installed options.
- Process hardwarePrinter or dispenser hardware, conveyor and relevant vision / cleaning configuration.
Use actual-unit evidence to separate brochure capability from the offered machine. Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Confirm packing evidence before export.
FAQ
Questions for buyers evaluating GKG H900.
What board range does the GKG H900 brochure state?
It records 900 × 360 mm maximum board size; 900 × 400 mm optional; optional ranges and the offered unit's tooling must be confirmed separately.
Does every documented option come with an offered GKG H900?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?
Ask for stencil, squeegee, support tooling, vision and cleaning-system evidence plus a sample print. Request unit-specific running proof; the static page image is not a test record.
Send your GKG H900 requirement
Share board dimensions, process needs, electrical requirements, destination and required inspection evidence.
