LC-300M-LF Lead-Free Touchscreen Dual-Wave Soldering System
LC-300M-LF is a lead-free wave-soldering system for through-hole soldering on a conveyed PCB. Its source document records 2 waves, a 50–300 mm PCB-width range and 1000 mm / 2 zones preheat. These are model-document values, not an offered-unit configuration guarantee.
How LC-300M-LF fits the process
LC-300M-LF is a lead-free wave-soldering system for through-hole soldering on a conveyed PCB. Its source document records 2 waves, a 50–300 mm PCB-width range and 1000 mm / 2 zones preheat. These are model-document values, not an offered-unit configuration guarantee.
The LC-300M-LF extends the recorded width range to 300 mm with two waves and a 1000 mm/two-zone preheat section; check real board support and process profile.
The stated conveyor-speed range is 0–2000 mm/min and the input is 3-phase, 5-wire, 380 V. Buyers should check board orientation, pallet clearance, flux/preheat compatibility and wave quality on an actual production sample before accepting the machine.
LC-300M-LF Technical Specifications
| PCB width range | 50–300 mm |
|---|---|
| Wave count | 2 |
| Preheat configuration | 1000 mm / 2 zones |
| Conveyor height | 750 ± 50 mm |
| Conveyor speed | 0–2000 mm/min |
| Input power | 3-phase, 5-wire, 380 V |
| Maximum installed power | 18 kW |
| Overall dimensions | 2900 × 1250 × 1600 mm |
| Approximate weight | 1000 kg |
Evidence to request before quote
The table describes the model. Confirm the offered machine with these actual-unit records:
- Nameplate, exact model, serial number and electrical input
- Installed controller/HMI, alarms and software access
- Visible mechanical condition and safety/interlock evidence
- Actual wave pot/nozzles and preheat/fluxing hardware
- Conveyor rails, width setting and transport direction
- Power-on, wave formation and representative soldered board
- Included accessories, isolation, export packing and loading proof

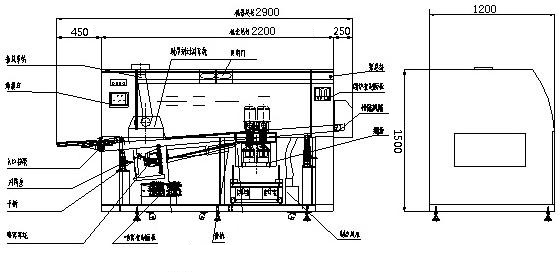

Source-recorded visual material
Each displayed image is retained as extracted from the supplied document. Select an image to view it larger.
Evaluate LC-300M-LF for your line
The LC-300M-LF extends the recorded width range to 300 mm with two waves and a 1000 mm/two-zone preheat section; check real board support and process profile.
Request actual-unit running evidence
Before quotation, request a power-on demonstration of preheat, wave formation, transport and a soldered sample for the actual LC-300M-LF.
Inspection and export preparation
Confirm the offered LC-300M-LF with actual-unit records before quotation.
Machine and process
- Nameplate and installed configurationRecord model, serial, voltage, controller and fitted options; the source table is not a unit inventory.
- Process hardwareInspect fluxing, preheat, wave pot/nozzles, conveyor rails, extraction and solder-contact results.
Keep source-document capabilities separate from actual-machine condition, installed options and test results.
Wave soldering versus reflow and selective soldering
Wave soldering uses a solder wave for exposed underside joints. Reflow soldering heats a solder-paste assembly, while selective soldering addresses chosen joints. Board layout, component thermal limits and required joint access decide which process needs evaluation.
Qualify flux coverage, preheat, conveyor support, solder alloy and wave contact on a populated board. Inspect solder-pot condition and maintenance access; do not choose a machine from nominal transport speed alone.
For LC-300M-LF, use the page’s PCB width range, Wave count, Preheat configuration entries as quotation checkpoints. Request evidence for the offered serial; published model data and reference images do not establish its installed options or stock.
Soldering equipment · What Should a Used Wave-Soldering First-Board Trial Include?
FAQ
Questions for buyers evaluating LC-300M-LF.
What PCB width does LC-300M-LF document?
The supplied technical table records 50–300 mm; fixture clearance and the actual rail setting must be checked.
Does every documented option come with an offered LC-300M-LF?
No. The source describes a model or possible configuration. Confirm the exact nameplate, installed hardware, software and accessories on the proposed unit.
What evidence should be requested before quotation?

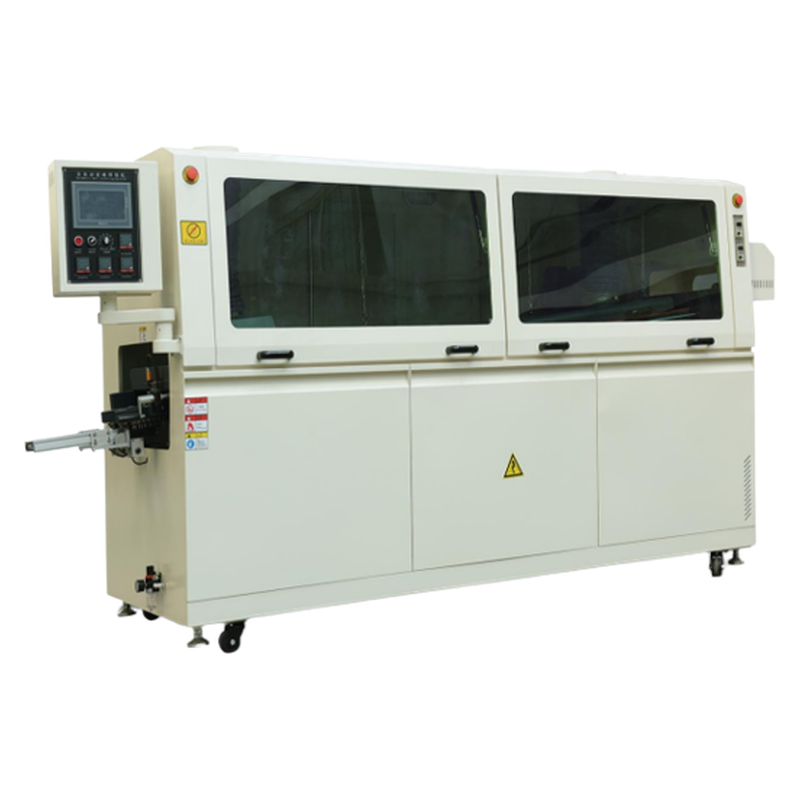

Inspect fluxing, preheat, wave pot/nozzles, conveyor rails, extraction and solder-contact results. Request unit-specific running proof; the static page image is not a test record.
