Standard board envelope
MH310
- PCB range
- 50 × 50 to 510 × 460 mm
- Machine dimensions
- 1020 × 1308 × 1611 mm
- Approximate mass
- 670 kg
- Rated power
- 2 kVA
- Illumination
- RGB+W; single-direction structured light
Home / Minghao SMT Machines / Minghao MH310
Manufacturer-reference buyer guide
OverviewMinghao MH310 3D SPI Family
Inline solder-paste inspection. Compare the standard, DH and long-board DL versions below before choosing the board envelope and installation footprint.
One family · configuration choices
Compare MH310 versions
Inline solder-paste inspection. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Different conveyor / board envelope
MH310DH
- PCB range
- 50 × 50 to 510 × 275 mm / 510 × 600 mm; confirm operating mode
- Machine dimensions
- 1020 × 1510 × 1611 mm
- Approximate mass
- 1100 kg
- Rated power
- 2.5 kVA
- Illumination
- RGB+W; single-direction structured light
Long-board configuration
MH310DL
- PCB range
- 50 × 50 to 1200 × 460 mm
- Machine dimensions
- 2320 × 1410 × 1611 mm
- Approximate mass
- 1200 kg
- Rated power
- 2.5 kVA
- Illumination
- RGB+W; multi-direction structured light shown as optional in the source
What the versions share
- PCB thickness
- 0.5–6 mm
- Component clearance
- 40 mm top / 40 mm bottom
- Camera
- 5 MP
- Resolution
- 15 µm
- Published cycle
- 0.3 s/FOV

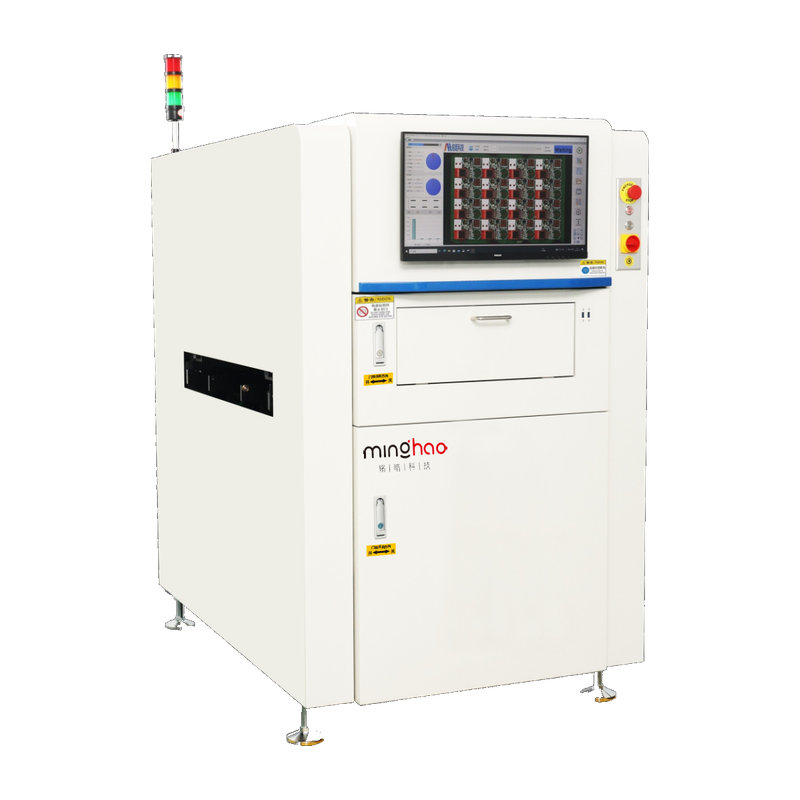

Translated from the manufacturer brochure, pages 2, 3, 4, 5, 6. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. One brochure family illustration; it is not separate proof of the DH or DL chassis. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Minghao MH310 Standard Configuration
| PCB thickness | 0.5–6 mm |
|---|---|
| Component clearance | 40 mm top / 40 mm bottom |
| Camera | 5 MP |
| Resolution | 15 µm |
| Published cycle | 0.3 s/FOV |
| PCB range | 50 × 50 to 510 × 460 mm |
| Machine dimensions | 1020 × 1308 × 1611 mm |
| Approximate mass | 670 kg |
| Rated power | 2 kVA |
| Illumination | RGB+W; single-direction structured light |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Minghao MH310 unit.
Key Features
Confirm the Selected Version
Board capacity, camera, lighting, cabinet size and power follow the selected version. Ask for a nameplate, configuration list and sample-board inspection result; a shared brochure photograph is not proof of an individual machine.

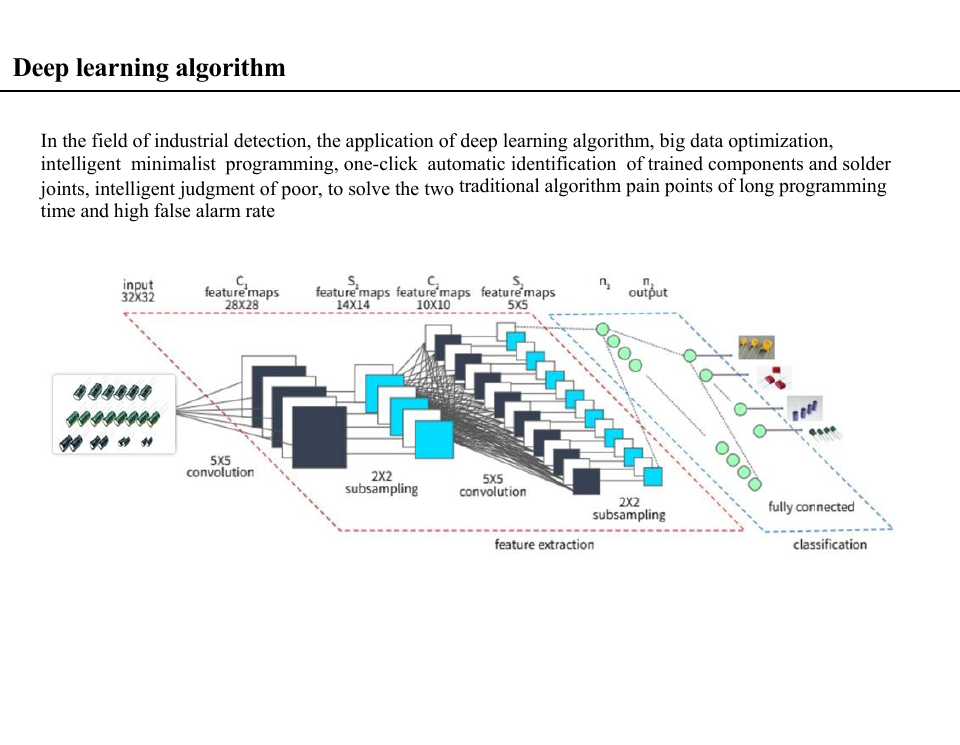

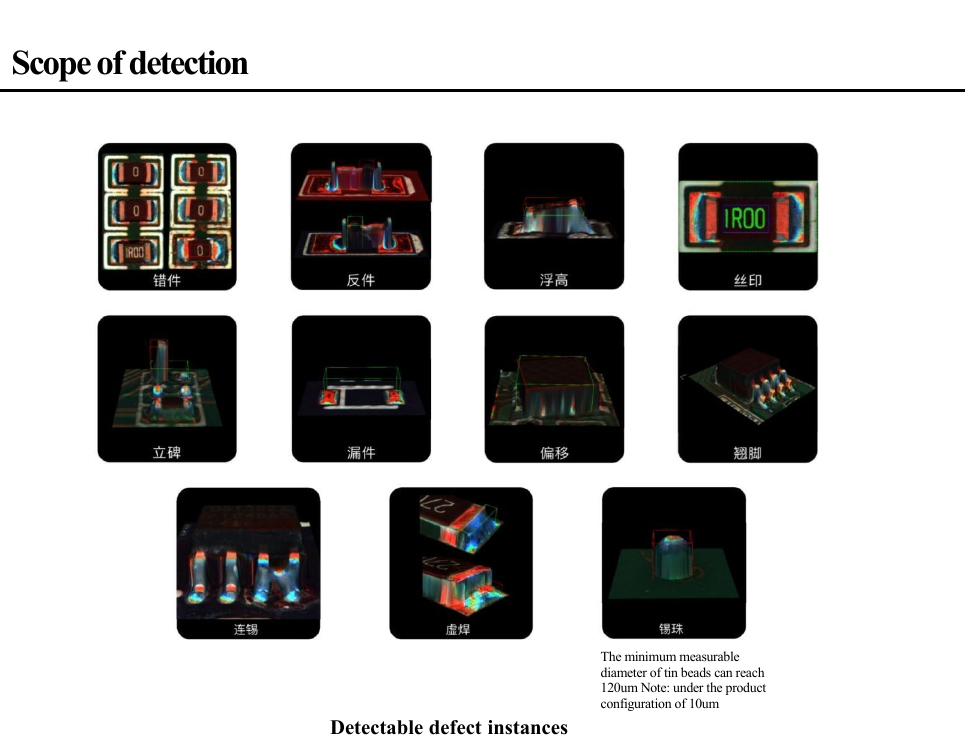

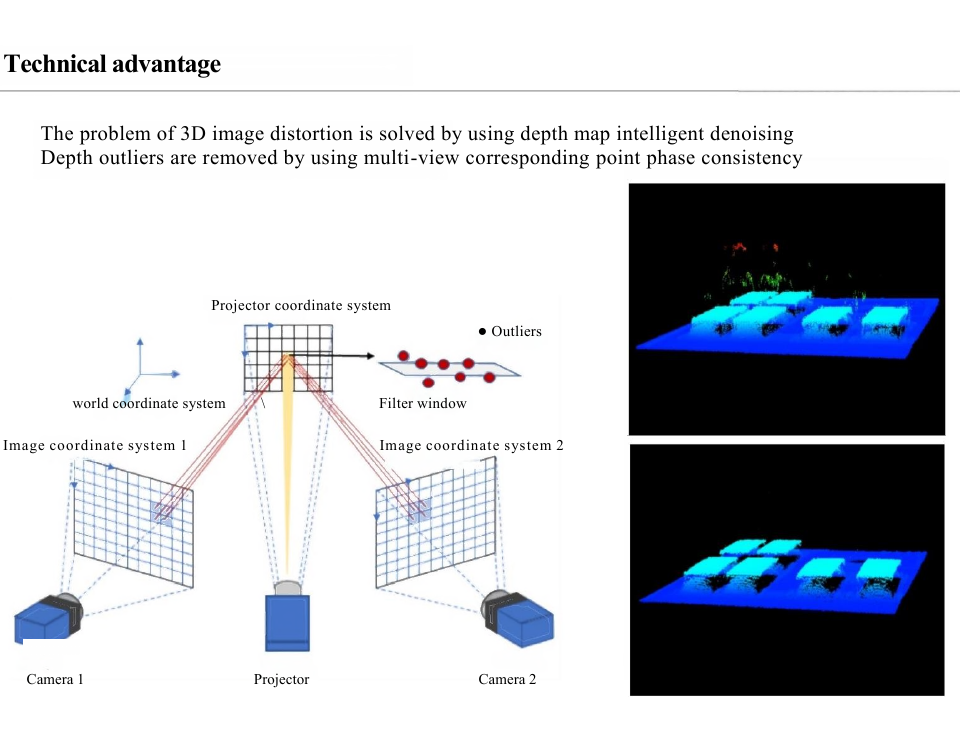

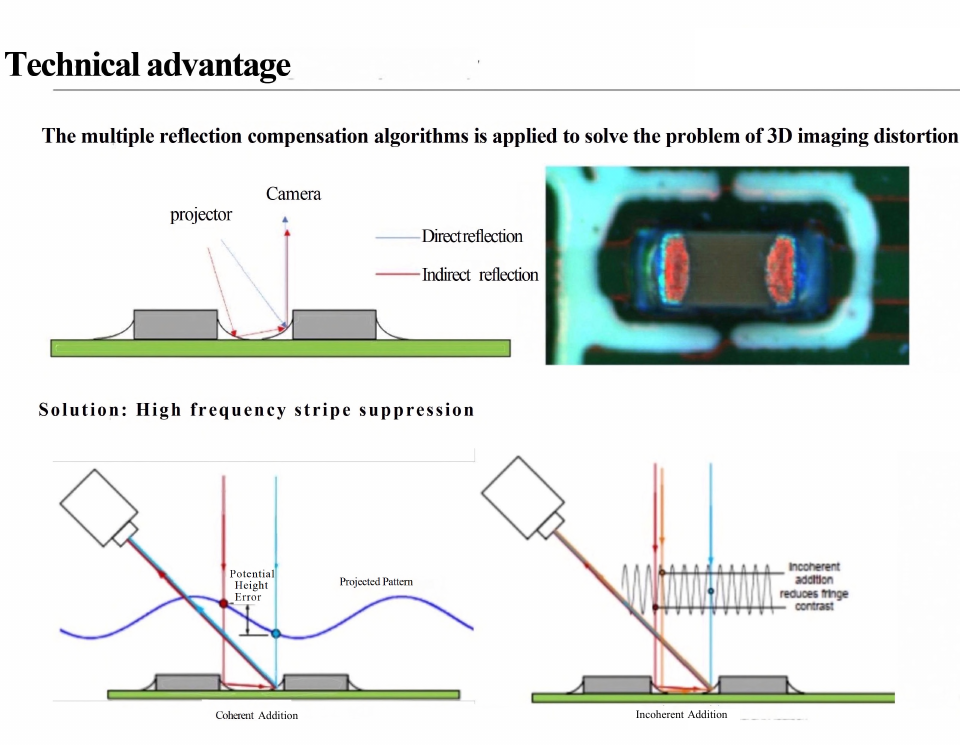

Model focusInspection roleInline solder-paste inspection Workflow capabilityThe source material lists neural-network/image comparison functions, code recognition, mixed-board support and SPC output across this product family where stated. Line integrationConfirm the applicable SMEMA interface, conveyor configuration and width-adjustment method for the machine under review. Evidence boundaryPublished model information is planning input, not a substitute for application validation, calibration records or a live inspection result.
Why MH310 Fits an Inspection Shortlist
MH310 is the standard-width member of the 310 family, aimed at routine inline inspection where the documented 510 × 460 mm board range is the first capacity check.
Buyer decision guide
When Minghao MH310 Makes Sense — and When It May Not
Minghao MH310 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Minghao MH310
Check printed solder-paste deposits before placement: height, area, volume and position must be evaluated against the PCB stencil design and the actual inspection program. Confirm acceptance limits and measurement calibration using the buyer’s sample board.
Before quotation
Three Minghao MH310 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Does the required board range fit the documented 50 × 50 mm to 510 × 460 mm envelope for MH310?
Minghao MH310 buyers should confirm this with actual-machine evidence before quotation.
2
Which solder-paste height, area, volume and position limits must the inspection program check?
Minghao MH310 buyers should confirm this with actual-machine evidence before quotation.
3
Which software, line interface, calibration and running evidence is required before an equipment decision?
Minghao MH310 buyers should confirm this with actual-machine evidence before quotation.
Running video
Running Video Confirmation for Minghao MH310
Before a purchase decision, request a dated power-on and representative operating cycle for the actual unit, including relevant transport, motion, inspection and visible-condition evidence.
- Power-on and HMI response
- Board transfer and inspection cycle
- Representative defect-result review
Used-machine inspection
Inspection and Export Preparation for an Actual Minghao MH310
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Optical inspection hardwareCamera image quality, lighting uniformity, conveyor condition and calibration relevant to the inspection task.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Minghao MH310 Spare Parts Scope
Request a unit-specific Minghao MH310 list for cameras, light sources, conveyor belts, sensors, filters and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, inspection stage, throughput target, calibration evidence, voltage, destination, required accessories and desired inspection evidence for the proposed Minghao MH310.
Solder paste inspection versus assembly AOI
SPI evaluates solder-paste deposits before component placement. Assembly AOI evaluates visible features after placement or soldering, so an AOI station is not an automatic substitute for paste-height or volume measurement.
Use representative deposits and known print defects to review the fitted sensor, measurement repeatability and board support. Confirm calibration tooling, software, traceability and any licensed feedback interface before purchase.
For Minghao MH310, use the page’s PCB thickness, Component clearance, Camera entries as quotation checkpoints. Request evidence for the offered serial; published model data and reference images do not establish its installed options or stock.
