SIPLACE CP20P DP drive

The supplier calls this CP20P DP drive reference 03102532. The photograph shows a compact assembly with a flex connection and circuit board. Keep the complete installed label and drawing with an enquiry; the shortened catalogue reference cannot resolve every ordering suffix.

Selected part reference

03102532

Request quote View details

Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.

Variant galleryPart-specific views

03102532 source reference

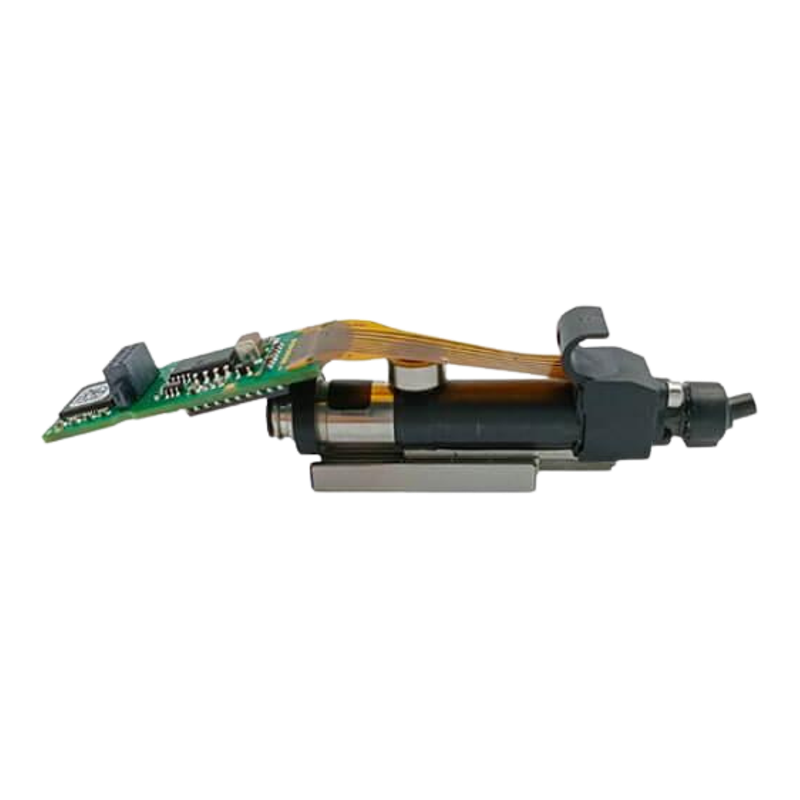

03102532 / Supplier CP20P DP-drive reference. The complete flex/board outline is retained; this picture does not establish a full ordering revision, test result or installed compatibility. — Supplier CP20P DP-drive reference. The complete flex/board outline is retained; this picture does not establish a full ordering revision, test result or installed compatibility.

Model: 03102532 source reference
Part code: 03102532
Fit: Confirm by unit

01 / Select precisely

Part details

Check the complete part number and the details needed to match your machine.

Part identification and matching information
Model	Part number	Compatibility	Details and checks
03102532 source reference	03102532	Supplier describes a CP20P DP drive. The complete ordering suffix/revision and installed-head fit are unresolved; the base reference alone is not a replacement approval.	Catalogue reference: 03102532 Supplier description: DP drive CP20P Visible scope: Compact assembly with flex and board Full revision / replacement approval: Not established

02 / Check before ordering

Match the installed part

Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.

Record every suffix and revision from the installed assembly; retain 03102532 only as the source reference shown here.
Identify the exact head/machine configuration and original fault record.
Clarify which mechanical, flex and electronic components are included in the offer.
Require the proposed complete code and agreed assessment scope before accepting the quote as a match.

03 / Make a useful decision

Selection and replacement advice

Compare a complete assembly with a component-only repair by the actual supplied scope and assessment. Do not read DP drive as proof that a generic cabinet servo amplifier can replace the photographed component. Ask for actual-item identification, flex/connector condition and the applicable replacement relationship to the installed assembly. If a supplier quotes a longer code, keep it as a separate proposed identity until the relevant service documentation establishes the match.

04 / Care and handling

Maintenance and handling guidance

Retain connection and routing photographs before authorised service. Do not bend or pull a flex connection to inspect an inaccessible label.

Use the applicable handling and service procedure for the complete assembly. No generic lubrication, electrical test or adjustment method is inferred from its catalogue name.

Before you ask

Questions about this part

Can an offer with another 03102532 suffix be accepted automatically?

No. Request its complete identification and the documented replacement relationship to the installed assembly. The shortened source reference is insufficient to approve a suffix change.
