Samsung CP45NEO servo driver

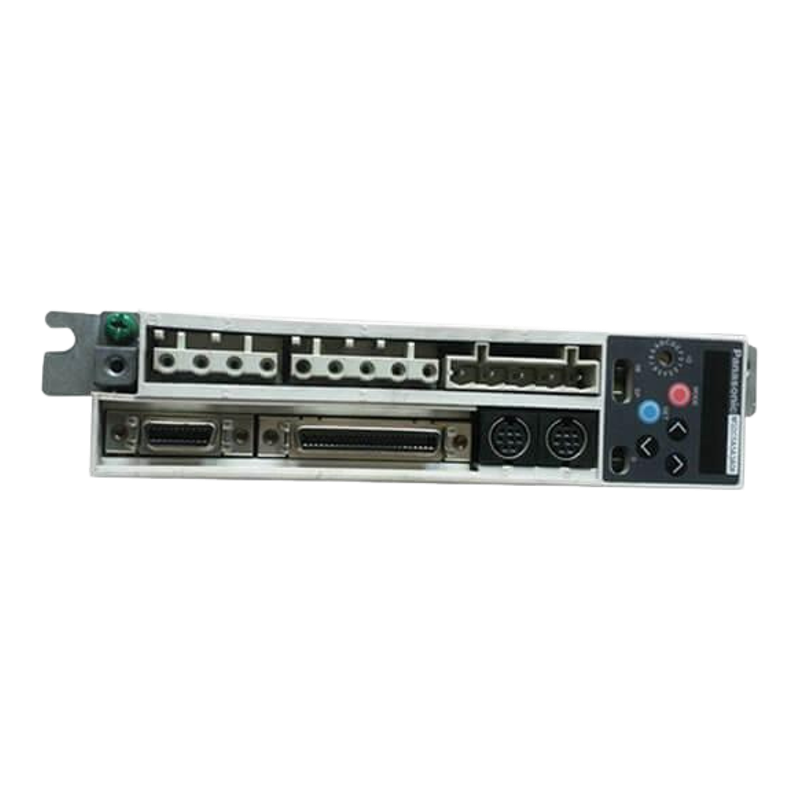

The supplier pairs J3153032A with MSDC5A5A3A06 for a Samsung CP45NEO Z-axis servo-driver reference. Preserve both identities and the actual machine configuration. The pictured front connectors do not establish wiring, parameters or a compatible motor.
Selected part reference
J3153032A / MSDC5A5A3A06
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
J3153032A / MSDC5A5A3A06
- Model
- J3153032A / MSDC5A5A3A06
- Part code
- J3153032A / MSDC5A5A3A06
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| J3153032A / MSDC5A5A3A06 | J3153032A / MSDC5A5A3A06 | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Retain both J3153032A and MSDC5A5A3A06, plus the actual machine and axis identification.
- Request readable actual labels, revision details and the applicable replacement documentation.
- Define responsibility for configuration records, connection checks and machine-side acceptance.
- Clarify repair, exchange-core and return conditions separately from an untested component quotation.
03 / Make a useful decision
Selection and replacement advice
Compare an exact driver replacement, a documented revision alternative and a repair by their acceptance scope. Ask who retains the applicable parameter records and who verifies the actual axis after the agreed work. Do not copy settings from a similar-looking driver. A driver photograph cannot prove the associated feedback interface or establish a motor pairing. The listed CP45NEO reference is also separate from the SM-family EP06 / MDS references in the original research. Require the machine-side replacement basis rather than a shared Samsung label.
04 / Care and handling
Maintenance and handling guidance
Keep the original alarm record and existing configuration history with the qualified service team. Removing a driver does not establish that it caused the axis fault.
Follow the applicable electrical isolation and service instructions. This page supplies no connector pinout, discharge waiting time or parameter recipe.
Before you ask
Questions about this part
Can this driver be paired with the motor shown elsewhere in the catalogue?
No pairing is established by catalogue proximity. Use the actual motor, amplifier and machine documentation for the required combination.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
