JUKI / SMT spare parts
JUKI FX-1R nozzle rod
The supplier describes 40024338 as an FX-1R nozzle rod. Confirm whether the required purchase is a rod, housing or complete assembly.
Selected part reference
40024338
Source-listed reference. Exact fit, condition and availability require confirmation.
40024338
- Model
- 40024338
- Part code
- 40024338
- Fit
- Confirm by unit
Photographs are bound to the selected part number. Reference images do not establish current inventory or interchangeability.
01 / Select precisely
Compare the family variants
Compare the complete part numbers, revisions and documented specifications. Similar appearance does not establish interchangeability.
| Variant | Part number | Compatibility | Specifications |
|---|---|---|---|
| 40024338 | 40024338 | Supplier-listed reference only. Exact installed fit, revision and offered-item identity require confirmation. |
|
Understand this reference
Application and identification

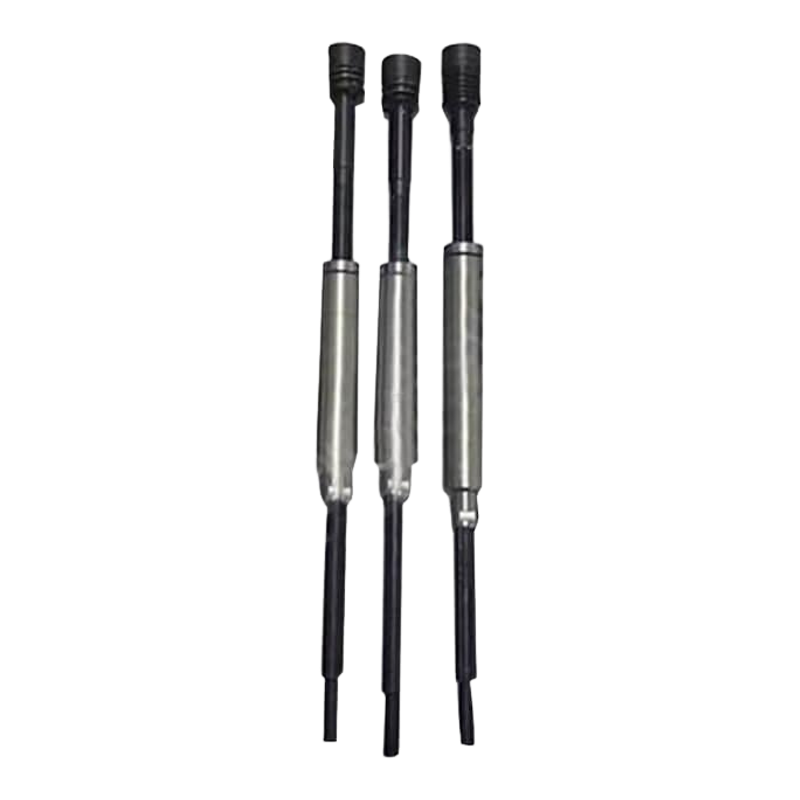

This supplier uses “nozzle rod” for 40024338, while other catalogue descriptions may use housing or assembly terminology. Keep the code and the exact requested contents together instead of treating those nouns as identical. The photograph shows several pieces, but it does not establish whether an actual offer supplies one piece, a kit or a matched set.
02 / Check before ordering
Match the installed part
The family page groups related variants; it does not imply that variants are interchangeable.
- Confirm the machine and full 40024338 code against the applicable parts reference.
- Resolve rod, housing and complete-assembly terminology in the quotation.
- State quantity explicitly; the number of pieces in this catalogue image is not an offer.
03 / Make a useful decision
Selection and replacement advice
Ask the responsible service team to identify the required ordering scope and the seller to itemise what is included. A housing-only and a complete rod assembly quotation are not comparable merely because both mention FX-1R. For used or serviced items, obtain the offered item’s identity, condition declaration and relevant inspection record. Packaging protection and receiving checks should address the actual slender assembly rather than a generic box count.
04 / Care and handling
Maintenance and handling guidance
Keep each removed item identified when several similar rods are handled during a service job.
Follow the applicable machine service instructions; no alignment, lubricant or wear criterion is established by the catalogue.
04 / Trace every claim
Sources, photos and condition
- JUKI FX-1R nozzle rod 40024338 · Single-code supplier listing and reviewed catalogue illustration only. No offered-item identity, OEM authenticity, installed fit, current stock or unlisted performance is established.
Stock, authenticity, condition, test results and interchangeability require separate evidence. A family photograph cannot prove them.
05 / Before you ask
Questions about this family
Does the photograph mean a three-piece set?
No. It is a grouped reference image; ordered quantity and kit scope need explicit agreement.
Are rod and housing interchangeable descriptions?
Do not assume so. Confirm the code and delivery contents with the responsible service team and seller.
Are the visible rods tested?
No test of current offered goods is evidenced by this reference.
06 / Keep the variant in context
Prepare a precise inquiry
Choose the complete part number and quantity, then open our inquiry form. Machine model, revision and installation evidence remain essential for matching.
