JUKI 40001137 nozzle rod

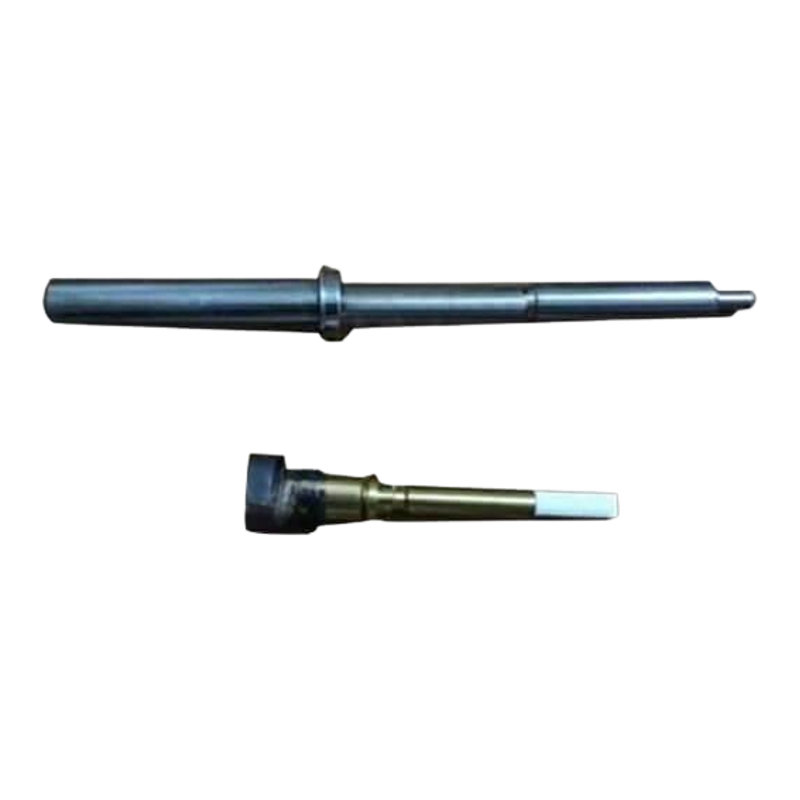

The supplier labels 40001137 as a JUKI 2050 / 2060 nozzle rod. Its photograph contains two mechanical pieces. Confirm the quoted contents against the parts drawing; the photograph alone does not define a complete housing or shaft kit.
Selected part reference
40001137
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
40001137
- Model
- 40001137
- Part code
- 40001137
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| 40001137 | 40001137 | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Identify the required drawing position before deciding whether the offer is for a rod, housing or complete assembly.
- Keep 40001137 separate from neighbouring inner-shaft and outer-shaft codes.
- Ask for an itemised contents list and photographs of the actual mating ends and retained hardware.
- Agree the inspection and assembly responsibility, including how an unresolved fit will be handled.
03 / Make a useful decision
Selection and replacement advice
Compare the requested rod or housing with a complete mechanism repair by the components actually supplied. An inner shaft, an outer shaft and the housing around them have different ordering identities. A quote for one cannot be compared directly with a kit containing several. The original family references include 40001178, 40001179 and 40001142. They are separate listed parts, not alternative spellings of 40001137. Ask which drawing position is being replaced and which mating parts will be retained. Do not estimate fit or length from image scale.
04 / Care and handling
Maintenance and handling guidance
Keep the original symptom, removed-part identity and orientation record together during authorised service. A visible mark does not establish which mating component needs replacement.
Use the applicable mechanism instructions for cleaning, lubrication and assessment. No generic grease, clearance or straightness limit is assigned by this catalogue reference.
Before you ask
Questions about this part
Are the nearby 40001178 and 40001179 codes substitutes?
No equivalence is established. They identify different listed shaft references; match the drawing position and required assembly contents.
