JUKI 40053295 Y-axis motor

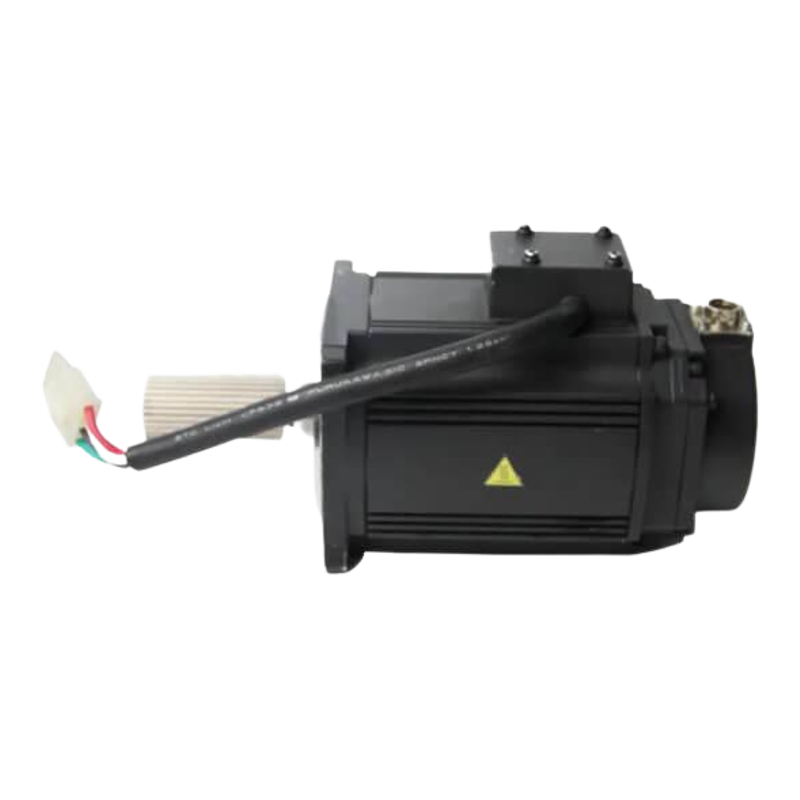

The supplier lists 40053295 / HCRP153DS2 as a JUKI 2070 / 2080 Y-axis motor. Its reference photograph shows the motor and attached leads. Order from the complete installed identity and axis documents; the photograph does not establish the offered label or drive pairing.
Selected part reference
40053295
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
40053295
- Model
- 40053295
- Part code
- 40053295
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| 40053295 | 40053295 | Listed reference; confirm the full actual identity and applicable machine documents. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Match the complete motor designation, machine reference and Y-axis position; retain every suffix.
- Record both connector ends and whether the pictured leads are actually included.
- List retained and supplied pulleys, brackets or couplings separately.
- Require a documented drive/feedback combination and agreed machine acceptance responsibility.
03 / Make a useful decision
Selection and replacement advice
Keep the machine-side 40053295 code and the complete manufacturer designation together. The original family research writes HC-RP153D-S2, while the photographic listing removes the punctuation. Verify the actual label rather than treating every similar suffix as a replacement. A Y-axis motor should not be substituted for the separately listed X-axis or T-axis motor because they appear in the same family. Compare a bare motor with a supplied assembly by its leads, connectors and retained mechanical hardware. Record which pulley, bracket or coupling belongs to the purchase and which will remain on the machine. Ask the responsible service team to check the applicable feedback and amplifier combination, and agree the installation and acceptance scope before comparing prices.
04 / Care and handling
Maintenance and handling guidance
Retain the installed axis identity and original symptom before qualified service disconnects the motor. A motor alarm alone does not establish which component failed.
Use the applicable machine and motor instructions for handling and assessment. This catalogue reference specifies no wiring pinout, voltage, torque or setup value.
Before you ask
Questions about this part
Is the separately listed 40050244 X motor an alternative?
No equivalence is established. X, Y and T ordering identities refer to different proposed axis applications; use the actual machine documents.
