JUKI / SMT spare parts
JUKI E30067250A0 shaft assembly
A supplier-described Z slider shaft assembly. Compare the complete assembly scope with a bare-shaft quotation before arranging a replacement.
Selected part reference
E30067250A0
Source-listed reference. Exact fit, condition and availability require confirmation.
E30067250A0
- Model
- E30067250A0
- Part code
- E30067250A0
- Fit
- Confirm by unit
Photographs are bound to the selected part number. Reference images do not establish current inventory or interchangeability.
01 / Select precisely
Compare the family variants
Compare the complete part numbers, revisions and documented specifications. Similar appearance does not establish interchangeability.
| Variant | Part number | Compatibility | Specifications |
|---|---|---|---|
| E30067250A0 | E30067250A0 | Supplier-listed reference only. Exact installed fit, revision and offered-item identity require confirmation. |
|
Understand this reference
Application and identification

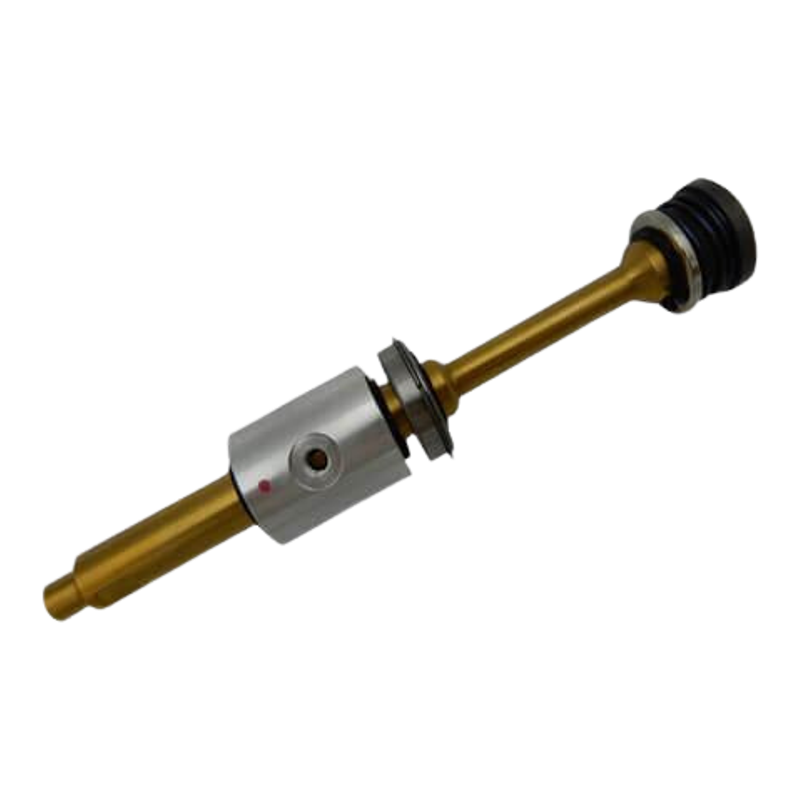

The supplier calls E30067250A0 a Z slider shaft assembly. The photograph shows attached features as well as the shaft, so a quotation for a bare rod may describe a different delivery. This retained catalogue entry does not establish the dimensions, service condition or installed machine position. The ordering code remains more useful than the generic phrase “JUKI nozzle shaft.”
02 / Check before ordering
Match the installed part
The family page groups related variants; it does not imply that variants are interchangeable.
- Match the full E30067250A0 reference to the applicable installed assembly record.
- Specify assembly versus bare shaft and ask for the offered contents in writing.
- Request the service team’s required dimensional or functional acceptance basis before discussing replacement alternatives.
03 / Make a useful decision
Selection and replacement advice
State whether the repair requires the assembly as documented or a separately identified subpart. Ask the seller to name every included feature and show the offered item, including both ends and mounting details. Compare a new or serviced assembly only after the seller declares its actual condition and inspection basis. A catalogue reference and a seller’s assertion of smooth movement do not establish measured straightness or installed performance.
04 / Care and handling
Maintenance and handling guidance
Retain the removed assembly identity and the observed motion symptom separately from a confirmed fault diagnosis.
Do not derive lubricant, alignment, clearance or disassembly settings from this illustration; use the relevant service instructions.
04 / Trace every claim
Sources, photos and condition
- E30067250A0 Z SLIDER SHAFT ASM for SMT Juki Machine · Single-code supplier listing and reviewed catalogue illustration only. No offered-item identity, OEM authenticity, installed fit, current stock or unlisted performance is established.
Stock, authenticity, condition, test results and interchangeability require separate evidence. A family photograph cannot prove them.
05 / Before you ask
Questions about this family
Is the attached block automatically included?
The reference shows it, but the actual quotation must list its contents.
Does the reference prove a shaft is straight?
No. Actual inspection method and results must be supplied separately.
Can E3051729000 be substituted?
No interchangeability is established; it is a different ordering reference.
06 / Keep the variant in context
Prepare a precise inquiry
Choose the complete part number and quantity, then open our inquiry form. Machine model, revision and installation evidence remain essential for matching.
