Panasonic / SMT spare parts
Panasonic ball-spline references
A supplier ball-spline listing names N510064708AA, N510037999AA and N510069637AA under CM402 / CM602 wording. NPM application and code equivalence remain unresolved.
Selected part reference
Ball Spline
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
Ball-spline family reference
N510064708AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
N510037999AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
N510069637AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
- Model
- Ball-spline family reference
- Part code
- Ball Spline
- Fit
- Confirm by unit
01 / Select precisely
Compare the family variants
Compare complete part numbers, revisions and matching information.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|

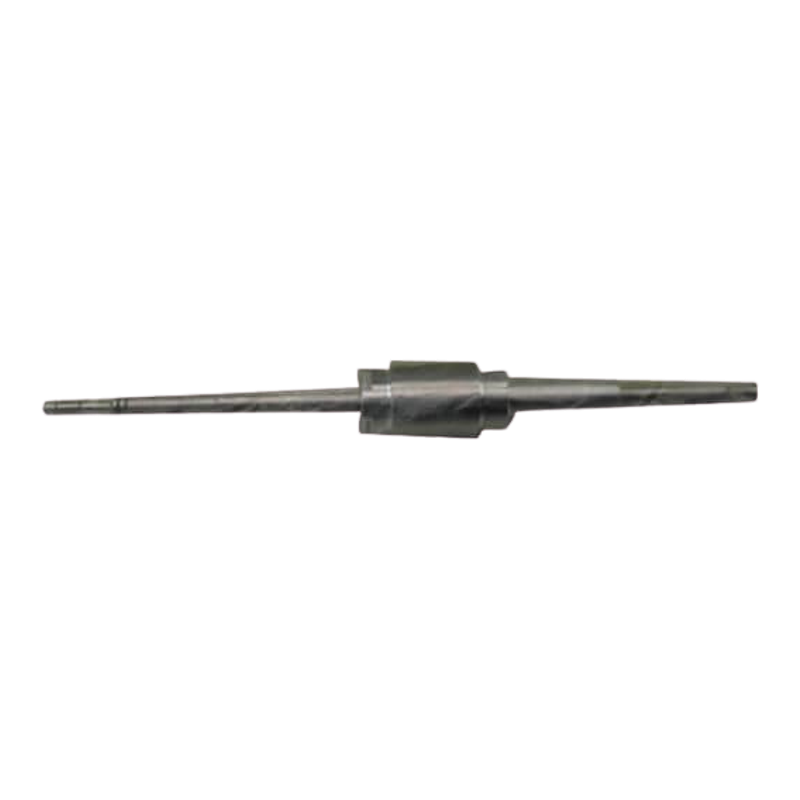

| Ball-spline family reference | Ball Spline | Unmarked family reference; no exact code is assigned to this photograph. |
|
| N510064708AA | N510064708AA | Separately listed designation; platform conflict and exact configuration unresolved. |
|
| N510037999AA | N510037999AA | Separately listed designation; no matched photograph or substitution approval. |
|
| N510069637AA | N510069637AA | Separately listed designation; no matched photograph or substitution approval. |
|
Application and identification
Use and ordering context
A ball-spline reference can appear in catalogue groups with conflicting platform labels. The available product information uses CM402 / CM602 wording, while an NPM requirement must be assessed independently. The unmarked shaft photograph cannot decide that conflict. Preserve the complete order reference, actual head and installation position instead of selecting a platform from a search-result heading.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Identify the installed machine, head and shaft position, then retain the complete parts-list reference.
- Obtain the relevant drawing and included-component list; do not measure functional dimensions from the photograph.
- Keep each proposed alternative and its application evidence on a separate comparison line.
03 / Make a useful decision
Selection and replacement advice
Compare a bare shaft, a shaft with its mating element and a more complete head assembly as different purchases. Similar external length does not establish spline geometry, travel or included parts. Request the applicable assembly drawing and the exact offered scope. Where a seller proposes a replacement code, ask what documents connect it to the installed requirement. Do not infer an NPM upgrade or a common fit from an overlapping part-number list.
04 / Care and handling
Maintenance and handling guidance
Record the observed motion issue and technician findings before identifying a replacement assembly.
Protect the identity of removed and replacement pieces so similar shafts are not mixed during service.
Use the exact assembly instructions for lubrication, handling and acceptance; no universal ball-spline grease or clearance is specified.
Before you ask
Questions about this part
Is N510064708AA confirmed for NPM here?
No. The retained supplier heading uses CM402 / CM602; resolve the actual application with the relevant parts evidence.
Does the image identify one of the three listed codes?
Its markings are not readable enough to make that assignment. It remains a family illustration.
Does a ball-spline quote include mating parts?
That depends on the stated delivery scope. Require an itemised description instead of assuming a complete assembly.
