Panasonic N510042739AA Z motor

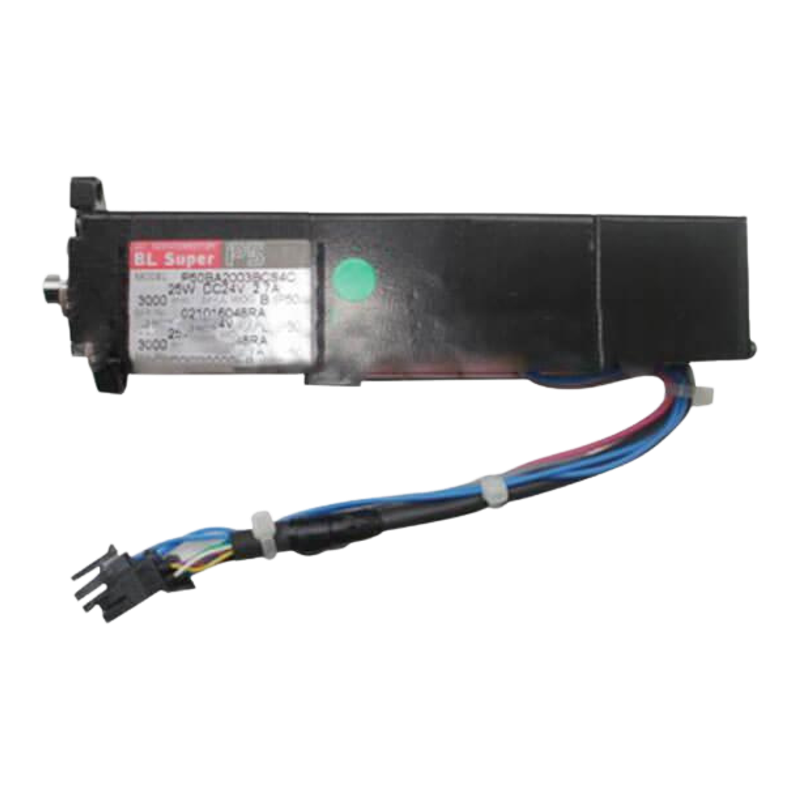

The retained supplier page lists N510042739AA as a DT401 Z-axis motor. Other catalogue references associate that code with CM machines. The complete motor and cable are visible, but actual application and manufacturer-label suffix must be matched independently.
Selected part reference
N510042739AA
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
N510042739AA
- Model
- N510042739AA
- Part code
- N510042739AA
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| N510042739AA | N510042739AA | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Resolve the DT401 versus CM application descriptions against the actual machine and axis documents.
- Read the complete offered motor-label designation and suffix; do not order from the shortened N510 reference alone.
- List included leads, connectors and mechanical accessories, and identify anything reused from the removed item.
- Require the applicable motor/amplifier combination and the agreed installation and acceptance responsibility.
03 / Make a useful decision
Selection and replacement advice
Keep the machine-side ordering reference and the complete motor-label designation together. A catalogue association with MTNM000237AA or KXF0DGFAA00 is not an OEM supersession record. Ask for the applicable machine documents before accepting a different label suffix or host description. Compare a bare motor with an assembly including its leads, connectors, bracket or pulley. The quote should define retained hardware, feedback compatibility and the responsible commissioning work. A motor that can be mounted is not thereby approved for an existing amplifier or control setup.
04 / Care and handling
Maintenance and handling guidance
Retain motor, connector and axis identification before qualified service disconnects anything. Do not rotate, energise or change an unidentified assembly to investigate a label mismatch.
Follow the applicable machine and motor service instructions for handling and inspection. No supply voltage, torque, wiring pinout or setup value is specified by this reference.
Before you ask
Questions about this part
Do catalogue-associated ordering codes prove a drop-in replacement?
No. They are sourcing references. The actual motor label, suffix, mechanical scope and approved drive combination must still match the machine documents.
