Panasonic / SMT spare parts
Panasonic transport-belt references
The supplier groups N510050718AA, N510065133AA and N510061365AA with CM402 / CM602 / NPM belt wording. Keep installation position, dimensions and each order code separate.
Selected part reference
belt
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.

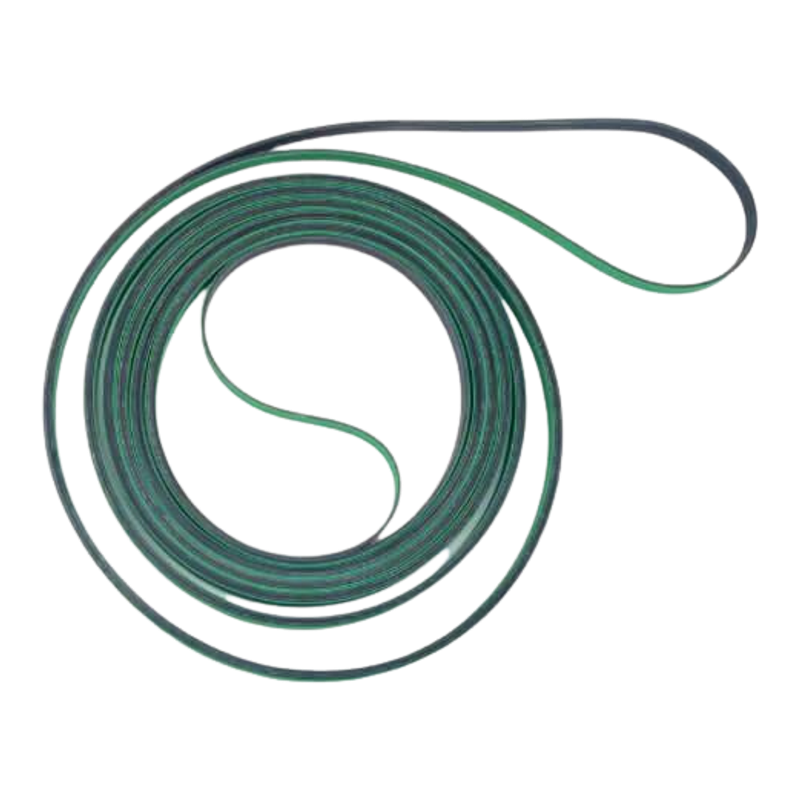

Belt family illustration
N510050718AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
N510065133AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
N510061365AA
Photo unavailable for this model. Confirm its code and request an exact-item photo.
- Model
- Belt family illustration
- Part code
- belt
- Fit
- Confirm by unit
01 / Select precisely
Compare the family variants
Compare complete part numbers, revisions and matching information.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| Belt family illustration | belt | Unmarked family illustration; not assigned to a particular order code. |
|
| N510050718AA | N510050718AA | Separately listed reference; exact pictured identity and substitution unresolved. |
|
| N510065133AA | N510065133AA | Separately listed reference; exact pictured identity and substitution unresolved. |
|
| N510061365AA | N510061365AA | Separately listed reference; exact pictured identity and substitution unresolved. |
|
Application and identification
Use and ordering context
The catalogue places several belt references under one platform heading. The coiled reference image does not map an individual loop to an order code. Nor does it establish whether two listed codes have the same length, width, section or installation position. Resolve the required location on the actual machine before comparing replacements.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Identify the machine, conveyor or axis position, and full installed order reference where available.
- Request the applicable length convention, width and section or tooth-profile description; do not compare unnamed dimensions.
- Clarify whether the price is for one belt, a matched group or another defined set, and whether installation items are included.
03 / Make a useful decision
Selection and replacement advice
A PCB transport belt, a toothed transmission belt and a head-axis belt address different functions. Do not accept a part merely because a seller calls it a Panasonic belt. Build the comparison around the machine parts reference, belt location and required geometry. If a seller quotes dimensions instead of an order code, retain that offer separately and request the technical basis for the proposed replacement. Never estimate loop length from the way a belt is coiled in a picture.
04 / Care and handling
Maintenance and handling guidance
Record the affected transport position and observed behaviour before a belt is removed.
Keep any technician findings about adjacent rollers, pulleys or alignment separate from the replacement belt identity.
Follow the actual machine instructions for replacement and adjustment; no tension, tracking or lubrication setting is prescribed here.
Before you ask
Questions about this part
Do the three listed references mean the same belt?
No equivalence is established. Their installation positions and geometry require separate confirmation.
Can the photograph be used to measure a belt?
No. It is a coiled, unscaled reference and does not establish useful dimensional data.
Does a belt-only quote include a complete repair?
Not automatically. Define the delivered parts and the separate installation and acceptance responsibilities.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
