Panasonic nozzle holder
N610113699AA is listed as a Panasonic nozzle holder. Supplier application labels are inconsistent: the retained page names CM402 / CM602, while another source names NPM H16. Resolve the actual head and assembly reference before selecting a replacement.
Selected part reference
N610113699AA
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
N610113699AA
- Model
- N610113699AA
- Part code
- N610113699AA
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| N610113699AA | N610113699AA | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Resolve the CM402 / CM602 versus NPM H16 application labels against the actual head documents.
- Keep N610113699AA and the installed assembly revision in the same enquiry.
- List the shaft, spring, gear and retaining parts that the quotation includes.
- Request inspection evidence for the actual offered holder and agree who will verify installed operation.
03 / Make a useful decision
Selection and replacement advice

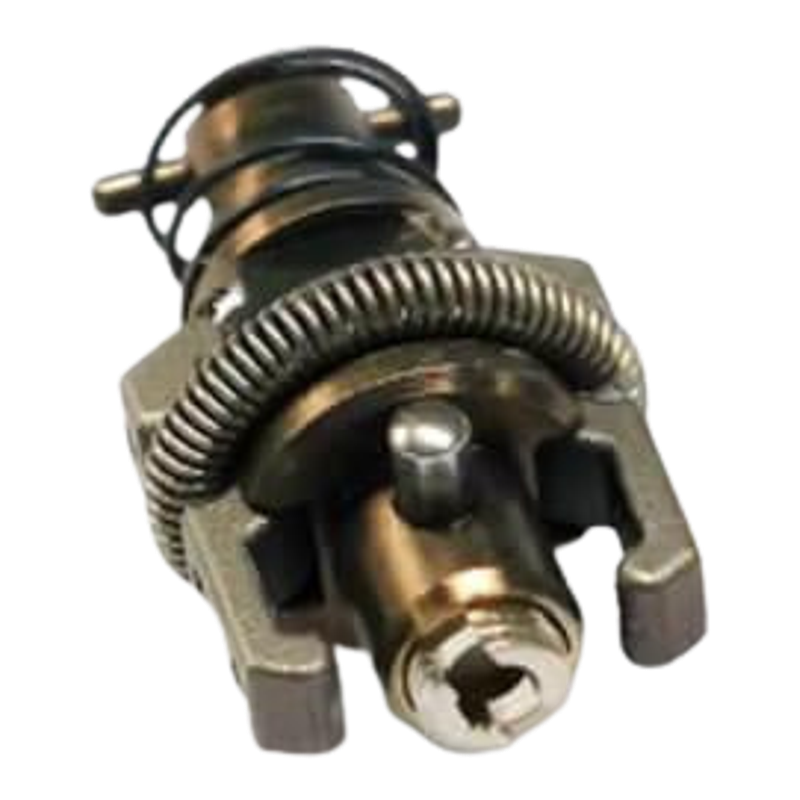

Use the complete part code and installed-head documents to resolve the application discrepancy. Do not combine the catalogue machine names into an approval for all those platforms. Ask for the actual assembly label and the relevant replacement or parts-drawing reference. Compare a holder-only quotation with one including a shaft, spring, gear or retaining hardware. Similar outside shapes do not establish identical working length, interfaces or service condition. The single-holder photograph is an identification aid; it supplies neither a dimensional drawing nor an installed test.
04 / Care and handling
Maintenance and handling guidance
Retain the observed holder or shaft symptom separately from a general nozzle-cleaning complaint. The fault record should identify which mechanism and position were assessed.
Follow the applicable head service method for dismantling, lubrication and reassembly. No preload, movement force or replacement interval is assigned here.
Before you ask
Questions about this part
Can the different machine labels all be treated as compatible?
No. The conflicting descriptions need resolution using the actual head, assembly code and applicable parts documentation.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
