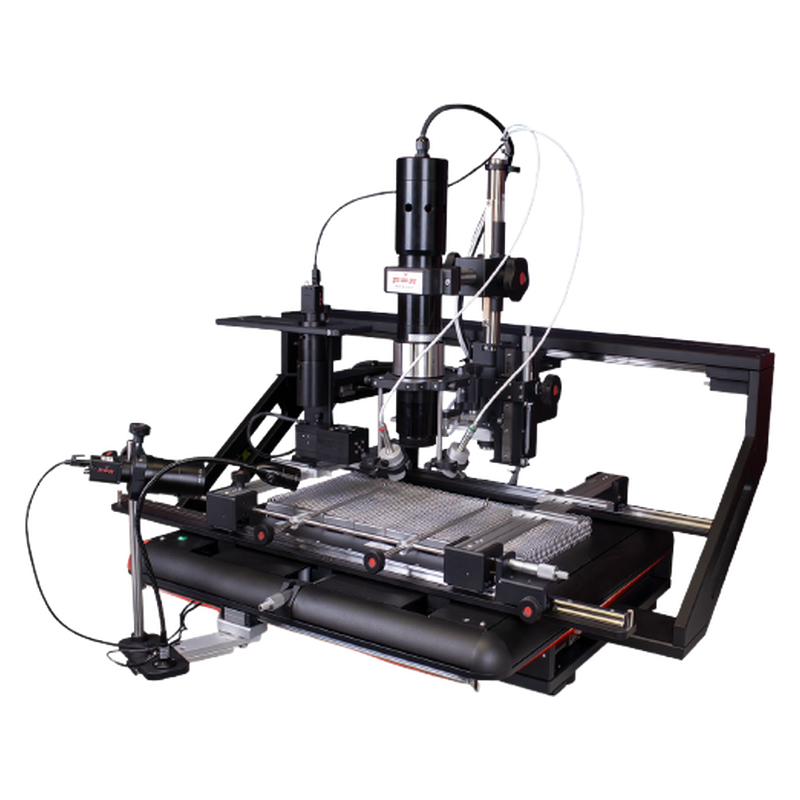

OverviewPDR IR-E6 Infrared BGA Rework Station
The IR-E6 brings a focused infrared top heater, three-zone board preheat and split-beam optical alignment to large-board rework. Select a process from the actual board and package, then confirm the installed optics, fixtures and thermal controls on the offered station.
Manufacturer-published model data
PDR IR-E6 Technical Specifications
| Board and component | PDR lists a 460 × 620 mm maximum PCB and components up to 55 × 55 mm. |
|---|---|
| Heating | 150 W focused-IR top heater and 3,200 W three-zone medium-wave IR PCB preheater in PDR's model data. |
| Preheat area | 500 × 240 mm published PCB heating area; check the real assembly's thermal coverage. |
| Alignment | Split-beam prism alignment with 50× magnification; PDR publishes placement accuracy up to 10 µm under its conditions. |
| Temperature sensing | Four thermocouple channels; non-contact component IR sensor is listed. Confirm fitted sensors and calibration. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used PDR IR-E6 unit.
Key Features
Configuration Must Be Verified
The actual PDR IR-E6 quote should identify the heaters, prism optics, thermocouples, board support, optional camera/cooling, software, voltage and visible condition.
Buyer decision guide
When PDR IR-E6 Makes Sense — and When It May Not
PDR IR-E6 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for PDR IR-E6
PDR IR-E6 should be evaluated against the buyer’s board/package dimensions, thermal mass, alignment, support and profile evidence. The final application fit depends on the evidence for the specific unit.
Before quotation
Three PDR IR-E6 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What board size, package size and edge access does the rework job require?
PDR IR-E6 buyers should confirm this with actual-machine evidence before quotation.
2
Are the prism optics, thermocouples, board holder and optional camera/cooling present?
PDR IR-E6 buyers should confirm this with actual-machine evidence before quotation.
3
Can the offered unit show alignment, heating and recorded profiles on a representative board?
PDR IR-E6 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
PDR IR-E6 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- optical alignment, heater movement, thermocouple profile and component pickup/placement
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual PDR IR-E6
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted PDR IR-E6.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
PDR IR-E6 Spare Parts Scope
Request a unit-specific PDR IR-E6 list for heaters, optics, board holders, thermocouples, vacuum tools and maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide board and package sizes, thermal profile, optical accessories, utilities and destination, required accessories and desired inspection evidence for the proposed PDR IR-E6.
FAQ
Common questions for overseas buyers evaluating a PDR IR-E6.
01Heating
Is the board heater a single zone?
No. PDR lists three preheater zones for the IR-E6.
02Options
Is a side-view camera included?
It is described as optional; verify the offered station.
03Evidence
Is a brochure accuracy figure enough?
No. Check alignment calibration and a live trial on the target package.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular PDR IR-E6 unit.
Send Your PDR IR-E6 Production Requirement
Share board and package sizes, thermal profile, optical accessories, utilities and destination and inspection expectations. LCSMT can review whether an actual PDR IR-E6 configuration is a practical match.
