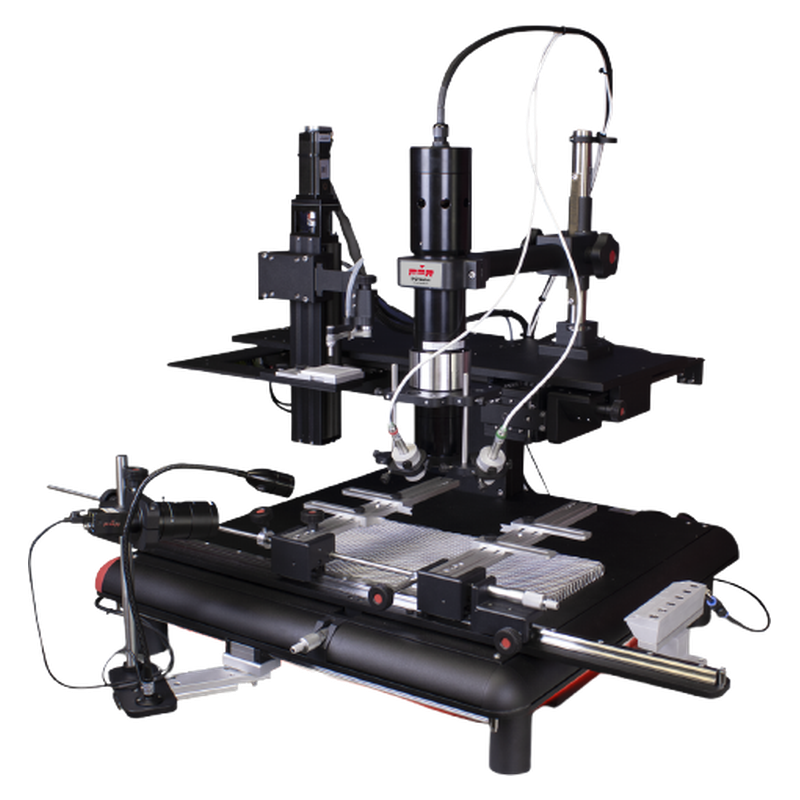

OverviewPDR IR-Q3 BGA Rework Station
The IR-Q3 is a semi-automatic rework station combining focused infrared heating, three-zone board preheat and split-beam optical alignment. Verify thermal control and placement on the actual unit, not only the model sheet.
Manufacturer-published model data
PDR IR-Q3 Technical Specifications
| Board and component range | Maximum PCB 300 × 450 mm; component size 1 × 1 mm to 55 × 55 mm in PDR's technical data. |
|---|---|
| Heating | 150 W focused infrared top heater with up to Ø70 mm spot; 2,800 W three-zone medium-wave PCB preheater. |
| Alignment | Split-beam prism alignment with up to 50× magnification; published placement accuracy up to 10 µm under manufacturer conditions. |
| Thermal sensing | Non-contact IR sensing for the component, wire thermocouple sensing for the PCB and four TC channels in the published specification. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used PDR IR-Q3 unit.
