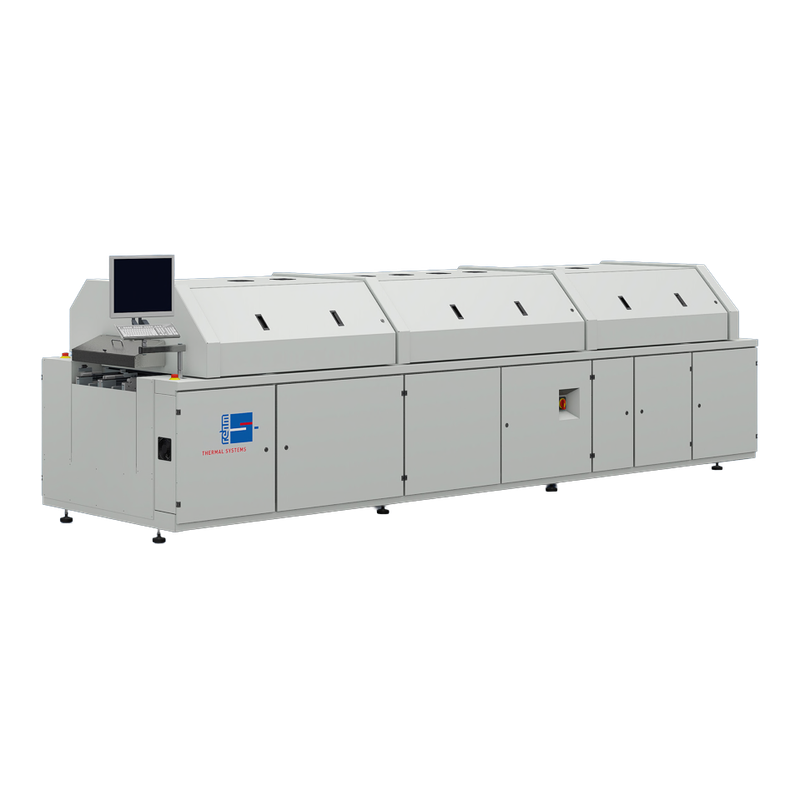

Representative brochure illustration
Legacy VisionXC
- Process
- Air or nitrogen by installed version
- Control
- Identify the actual controller and licensed software
- Boundary
- Do not assign current Nitro hardware to this reference chassis
Home / Rehm Equipment / Rehm VisionXC
Model guide · unit evidence required
OverviewRehm VisionXC Convection Reflow Oven
Rehm VisionXC is a modular convection reflow family. The legacy manufacturer brochure illustration represents the platform, not the installed configuration or cabinet of a current Nitro offer. Consider VisionXC when the board profile and line footprint fit a compact modular oven. Do not transfer current Nitro software or another Rehm platform's vacuum capability to a legacy VisionXC.
One family · configuration choices
Compare VisionXC versions
Move the supported PCB through preheat, peak and cooling zones while heated air or nitrogen transfers energy to the assembly. Qualify the loaded-board temperature profile, atmosphere and conveyor support together. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Later manufacturer nitrogen configuration
Current VisionXC Nitro
- Process
- Nitrogen convection
- Control
- ViCON touch described; fitted interfaces require confirmation
- Boundary
- Current MARS/FSM description is not proof of a legacy upgrade
What the versions share
- Process
- Convection Reflow Oven
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.
Manufacturer evidence checked 2026-10-06; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative VisionXC image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Rehm VisionXC Technical Specifications
| Legacy process-zone references | 422: 2,100 mm; 523: 2,450 mm; 634: 3,150 mm; 734: 3,500 mm; 834: 3,850 mm in the legacy brochure |
|---|---|
| Atmosphere boundary | Legacy air and nitrogen versions; the current Nitro brochure describes nitrogen operation |
| Transport | Single/dual lane and mesh-belt arrangements described; centre support is optional |
| Current nitro residue management | Seven-stage MARS and separate FSM cooling-zone condensate handling described by Rehm |
| Control-generation boundary | Current Nitro uses ViCON touch; do not assume it is installed on a legacy serial |
| Line interface | Current Nitro describes SMEMA and Hermes interfaces; confirm fitted interface and software |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Rehm VisionXC unit.
Key Features
Configuration Must Be Verified
The offer must identify VisionXC nameplate, air/Nitro generation, zone configuration, transport lanes, board support, cooling and residue-management hardware; Loaded-board thermal trace, oxygen log where fitted, conveyor tracking, exit temperature, flux access and recipe recovery.
Buyer decision guide
When Rehm VisionXC Makes Sense — and When It May Not
Rehm VisionXC selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Rehm VisionXC Acceptance Plan
Resolve the generation before quoting the oven
Ask for a VisionXC nameplate, serial and chamber layout before choosing a brochure table. The older manufacturer document lists several process-zone lengths and distinguishes air and nitrogen versions. The current Nitro brochure describes a later control and residue-management package. Keep these generations separate in an offer. Request the actual heating, cooling and transport configuration; a clean legacy reference illustration cannot establish current ViCON software, installed nitrogen hardware or a delivered centre support.
Qualify a supported loaded-board profile
Send the populated assembly envelope, loaded mass, underside protrusions and the paste process window with the enquiry. Agree board spacing and the difficult thermal locations for the acceptance trace. Demonstrate rail tracking and support through heating and cooling, then retain speed, loading and exit temperature with the record. Brochure throughput examples depend on stated board length and spacing; do not promote an example into a guarantee for a different assembly or mix it with a current Nitro cabinet.
Inspect atmosphere and residue handling together
If nitrogen is included, identify oxygen measurement, sensor calibration, gas flow and the actual chamber seals. Request safe isolated views of condensate collection, cooling and fan access before cosmetic cleaning. Check the fitted software, interface and recoverable recipes on the offered serial. BOYU and Dingjia provide independent Shenzhen whole-machine VisionXC enquiry channels, but neither was contacted. Require dated location, serial, maintenance and running evidence before treating either listing as available inventory or a verified service package.
Typical Applications
Typical Applications for Rehm VisionXC
Rehm VisionXC should be evaluated against the buyer’s move the supported pcb through preheat, peak and cooling zones while heated air or nitrogen transfers energy to the assembly. qualify the loaded-board temperature profile, atmosphere and conveyor support together. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Rehm VisionXC Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which legacy process-zone references requirement must the proposed Rehm VisionXC demonstrate?
Rehm VisionXC buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Rehm VisionXC offer: visionxc nameplate, air/nitro generation, zone configuration, transport lanes, board support, cooling and residue-management hardware?
Rehm VisionXC buyers should confirm this with actual-machine evidence before quotation.
3
Can the Rehm VisionXC acceptance run document loaded-board thermal trace, oxygen log where fitted, conveyor tracking, exit temperature, flux access and recipe recovery?
Rehm VisionXC buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Rehm VisionXC Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Rehm VisionXC. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Move the supported PCB through preheat, peak and cooling zones while heated air or nitrogen transfers energy to the assembly. Qualify the loaded-board temperature profile, atmosphere and conveyor support together.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Rehm VisionXC
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Rehm VisionXC.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Rehm VisionXC Spare Parts Scope
Request a unit-specific Rehm VisionXC list for version-correct conveyor and support parts, heaters and blowers, seals, condensate collectors, temperature references and licensed recipe backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, legacy process-zone references, installed configuration and destination, required accessories and desired inspection evidence for the proposed Rehm VisionXC.
FAQ
Common questions for overseas buyers evaluating a Rehm VisionXC.
01Application
Which production task suits Rehm VisionXC?
Move the supported PCB through preheat, peak and cooling zones while heated air or nitrogen transfers energy to the assembly. Qualify the loaded-board temperature profile, atmosphere and conveyor support together. Consider VisionXC when the board profile and line footprint fit a compact modular oven. Do not transfer current Nitro software or another Rehm platform's vacuum capability to a legacy VisionXC.
02Configuration
What should a buyer confirm for Rehm VisionXC?
VisionXC nameplate, air/Nitro generation, zone configuration, transport lanes, board support, cooling and residue-management hardware. Request the exact nameplate and option list.
03Unit evidence
Does this Rehm VisionXC illustration prove stock?
The Rehm VisionXC illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Rehm VisionXC unit.
Send Your Rehm VisionXC Production Requirement
Share target assembly, process requirements, legacy process-zone references, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Rehm VisionXC configuration is a practical match.
