OverviewViscom iS6059 SPI 3D Solder Paste Inspection
The Viscom iS6059 SPI uses top and angled views to measure solder or sinter paste deposits, with handling and closed-loop options for a documented printing process. Select the SPI configuration for paste deposits, not an iS6059 PCB AOI or wire-bond variant that shares a similar exterior.
Manufacturer-published model data
Viscom iS6059 SPI Technical Specifications
| Optical module | XM-SPI-II; one orthogonal and four angled cameras |
|---|---|
| Z resolution / range | 0.1 micrometre / up to 5 mm |
| Orthogonal resolution / fov | 12 micrometres / 58 × 58 mm |
| Published inspection speed | Up to 90 square centimetres per second |
| Pcb envelope | 508 × 508 mm; optional longboard length up to 720 mm |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Viscom iS6059 SPI unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact SPI sensor, board handling, longboard/dual-lane options and software interfaces; Reference deposits, review data, complete handling cycle and closed-loop handshake.
Buyer decision guide
When Viscom iS6059 SPI Makes Sense — and When It May Not
Viscom iS6059 SPI selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Viscom iS6059 SPI Acceptance Plan
Name SPI explicitly in the enquiry
Specify iS6059 SPI with paste material, stencil data and panel outline. Ask for the sensor identification and offered conveyor configuration. Similar iS6059 PCB, THT and bond-inspection photographs do not establish SPI hardware. Keep the exact suffix in the quotation and the nameplate record so a dealer’s generic Viscom title cannot substitute another process.
Review volume with a reference
Prepare deposits with independently checked volume, height, displacement and smearing. Review top and angled views along with the numerical result and rejected pad identifier. Agree acceptable variation before changing the recipe. The sensor Z resolution does not prove the same delivered accuracy on solder, sinter material and every reflective pad finish.
Time transfer and feedback together
For a FastFlow or closed-loop claim, record the full board sequence and identify the printer acknowledgement, correction ownership and optional software. Include a panel that fails inspection and a controlled interface interruption. Verify longboard support using the actual panel if requested; the optional 720 mm figure is not a standard limit for every iS6059 SPI.
Typical Applications
Typical Applications for Viscom iS6059 SPI
Viscom iS6059 SPI should be evaluated against the buyer’s inline paste inspection for height, volume, shape, offset and smearing before assembly proceeds. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Viscom iS6059 SPI Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which optical module requirement must the proposed Viscom iS6059 SPI demonstrate?
Viscom iS6059 SPI buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Viscom iS6059 SPI offer: exact spi sensor, board handling, longboard/dual-lane options and software interfaces?
Viscom iS6059 SPI buyers should confirm this with actual-machine evidence before quotation.
3
Can the Viscom iS6059 SPI acceptance run document reference deposits, review data, complete handling cycle and closed-loop handshake?
Viscom iS6059 SPI buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Viscom iS6059 SPI Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered Viscom iS6059 SPI. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Inline paste inspection for height, volume, shape, offset and smearing before assembly proceeds.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Viscom iS6059 SPI
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Viscom iS6059 SPI.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Viscom iS6059 SPI Spare Parts Scope
Request a unit-specific Viscom iS6059 SPI list for camera modules, calibration references, conveyor parts, board support tooling and licensed process software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, optical module, installed configuration and destination, required accessories and desired inspection evidence for the proposed Viscom iS6059 SPI.
FAQ
Common questions for overseas buyers evaluating a Viscom iS6059 SPI.
01Application
Which production task suits Viscom iS6059 SPI?
Inline paste inspection for height, volume, shape, offset and smearing before assembly proceeds. Select the SPI configuration for paste deposits, not an iS6059 PCB AOI or wire-bond variant that shares a similar exterior.
02Configuration
What should a buyer confirm for Viscom iS6059 SPI?
Exact SPI sensor, board handling, longboard/dual-lane options and software interfaces. Request the exact nameplate and option list.
03Unit evidence
Does this Viscom iS6059 SPI illustration prove stock?

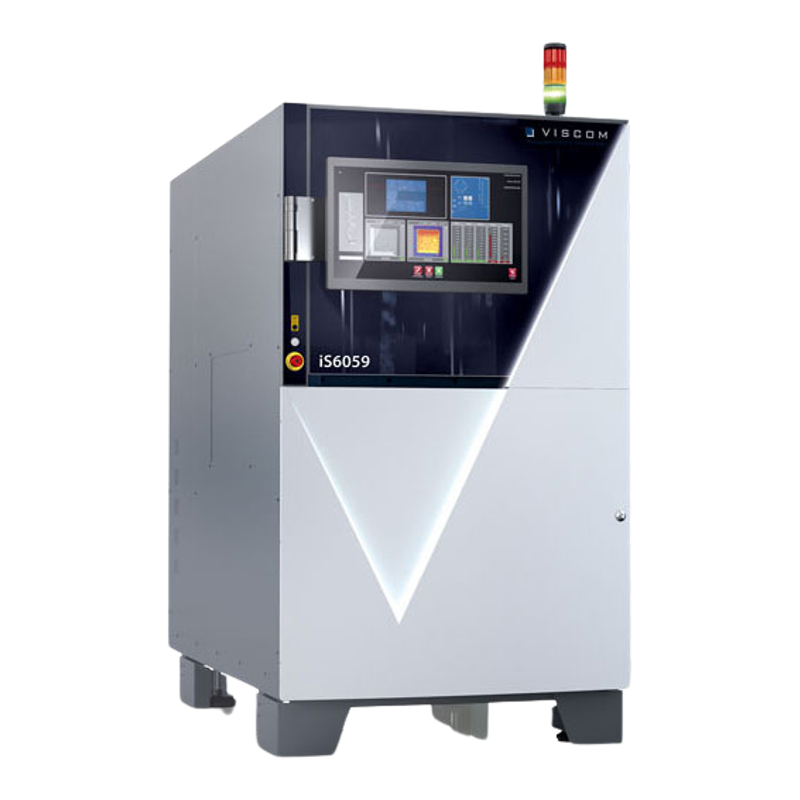

The Viscom iS6059 SPI illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Viscom iS6059 SPI unit.
Send Your Viscom iS6059 SPI Production Requirement
Share target assembly, process requirements, optical module, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Viscom iS6059 SPI configuration is a practical match.
