Buying SMT valves: separate the code, suffix and manifold scope

A shorter code can hide the real purchasing question

An enquiry for “an NPM valve” or “a Samsung solenoid valve” may collect quotations for different products. A machine purchasing reference, a valve-maker designation and a complete manifold assembly can appear beside one photograph. They answer different questions and should not be compressed into a single interchangeable label.

Start by preserving the requirement exactly as documented. If the installed reference is incomplete, identify that gap before comparing offers. A copied catalogue heading is a research lead, not an approved machine-to-maker cross-reference.

Retain both references without inventing their relationship

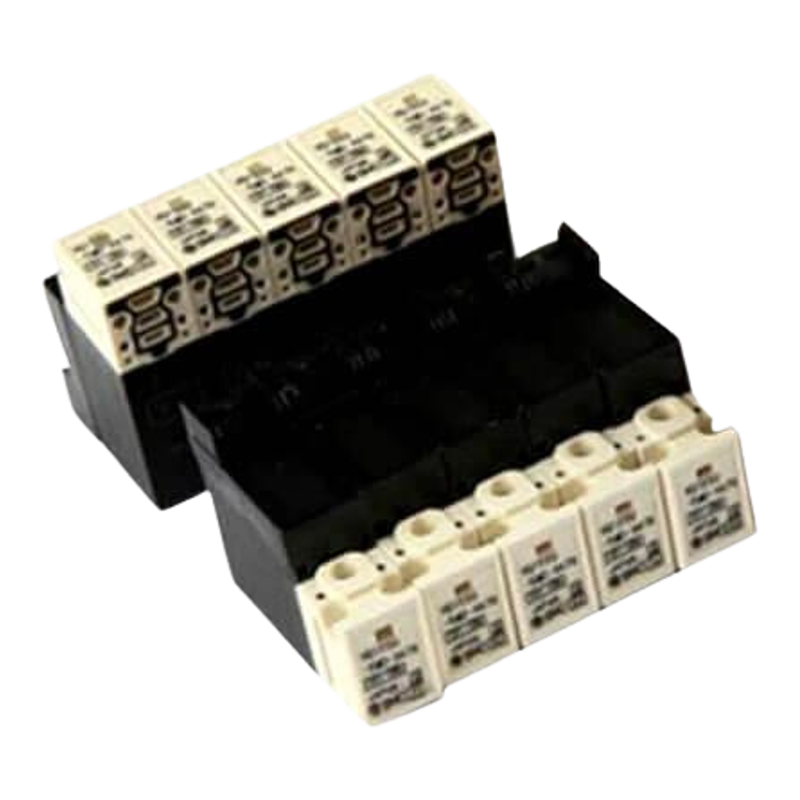

The N510054843AA supplier entry pairs that code with VQ111U-5MO-X479. It uses the letter O in this spelling. Another typed reference may use a zero; this page does not decide that typography establishes equivalence. Request readable actual labels and the applicable documentation.

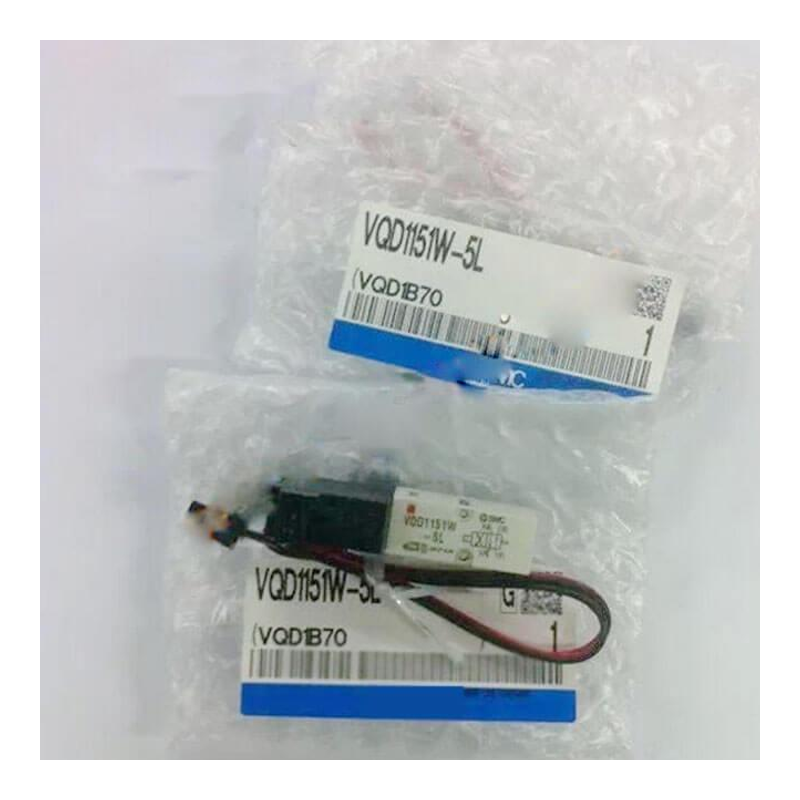

The VQD1151W-5L package example presents a different issue: its visible designation ends in -5L. It does not establish an HP14-000173 cross-reference or permission to add a final zero. Keep each field as supplied until the responsible application decision resolves it.

Prepare a comparison that preserves missing fields

1. Machine requirement: full purchasing reference, machine and actual installation position, with the applicable parts or service document.
2. Maker designation: complete label text and suffix, preserving uncertain characters as questions rather than corrections.
3. Interface evidence: the actual connection and mounting views needed by the responsible engineering team.
4. Delivery scope: valve quantity, manifold or sub-plate, seals, connectors and any other explicitly included items.
5. Offered-item basis: declared maker, condition, provenance and inspection evidence, kept separate from the catalogue reference.

Record which party must resolve each missing field. Purchasing can organise the evidence; application suitability still needs the responsible technical assessment.

Valve-only and manifold quotations need different scope lines

A grouped photograph is not a bill of materials. Ask whether the quoted product is one valve, several valves, a base, a fitted manifold or a separately identified accessory. An unitemised “complete set” does not resolve that question. Match the requested delivery before comparing commercial terms.

SMC’s VQD1000 manual refers separately to manifold accessories, sub-plates and electrical connector assemblies. That distinction supports asking for separate scope lines. It does not prove that a particular accessory fits a supplier’s illustrated item or belongs in every purchase.

Make a proposed alternative reviewable

If a supplier proposes a different designation, retain it as a named alternative with its own documentation. Ask what application relationship supports the proposal and which required interfaces have been checked. A photograph with a similar outline does not answer those questions.

Do not rank an alternative as better because its catalogue states a broader machine range. A broader claim may leave the exact installation unresolved. The useful comparison is the documented match to the requirement, including supply scope and the agreed receiving evidence.

Finish with an acceptance basis, not an assumed substitution

Before purchase, have the responsible team confirm the exact requested product or documented alternative and identify the evidence needed on receipt. Ask the seller for the offered item’s readable markings and agreed contents. Current availability, condition and any test result require separate confirmation.

Keep the final reference and scope with the purchasing record so the next reorder does not repeat the same ambiguity. This article specifies no voltage, pressure, wiring, port allocation or universal substitution rule. It supports a clearer purchasing decision, not an instruction to install or energise pneumatic equipment.
