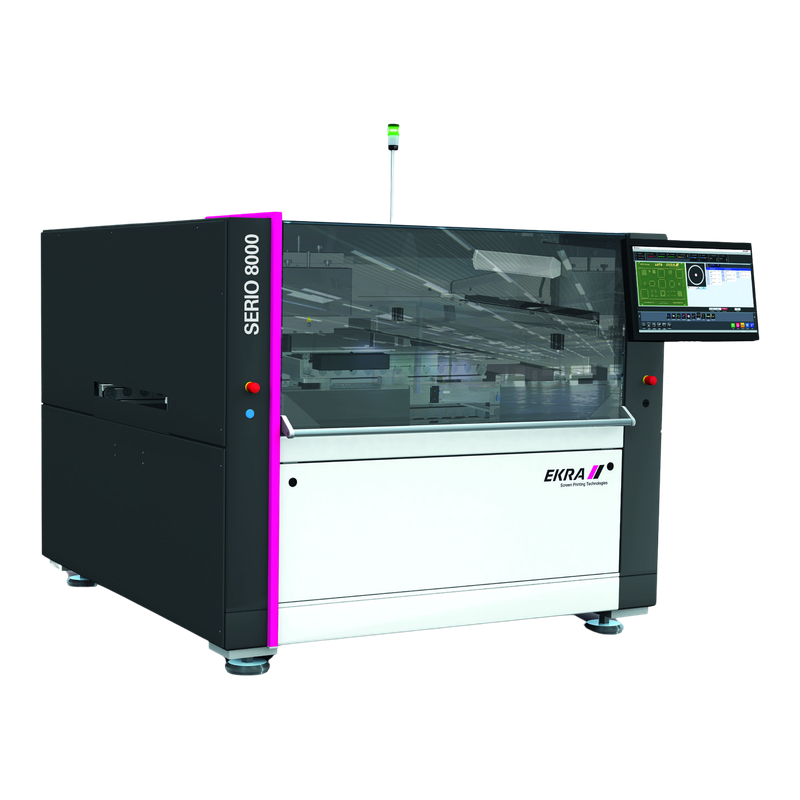

OverviewEKRA SERIO 8000 Large-format Stencil Printer
The SERIO 8000 is an automatic screen and stencil printer designed for very large substrates. Justify the large stencil and support system with the real substrate; record the installed print head and inspection option.
Manufacturer-published model data
EKRA SERIO 8000 Technical Specifications
| Print area | Up to 1,000 × 610 mm |
|---|---|
| Stencil frame | 540 × 540 to 1,270 × 1,700 mm |
| Substrate thickness | 0.5–6.0 mm |
| Alignment repeatability | ±12.5 µm at 6 sigma |
| Cycle condition | 15 seconds plus print time |
| Board weight | Up to 10 kg |
| Machine dimensions | 1,650 × 1,856 × 1,550 mm |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used EKRA SERIO 8000 unit.
Key Features
Configuration Must Be Verified
The EKRA SERIO 8000 offer must document EVA camera calibration, squeegee heads, stencil clamps, support and cleaning package; Large-board alignment, print deposits, cleaning cycle and option evidence.
Buyer decision guide
When EKRA SERIO 8000 Makes Sense — and When It May Not
EKRA SERIO 8000 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
EKRA SERIO 8000 Acceptance Plan
Support the large substrate
For SERIO 8000, provide substrate flatness, thickness and populated underside information with the stencil drawing. Inspect support and clamping before a print trial. Compare deposit quality across the full area, including edges; alignment repeatability alone does not prove the paste volume or release behaviour.
Separate cycle and inspection scope
The SERIO 8000 brochure states fifteen seconds plus print time. Measure cleaning and transfer as well for a production estimate. Request evidence of the optional 2½D inspection package if required; a photographed screen or software menu does not establish that its hardware and license are present.
Typical Applications
Typical Applications for EKRA SERIO 8000
Solder-paste or glue printing on large-format substrates using optical alignment and controlled dual-squeegee pressure. Justify the large stencil and support system with the real substrate; record the installed print head and inspection option.
Before quotation
Three EKRA SERIO 8000 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which print area requirement must the proposed EKRA SERIO 8000 demonstrate?
EKRA SERIO 8000 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this EKRA SERIO 8000 offer: eva camera calibration, squeegee heads, stencil clamps, support and cleaning package?
EKRA SERIO 8000 buyers should confirm this with actual-machine evidence before quotation.
3
Can the EKRA SERIO 8000 acceptance run document large-board alignment, print deposits, cleaning cycle and option evidence?
EKRA SERIO 8000 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
EKRA SERIO 8000 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered EKRA SERIO 8000. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Solder-paste or glue printing on large-format substrates using optical alignment and controlled dual-squeegee pressure.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual EKRA SERIO 8000
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted EKRA SERIO 8000.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
EKRA SERIO 8000 Spare Parts Scope
Request a unit-specific EKRA SERIO 8000 list for squeegee blades, stencil clamps, cleaning consumables, support tooling and camera service parts. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, print area, installed configuration and destination, required accessories and desired inspection evidence for the proposed EKRA SERIO 8000.
FAQ
Common questions for overseas buyers evaluating a EKRA SERIO 8000.
01Application
Which production task suits EKRA SERIO 8000?
Solder-paste or glue printing on large-format substrates using optical alignment and controlled dual-squeegee pressure. Justify the large stencil and support system with the real substrate; record the installed print head and inspection option.
02Configuration
What should a buyer confirm for EKRA SERIO 8000?
EVA camera calibration, squeegee heads, stencil clamps, support and cleaning package. Request the exact nameplate and option list.
03Unit evidence
Does this EKRA SERIO 8000 illustration prove stock?
The EKRA SERIO 8000 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular EKRA SERIO 8000 unit.
Send Your EKRA SERIO 8000 Production Requirement
Share target assembly, process requirements, print area, installed configuration and destination and inspection expectations. LCSMT can review whether an actual EKRA SERIO 8000 configuration is a practical match.
