Home / Ersa Equipment / Ersa VERSAFLOW ONE Series
Model guide · unit evidence required
OverviewErsa VERSAFLOW ONE Series Selective Soldering Machine
The Ersa VERSAFLOW ONE Series combines F and variable-X selective-soldering configurations in one buyer comparison, using a manufacturer F-series reference image. Choose the ONE configuration using nozzle access and the complete board cycle. Do not borrow VERSAFLOW 4 Core Edition features from an existing page.
One family · configuration choices
Compare VERSAFLOW ONE Series versions
Selective through-hole soldering with programmed multidrop fluxing, preheat and individually addressed mini-wave joints. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Variable-X range
VERSAFLOW ONE X-Series
- Selection
- Verify X-variable pots and simultaneous joint access
What the versions share
- Process
- Selective Soldering Machine
- Purchase boundary
- Identify the actual version, options and application trial; no stock is asserted.

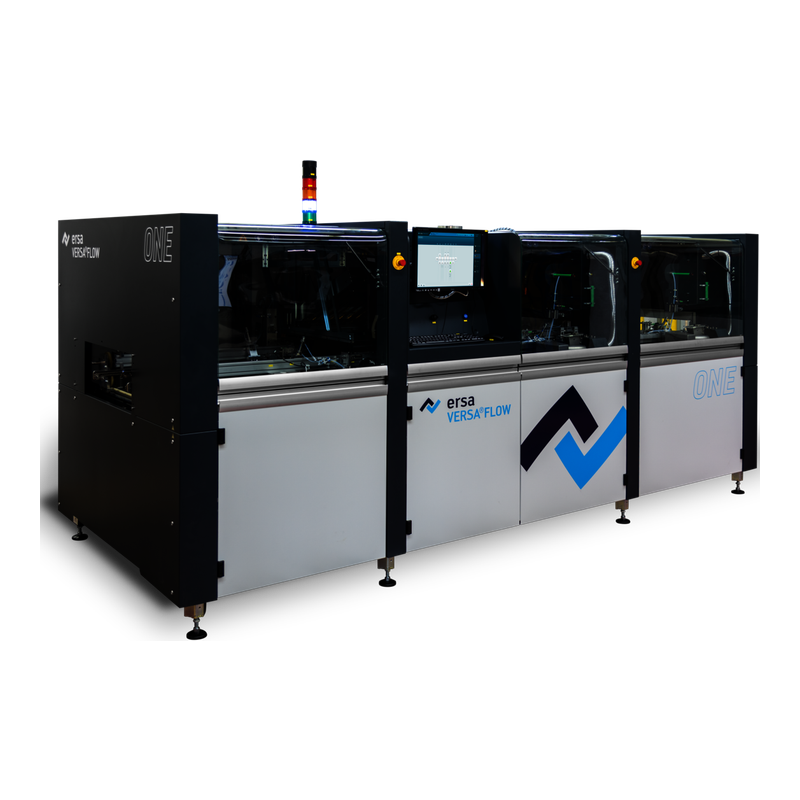

Manufacturer model descriptions checked 4 October 2026; limits and options stay assigned to their stated version. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative VERSAFLOW-ONE-F-Series image does not prove another version or the condition of an offered unit. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Ersa VERSAFLOW ONE Series Technical Specifications
| F-series transport | Segmented pin-chain conveyor |
|---|---|
| F pcb reference | 80–508 mm width; 120–508 mm length in the current specification |
| Fluxing | Multidrop flux heads apply programmed small drops |
| Solder pumping | Electromagnetic solder pump |
| X-series distinction | Variable X-axis pot arrangement; installed pot count depends on configuration |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa VERSAFLOW ONE Series unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact F/FF/X configuration, solder-pot/nozzle list, fluxing, preheat and software; Bottom-side joint map, flux reach, measured board heating and completed-joint inspection.
Buyer decision guide
When Ersa VERSAFLOW ONE Series Makes Sense — and When It May Not
Ersa VERSAFLOW ONE Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa VERSAFLOW ONE Series Acceptance Plan
Resolve pot geometry before cycle promises
Give the VERSAFLOW ONE supplier the bottom-side joint map and populated sample, including pallets and keep-out regions. Ask which F or variable-X configuration reaches each joint and which pots can work simultaneously on that program. Multiple available pots do not guarantee the same productivity advantage on every connector arrangement.
Check flux and thermal preparation together
Observe the programmed multidrop flux pattern on the agreed board and retain the settings. Measure the loaded assembly temperature before solder contact, especially around high thermal mass and sensitive parts. VERSAFLOW ONE brochure features describe the process modules, not an accepted alloy/flux combination or a universally successful heating recipe.
Keep the offered configuration identifiable
Request the nameplate, software revision, nozzle list, pot arrangement and maintenance history, then run repeated and controlled-restart samples. Compare the final joints with agreed inspection evidence. A China dealer’s generic ONE listing does not tell you whether its unit is F, FF or X; the supplier must close that configuration before an order is placed.
Typical Applications
Typical Applications for Ersa VERSAFLOW ONE Series
Ersa VERSAFLOW ONE Series should be evaluated against the buyer’s selective through-hole soldering with programmed multidrop fluxing, preheat and individually addressed mini-wave joints. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Ersa VERSAFLOW ONE Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which f-series transport requirement must the proposed Ersa VERSAFLOW ONE Series demonstrate?
Ersa VERSAFLOW ONE Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa VERSAFLOW ONE Series offer: exact f/ff/x configuration, solder-pot/nozzle list, fluxing, preheat and software?
Ersa VERSAFLOW ONE Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa VERSAFLOW ONE Series acceptance run document bottom-side joint map, flux reach, measured board heating and completed-joint inspection?
Ersa VERSAFLOW ONE Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa VERSAFLOW ONE Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered Ersa VERSAFLOW ONE Series. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Selective through-hole soldering with programmed multidrop fluxing, preheat and individually addressed mini-wave joints.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa VERSAFLOW ONE Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa VERSAFLOW ONE Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa VERSAFLOW ONE Series Spare Parts Scope
Request a unit-specific Ersa VERSAFLOW ONE Series list for selective nozzles, fluxing-head service items, conveyor fingers, pump service components and thermal sensors. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, f-series transport, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa VERSAFLOW ONE Series.
FAQ
Common questions for overseas buyers evaluating a Ersa VERSAFLOW ONE Series.
01Application
Which production task suits Ersa VERSAFLOW ONE Series?
Selective through-hole soldering with programmed multidrop fluxing, preheat and individually addressed mini-wave joints. Choose the ONE configuration using nozzle access and the complete board cycle. Do not borrow VERSAFLOW 4 Core Edition features from an existing page.
02Configuration
What should a buyer confirm for Ersa VERSAFLOW ONE Series?
Exact F/FF/X configuration, solder-pot/nozzle list, fluxing, preheat and software. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa VERSAFLOW ONE Series illustration prove stock?
The Ersa VERSAFLOW ONE Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa VERSAFLOW ONE Series unit.
Send Your Ersa VERSAFLOW ONE Series Production Requirement
Share target assembly, process requirements, f-series transport, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa VERSAFLOW ONE Series configuration is a practical match.
