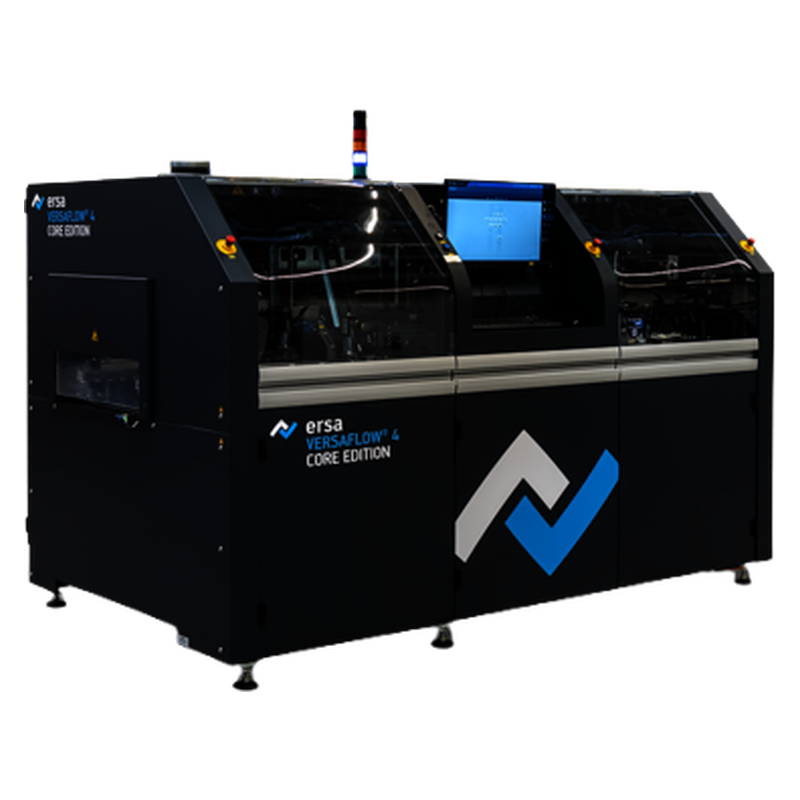

OverviewErsa VERSAFLOW 4 Core Edition Selective Soldering System
The VERSAFLOW 4 Core Edition is an inline selective-soldering platform with configurable solder modules. Define flux, heating, nozzle and board requirements before evaluating any specific used machine.
Manufacturer-published model data
Ersa VERSAFLOW 4 Core Edition Technical Specifications
| Process chain | Precision spray fluxer, bottom-side infrared and top-side convection preheat, followed by selective mini-wave soldering in the published base configuration. |
|---|---|
| Published board range | Up to 508 × 508 mm PCB size; the ELITE family table lists 50–508 mm width and 127–508 mm length. |
| Conveyor | Continuous roller conveyor with programmable width adjustment in Ersa's published basic configuration. |
| Edition choices | ELITE uses a single solder pot, ELITE PLUS two pots in one solder module, and PRO two individual solder modules; verify the exact offered version. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa VERSAFLOW 4 Core Edition unit.
Key Features
Configuration Must Be Verified
The actual Ersa VERSAFLOW 4 Core Edition quote should identify the edition, fluxer, preheaters, solder pots, nozzles, conveyor, process-monitoring options, voltage and visible condition.
Buyer decision guide
When Ersa VERSAFLOW 4 Core Edition Makes Sense — and When It May Not
Ersa VERSAFLOW 4 Core Edition selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Ersa VERSAFLOW 4 Core Edition
Ersa VERSAFLOW 4 Core Edition should be evaluated against the buyer’s board dimensions, solder-joint access, flux chemistry, thermal profile, nozzle selection and line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Ersa VERSAFLOW 4 Core Edition Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Is the offered unit ELITE, ELITE PLUS or PRO, and which solder pots are installed?
Ersa VERSAFLOW 4 Core Edition buyers should confirm this with actual-machine evidence before quotation.
2
Can the flux, preheat and solder profile be demonstrated on a representative board?
Ersa VERSAFLOW 4 Core Edition buyers should confirm this with actual-machine evidence before quotation.
3
Which nozzles, fixtures, nitrogen and process-monitoring options are included?
Ersa VERSAFLOW 4 Core Edition buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa VERSAFLOW 4 Core Edition Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- flux spray, preheat, solder-wave action and conveyor transfer
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa VERSAFLOW 4 Core Edition
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa VERSAFLOW 4 Core Edition.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa VERSAFLOW 4 Core Edition Spare Parts Scope
Request a unit-specific Ersa VERSAFLOW 4 Core Edition list for solder nozzles, pumps, fluxer components, conveyor parts, heaters, sensors and maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide board size, solder-joint access, selected edition, flux and solder chemistry, utilities and destination, required accessories and desired inspection evidence for the proposed Ersa VERSAFLOW 4 Core Edition.
FAQ
Common questions for overseas buyers evaluating a Ersa VERSAFLOW 4 Core Edition.
01Edition
Does Core Edition identify one fixed solder-pot layout?
No. Ersa lists ELITE, ELITE PLUS and PRO arrangements; inspect the actual machine.
02Board range
What is the published maximum PCB size?
Ersa lists 508 × 508 mm in the base configuration, subject to the selected edition and handling setup.
03Process proof
What operating evidence matters?
Request flux spray, preheat, wave/nozzle, conveyor and recipe records from the offered unit.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa VERSAFLOW 4 Core Edition unit.
Send Your Ersa VERSAFLOW 4 Core Edition Production Requirement
Share board size, solder-joint access, selected edition, flux and solder chemistry, utilities and destination and inspection expectations. LCSMT can review whether an actual Ersa VERSAFLOW 4 Core Edition configuration is a practical match.
