OverviewAIMEX IIIc SMT Pick and Place Machine
Fuji positions AIMEX III as an all-in-one platform for high-mix production. Published capability is model-level information; the heads, conveyors, feeders and condition of an offered used unit need separate proof.
Manufacturer-published model data
AIMEX IIIc Technical Specifications
| Production role | Fuji describes the AIMEX III series as a scalable all-in-one platform for high-mix production. |
|---|---|
| Published panel handling | The official product page lists panels up to 1,068 × 710 mm with a single conveyor; a 1,500 mm width is listed as an option. |
| Published component handling | A DX head is described for 0402 (01005 inch) through 102 × 102 mm parts, subject to the manufacturer’s configuration conditions. |
| Published placement context | Fuji states up to 80,000 CPH for a two-head H24S productivity-priority configuration; this is not a used-unit guarantee. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used AIMEX IIIc unit.
Key Features
Configuration Must Be Verified
The actual AIMEX IIIc quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When AIMEX IIIc Makes Sense — and When It May Not
AIMEX IIIc selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for AIMEX IIIc
AIMEX IIIc should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three AIMEX IIIc Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What panel size and component range must the proposed AIMEX IIIc process?
AIMEX IIIc buyers should confirm this with actual-machine evidence before quotation.
2
Which heads, conveyors, feeders, trays and software are installed on the offered unit?
AIMEX IIIc buyers should confirm this with actual-machine evidence before quotation.
3
What nameplate, power-on, placement and export-packing evidence is required before shipment?
AIMEX IIIc buyers should confirm this with actual-machine evidence before quotation.
Machine Images
Machine Images from Different Angles
Reference imagery introduces AIMEX IIIc; actual LCSMT unit photos remain required before an offer is accepted.

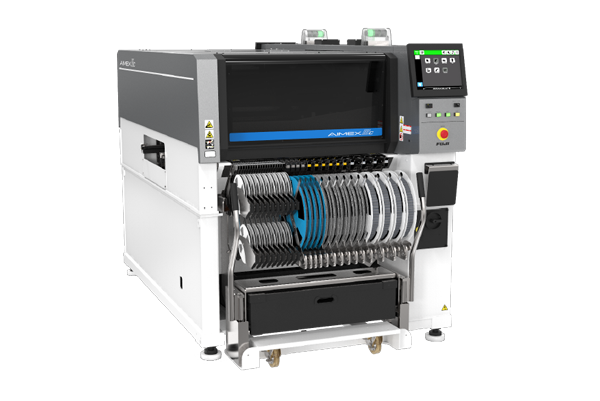

Manufacturer/reference main view
Actual Front View Required
Confirm with the specific AIMEX IIIc unit
Confirm with the specific AIMEX IIIc unit
Front view · unit evidence
Actual Side View Required
Confirm with the specific AIMEX IIIc unit
Confirm with the specific AIMEX IIIc unit
Side view · unit evidence
Manufacturer/reference detail
Machine video
Actual AIMEX IIIc Running Proof
A manufacturer reference page cannot replace a video of the actual used unit being quoted.
Reference Video Slot
This V3 review page retains the video interface without presenting an unverified third-party video as unit proof.
Actual Unit Running Video
Request power-on, motion, conveyor and visible-condition proof for the proposed AIMEX IIIc.
Request Running Video Used-machine inspection
Inspection and Export Preparation for an Actual AIMEX IIIc
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Placement hardwareHead, nozzle, feeder, camera and motion condition relevant to the quoted AIMEX IIIc.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
AIMEX IIIc Spare Parts Scope
Request a unit-specific AIMEX IIIc list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed AIMEX IIIc.
FAQ
Common questions for overseas buyers evaluating a AIMEX IIIc.
01Published output
Does the published 80,000 CPH figure apply to every AIMEX IIIc?
No. It is a manufacturer figure for a stated configuration and mode; actual output depends on the unit and job.
02Large panels
Is the maximum panel size standard on every machine?
No. Confirm the installed conveyor and any option-dependent dimensions on the quoted unit.
03Quotation
Does this page offer live stock?
No. LCSMT must verify availability, configuration, condition and lead time for an actual unit.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular AIMEX IIIc unit.
Send Your AIMEX IIIc Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual AIMEX IIIc configuration is a practical match.
