OverviewHanwha SM485 SMT Placement System
Hanwha SM485 is a wide-range component placer. Published capability must be separated from the installed configuration, condition and proof for a specific used unit.
Manufacturer-published model data
Hanwha SM485 Technical Specifications
| Published placement architecture | Hanwha lists one gantry with 4+1 spindles and an optimum placement speed of 22,000 CPH. |
|---|---|
| Published placement accuracy | Hanwha lists ±40 μm at ±3 sigma for chips and ±30 μm at ±3 sigma for QFP under stated conditions. |
| Published component range | The fly-camera range is listed as 0402 to 21 × 21 mm; fixed-camera details depend on configuration. |
| Published physical data | Hanwha lists dimensions of 1,650 × 1,680 × 1,530 mm and up to 740 × 460 mm single-lane PCB capacity with options. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Hanwha SM485 unit.
Key Features
Configuration Must Be Verified
The actual Hanwha SM485 quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When Hanwha SM485 Makes Sense — and When It May Not
Hanwha SM485 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Hanwha SM485
Hanwha SM485 should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Hanwha SM485 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which component types, board sizes and placement tasks must the actual SM485 support?
Hanwha SM485 buyers should confirm this with actual-machine evidence before quotation.
2
Which heads, feeders, cameras, software and accessories are installed on the proposed machine?
Hanwha SM485 buyers should confirm this with actual-machine evidence before quotation.
3
Which power-on, placement, nameplate and packing records are required before shipment?
Hanwha SM485 buyers should confirm this with actual-machine evidence before quotation.
Machine Images
Machine Images from Different Angles
Reference imagery introduces Hanwha SM485; actual LCSMT unit photos remain required before an offer is accepted.

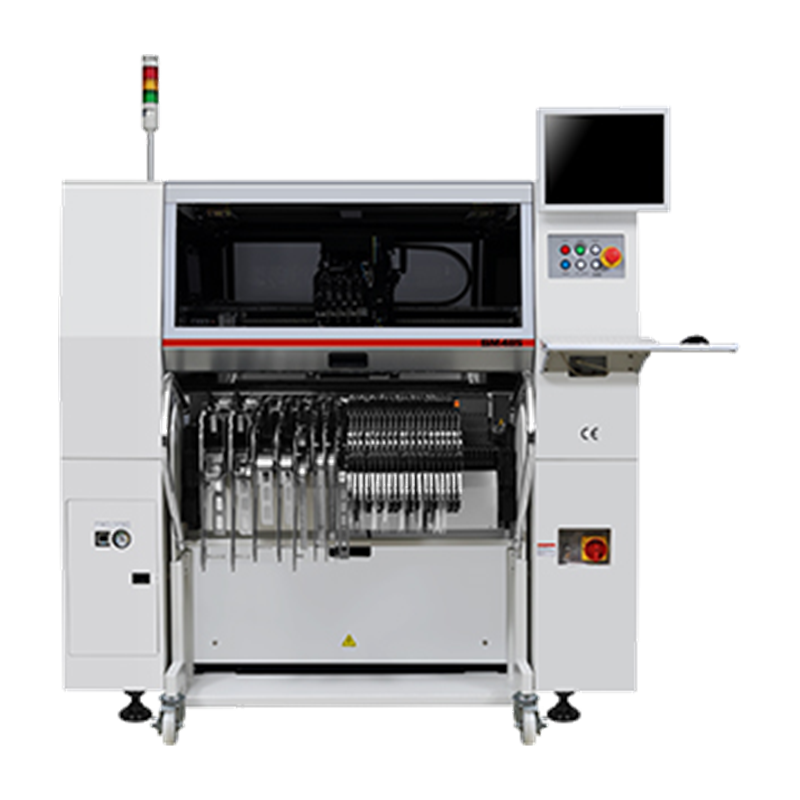

Manufacturer/reference main view
Actual Front View Required
Confirm with the specific Hanwha SM485 unit
Confirm with the specific Hanwha SM485 unit
Front view · unit evidence
Actual Side View Required
Confirm with the specific Hanwha SM485 unit
Confirm with the specific Hanwha SM485 unit
Side view · unit evidence
Manufacturer/reference detail
Machine video
Actual Hanwha SM485 Running Proof
A manufacturer reference page cannot replace a video of the actual used unit being quoted.
Reference Video Slot
This V3 review page retains the video interface without presenting an unverified third-party video as unit proof.
Actual Unit Running Video
Request power-on, motion, conveyor and visible-condition proof for the proposed Hanwha SM485.
Request Running Video Used-machine inspection
Inspection and Export Preparation for an Actual Hanwha SM485
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Placement hardwareHead, nozzle, feeder, camera and motion condition relevant to the quoted Hanwha SM485.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Hanwha SM485 Spare Parts Scope
Request a unit-specific Hanwha SM485 list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed Hanwha SM485.
FAQ
Common questions for overseas buyers evaluating a Hanwha SM485.
01Published speed
Does 22,000 CPH guarantee actual output?
No. It is a published optimum-condition figure; actual performance depends on the unit and job.
02Configuration
Why check the installed options?
Head, feeder, camera and software scope determine whether the offered unit fits the process.
03Availability
Does this local draft claim stock?
No. Availability and condition require unit-specific confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Hanwha SM485 unit.
Send Your Hanwha SM485 Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual Hanwha SM485 configuration is a practical match.
