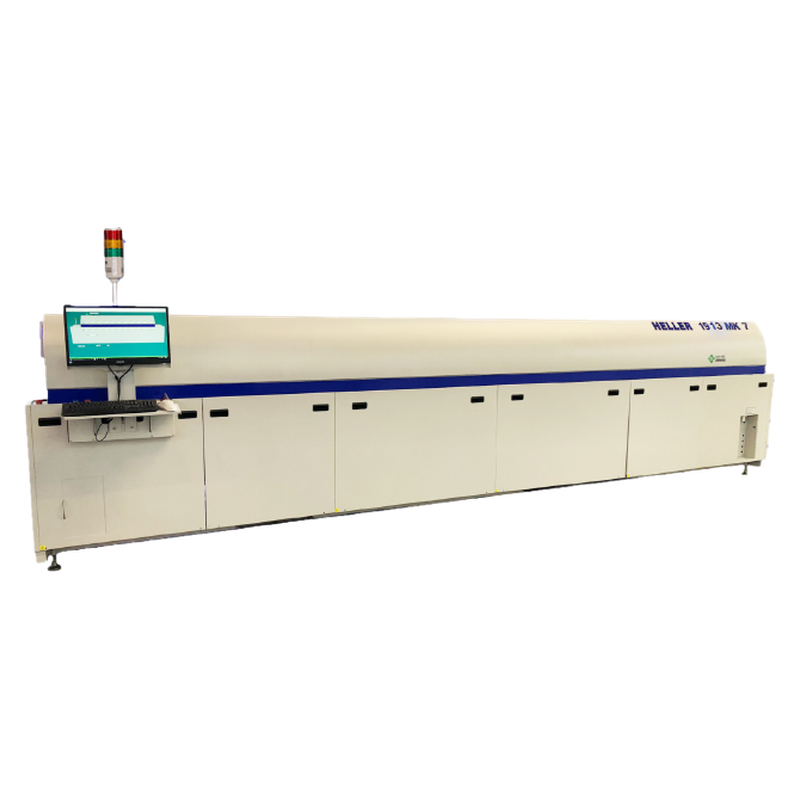

OverviewHeller 1913 MK7 Convection Reflow Oven
The 1913 MK7 is a configurable 13-heated-zone reflow platform. A buyer should validate actual zone control, conveyor width, cooling and the intended air or nitrogen process with a representative thermal profile, not infer a particular option from the model name.
Manufacturer-published model data
Heller 1913 MK7 Technical Specifications
| Heated and cooling zones | Heller lists 13 heated zones and three cooling zones for the 1913 MK7. |
|---|---|
| Oven length | 5,900 mm overall; 3,560 mm heated convection length in manufacturer data. |
| Working temperature | 350°C standard maximum; 400°C is an option. |
| PCB width | 55.9 cm maximum standard board width; 61 cm is optional. |
| Atmosphere | Air and nitrogen are published process-gas options; verify plumbing and installed controls. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Heller 1913 MK7 unit.
Key Features
Configuration Must Be Verified
The actual Heller 1913 MK7 quote should identify the zone controls, conveyor, cooling, gas/exhaust setup, profiler, software, voltage and visible condition.
Buyer decision guide
When Heller 1913 MK7 Makes Sense — and When It May Not
Heller 1913 MK7 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Heller 1913 MK7
Heller 1913 MK7 should be evaluated against the buyer’s board width, solder paste, thermal profile, atmosphere, line speed and exhaust. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Heller 1913 MK7 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What board width and thermal profile are required?
Heller 1913 MK7 buyers should confirm this with actual-machine evidence before quotation.
2
Is the offered oven configured for air or nitrogen, and which options are installed?
Heller 1913 MK7 buyers should confirm this with actual-machine evidence before quotation.
3
Can the actual oven provide zone-temperature, conveyor and profiler evidence?
Heller 1913 MK7 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Heller 1913 MK7 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- conveyor travel, zone heat-up, cooling, alarms and measured thermal profile
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual Heller 1913 MK7
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Heller 1913 MK7.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Heller 1913 MK7 Spare Parts Scope
Request a unit-specific Heller 1913 MK7 list for heaters, fans, conveyor parts, cooling assemblies, filters and service items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB width, target thermal profile, gas requirement, power and destination, required accessories and desired inspection evidence for the proposed Heller 1913 MK7.
FAQ
Common questions for overseas buyers evaluating a Heller 1913 MK7.
01Zone count
How many heated zones does Heller list?
Thirteen heated zones and three cooling zones.
02Width
Will every unit accept 61 cm boards?
No. Heller lists 55.9 cm standard and 61 cm optional.
03Temperature
Is 400°C standard?
No. Heller identifies 400°C as optional.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Heller 1913 MK7 unit.
Send Your Heller 1913 MK7 Production Requirement
Share PCB width, target thermal profile, gas requirement, power and destination and inspection expectations. LCSMT can review whether an actual Heller 1913 MK7 configuration is a practical match.
