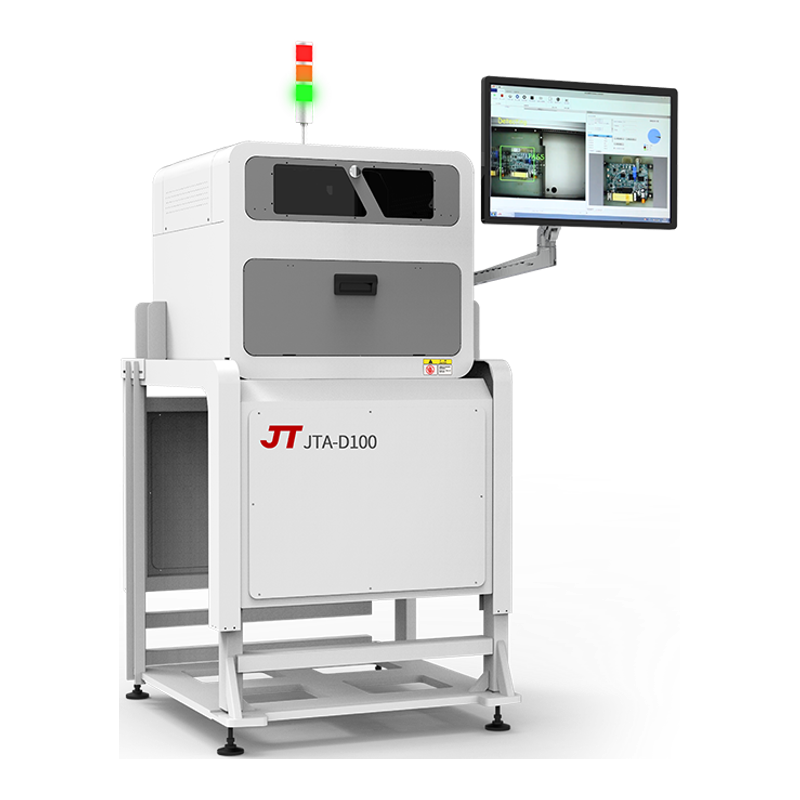

OverviewJT JTA-D100 Inline DIP Optical Inspection System
The JTA-D100 checks inserted components before soldering in an inline DIP process. Choose when inserted-component verification is the process gap; do not substitute it for post-solder joint inspection.
Manufacturer-published model data
JT JTA-D100 Technical Specifications
| Line position | After insertion and before soldering |
|---|---|
| Published checks | Missing parts, polarity, wrong parts, extra insertion and foreign objects |
| Operating concept | Continuous inspection integrated into the production line |
| Numerical limits | Resolution, board envelope and actual cycle require configuration evidence |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JT JTA-D100 unit.
Key Features
Configuration Must Be Verified
The JT JTA-D100 offer must document Camera, lighting, board transport, mounting arrangement and defect-program scope; Known-defect challenge boards, false-call review and line-cycle evidence.
Buyer decision guide
When JT JTA-D100 Makes Sense — and When It May Not
JT JTA-D100 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
JT JTA-D100 Acceptance Plan
Build a challenge-board set
For JTA-D100 qualification, include deliberately missing, reversed and incorrect through-hole components, plus acceptable boards from normal production. Review which defects are detected and which create false calls. Retain images and dispositions so that a good demonstration cannot hide an overly permissive inspection program.
Verify the pre-solder line position
JTA-D100 is described for inserted boards before soldering. Measure inspection timing and transfer interfaces in that position, including tall-component clearance. Request the actual camera and lighting configuration; the model name alone does not justify a resolution or throughput claim.
Typical Applications
Typical Applications for JT JTA-D100
Pre-solder appearance inspection of through-hole assemblies for missing, wrong, reversed or extra parts and foreign objects. Choose when inserted-component verification is the process gap; do not substitute it for post-solder joint inspection.
Before quotation
Three JT JTA-D100 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which line position requirement must the proposed JT JTA-D100 demonstrate?
JT JTA-D100 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this JT JTA-D100 offer: camera, lighting, board transport, mounting arrangement and defect-program scope?
JT JTA-D100 buyers should confirm this with actual-machine evidence before quotation.
3
Can the JT JTA-D100 acceptance run document known-defect challenge boards, false-call review and line-cycle evidence?
JT JTA-D100 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JT JTA-D100 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered JT JTA-D100. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Pre-solder appearance inspection of through-hole assemblies for missing, wrong, reversed or extra parts and foreign objects.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JT JTA-D100
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JT JTA-D100.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JT JTA-D100 Spare Parts Scope
Request a unit-specific JT JTA-D100 list for camera and lighting assemblies, conveyor parts, calibration targets and compatible computer hardware. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, line position, installed configuration and destination, required accessories and desired inspection evidence for the proposed JT JTA-D100.
FAQ
Common questions for overseas buyers evaluating a JT JTA-D100.
01Application
Which production task suits JT JTA-D100?
Pre-solder appearance inspection of through-hole assemblies for missing, wrong, reversed or extra parts and foreign objects. Choose when inserted-component verification is the process gap; do not substitute it for post-solder joint inspection.
02Configuration
What should a buyer confirm for JT JTA-D100?
Camera, lighting, board transport, mounting arrangement and defect-program scope. Request the exact nameplate and option list.
03Unit evidence
Does this JT JTA-D100 illustration prove stock?
The JT JTA-D100 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JT JTA-D100 unit.
Send Your JT JTA-D100 Production Requirement
Share target assembly, process requirements, line position, installed configuration and destination and inspection expectations. LCSMT can review whether an actual JT JTA-D100 configuration is a practical match.
