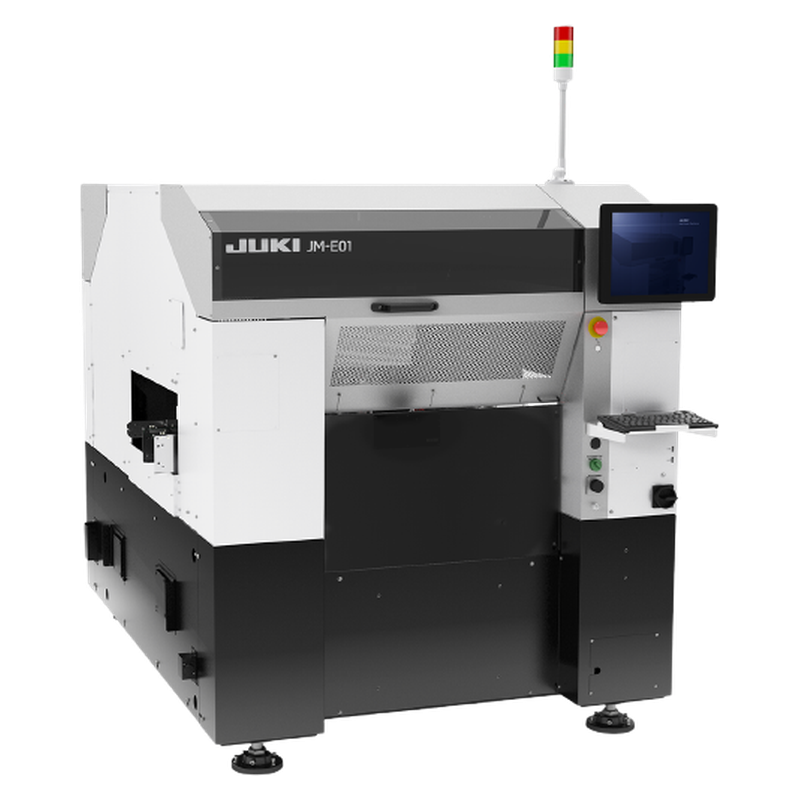

OverviewJUKI JM-E01 Multitask Insertion and Screw-Tightening Platform
The JM-E01 combines component insertion and screw tightening without turning the board over. Match the board, part presentation and installed screw-feeding arrangement to the real production job before assessing a particular unit.
Manufacturer-published model data
JUKI JM-E01 Technical Specifications
| Board size | Single clamp: 50 × 50 to 410 × 560 mm; double clamp: 50 × 50 to 800 × 560 mm in JUKI's published specification. |
|---|---|
| PCB weight | 6 kg standard; 10 kg option. |
| Component envelope | Body height up to 80 mm and body-plus-lead height up to 90 mm; package outer dimension up to 150 mm square. |
| Published handling limits | Component weight up to 400 g and insertion force up to 50 N; verify the fitted head and application. |
| Screw process | M3 screw size is listed by JUKI, with applicability subject to manufacturer confirmation. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JUKI JM-E01 unit.
Key Features
Configuration Must Be Verified
The actual JUKI JM-E01 quote should identify the clamps, insertion head, recognition, feeders, grippers, screw supply, software, voltage and visible condition.
Buyer decision guide
When JUKI JM-E01 Makes Sense — and When It May Not
JUKI JM-E01 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for JUKI JM-E01
JUKI JM-E01 should be evaluated against the buyer’s board size, insertion-part geometry, screw locations, feeding, cycle target and line handoff. The final application fit depends on the evidence for the specific unit.
Before quotation
Three JUKI JM-E01 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which components require insertion and which screws must be tightened?
JUKI JM-E01 buyers should confirm this with actual-machine evidence before quotation.
2
What clamps, grippers, feeders and screw-supply equipment are actually fitted?
JUKI JM-E01 buyers should confirm this with actual-machine evidence before quotation.
3
Can the unit demonstrate recognition, insertion, fastening and board transfer on representative work?
JUKI JM-E01 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JUKI JM-E01 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- part recognition, insertion, screw fastening where fitted and board transfer
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual JUKI JM-E01
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JUKI JM-E01.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JUKI JM-E01 Spare Parts Scope
Request a unit-specific JUKI JM-E01 list for grippers, pickup tools, feeders, screw-supply components, sensors and maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide board dimensions, component weights and heights, screw requirements, tooling scope, voltage and destination, required accessories and desired inspection evidence for the proposed JUKI JM-E01.
FAQ
Common questions for overseas buyers evaluating a JUKI JM-E01.
01Process
Can one JM-E01 perform insertion and screw tightening?
JUKI describes both operations on this model; inspect the offered configuration before relying on either process.
02Board size
Does every unit take an 800 × 560 mm board?
That published range uses double clamping; verify the offered transport and clamp setup.
03Options
Is vision centering standard?
JUKI identifies vision centering as an option, so confirm installation and operation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JUKI JM-E01 unit.
Send Your JUKI JM-E01 Production Requirement
Share board dimensions, component weights and heights, screw requirements, tooling scope, voltage and destination and inspection expectations. LCSMT can review whether an actual JUKI JM-E01 configuration is a practical match.
