OverviewJUKI RS-1XL Wide-board Flexible Mounter
The RS-1XL extends flexible Takumi-head placement to wide boards and a varied component mix. Shortlist when board width and mixed package heights justify the XL transport; do not transfer RS-1R board limits.
Manufacturer-published model data
JUKI RS-1XL Technical Specifications
| Board range | 50 × 50 to 650 × 560 mm |
|---|---|
| Placement rate | 42,000 cph optimum; 29,000 cph IPC-9850 |
| Component envelope | 0201 to 74 × 74 mm or 150 × 50 mm |
| Component height | Up to 25 mm |
| Placement accuracy | ±35 µm, Cpk ≥ 1 |
| Feeders | Up to 112 using RF08AS |
| Machine dimensions | 2,109 × 2,000 × 1,440 mm; excludes front monitor and signal tower |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JUKI RS-1XL unit.
Key Features
Configuration Must Be Verified
The JUKI RS-1XL offer must document Takumi head, laser/vision package, feeder set and wide-board support; Long-connector pickup, calibration, software and actual program performance.
Buyer decision guide
When JUKI RS-1XL Makes Sense — and When It May Not
JUKI RS-1XL selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
JUKI RS-1XL Acceptance Plan
Map the difficult packages
For RS-1XL, create a list of tall bodies, long connectors and reflective packages. Match each to a pickup tool and recognition method before the quotation. Request the actual option list and inspect the placement result on a populated board rather than accepting a demonstration using only easy chips.
Support the wide board
RS-1XL acceptance should include board thickness, mass, sag and support locations. Inspect the transfer into and out of the machine with the intended rail setting. Compare optimized and IPC cycle figures with the real component mix, and retain the program revision used for the timing test.
Typical Applications
Typical Applications for JUKI RS-1XL
Mixed SMT assemblies combining small chips with larger or taller parts and wide-board transport requirements. Shortlist when board width and mixed package heights justify the XL transport; do not transfer RS-1R board limits.
Before quotation
Three JUKI RS-1XL Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which board range requirement must the proposed JUKI RS-1XL demonstrate?
JUKI RS-1XL buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this JUKI RS-1XL offer: takumi head, laser/vision package, feeder set and wide-board support?
JUKI RS-1XL buyers should confirm this with actual-machine evidence before quotation.
3
Can the JUKI RS-1XL acceptance run document long-connector pickup, calibration, software and actual program performance?
JUKI RS-1XL buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JUKI RS-1XL Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered JUKI RS-1XL. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Mixed SMT assemblies combining small chips with larger or taller parts and wide-board transport requirements.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JUKI RS-1XL
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JUKI RS-1XL.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JUKI RS-1XL Spare Parts Scope
Request a unit-specific JUKI RS-1XL list for Takumi head tools, nozzles, RF feeders, vision accessories, transport belts and support tooling. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, board range, installed configuration and destination, required accessories and desired inspection evidence for the proposed JUKI RS-1XL.
FAQ
Common questions for overseas buyers evaluating a JUKI RS-1XL.
01Application
Which production task suits JUKI RS-1XL?
Mixed SMT assemblies combining small chips with larger or taller parts and wide-board transport requirements. Shortlist when board width and mixed package heights justify the XL transport; do not transfer RS-1R board limits.
02Configuration
What should a buyer confirm for JUKI RS-1XL?
Takumi head, laser/vision package, feeder set and wide-board support. Request the exact nameplate and option list.
03Unit evidence
Does this JUKI RS-1XL illustration prove stock?

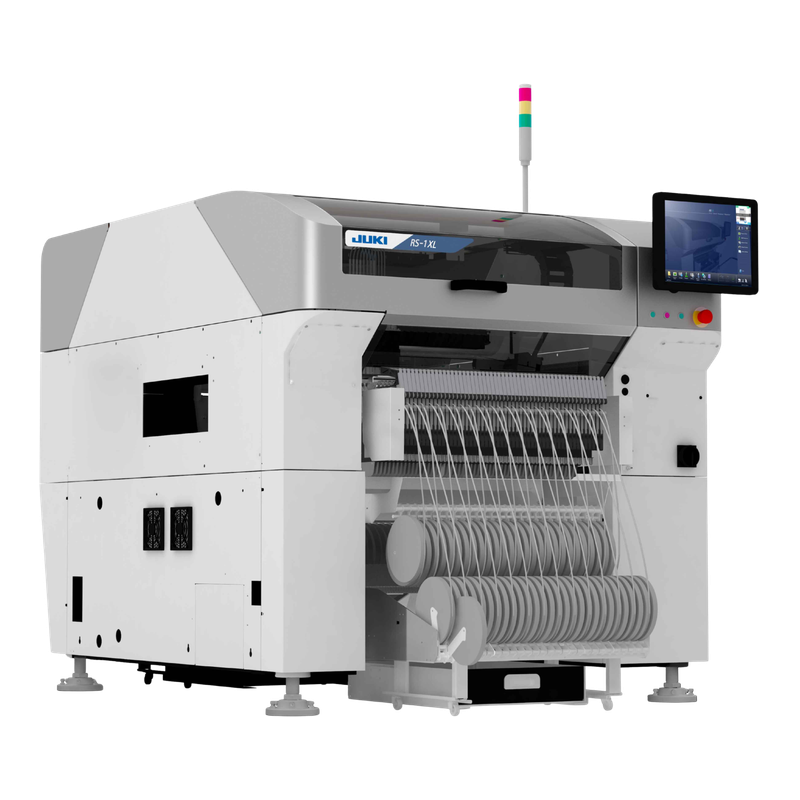

The JUKI RS-1XL illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JUKI RS-1XL unit.
Send Your JUKI RS-1XL Production Requirement
Share target assembly, process requirements, board range, installed configuration and destination and inspection expectations. LCSMT can review whether an actual JUKI RS-1XL configuration is a practical match.
