OverviewJUKI RV-2 3D AOI/SPI inspection machine
JUKI compact single-lane platform for 3D solder-paste and board optical inspection. Confirm SPI versus AOI mode, installed 3D options, inspection resolution and board envelope before choosing a used RV-2.
Manufacturer-published model data
JUKI RV-2 Technical Specifications
| Pcb standard | 50 × 50 to 410 × 360 mm |
|---|---|
| Pcb long option | Up to 630 × 360 mm |
| Inspection resolution | 15 µm standard; 10 µm optional |
| Optimal 2d speed | 0.20 s/frame |
| Optimal i3d spi speed | 0.50 s/frame (4 frames) |
| Optimal e3d aoi speed | 0.55 s/frame (4 frames) |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JUKI RV-2 unit.
Key Features
Configuration Must Be Verified
The offered JUKI RV-2 must document installed 3d/long-board/spc options; calibration, condition, software, service history and running proof.
Buyer decision guide
When JUKI RV-2 Makes Sense — and When It May Not
JUKI RV-2 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for JUKI RV-2
Pre-placement SPI or post-placement AOI inspection on a compact SMT line, depending on actual installed inspection options. Confirm the board program and actual-unit configuration before a purchase decision.
Before quotation
Three JUKI RV-2 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb standard requirement does the target board need, and can the offered JUKI RV-2 demonstrate it?
JUKI RV-2 buyers should confirm this with actual-machine evidence before quotation.
2
Which configuration is included: installed 3d/long-board/spc options?
JUKI RV-2 buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative trial verify this process: pre-placement spi or post-placement aoi inspection on a compact smt line, depending on actual installed inspection options?
JUKI RV-2 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JUKI RV-2 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.

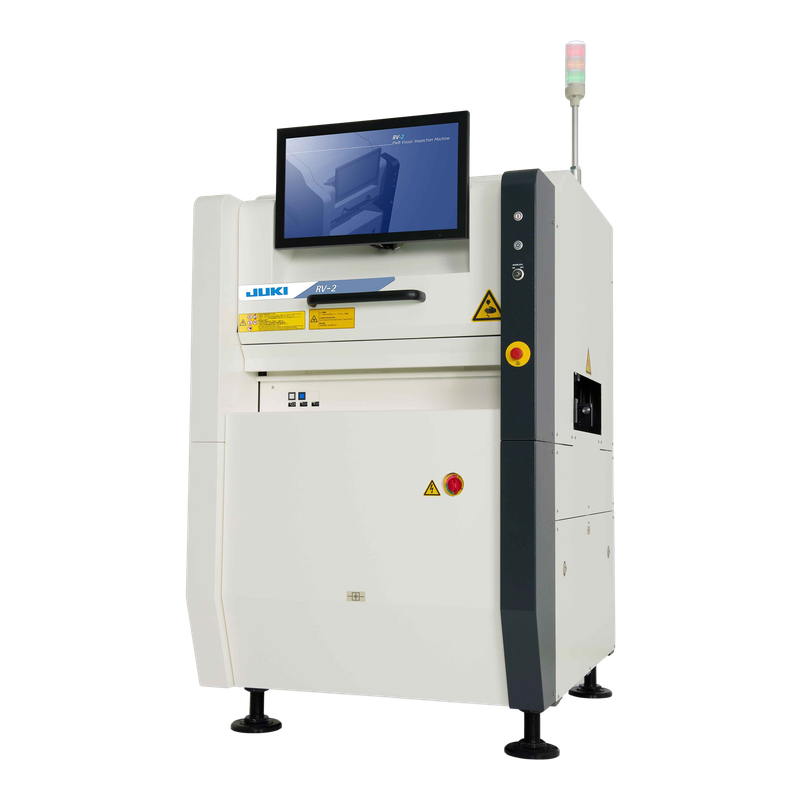

The image is a model reference. The orange control requests actual-unit running evidence; no reviewed recording is attached.
- Power-on and visible operating-state confirmation
- Pre-placement SPI or post-placement AOI inspection on a compact SMT line, depending on actual installed inspection options.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JUKI RV-2
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JUKI RV-2.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JUKI RV-2 Spare Parts Scope
Request a unit-specific JUKI RV-2 list for cameras, lighting, conveyor belts, calibration accessories and computer hardware. Availability is not claimed on this review page.
Quotation checklist
Provide target board and process, pcb standard, installed configuration, power and destination, required accessories and desired inspection evidence for the proposed JUKI RV-2.
FAQ
Common questions for overseas buyers evaluating a JUKI RV-2.
01Process
Where does the JUKI RV-2 fit in the line?
Pre-placement SPI or post-placement AOI inspection on a compact SMT line, depending on actual installed inspection options.
02Configuration
What must be confirmed for a used JUKI RV-2?
Installed 3D/long-board/SPC options; ask for the actual nameplate and configuration list.
03Availability
Is this JUKI RV-2 image evidence of current stock?
No. It is a manufacturer model reference. Current serial, location, condition, dated running evidence and a quotation require confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JUKI RV-2 unit.
Send Your JUKI RV-2 Production Requirement
Share target board and process, pcb standard, installed configuration, power and destination and inspection expectations. LCSMT can review whether an actual JUKI RV-2 configuration is a practical match.
