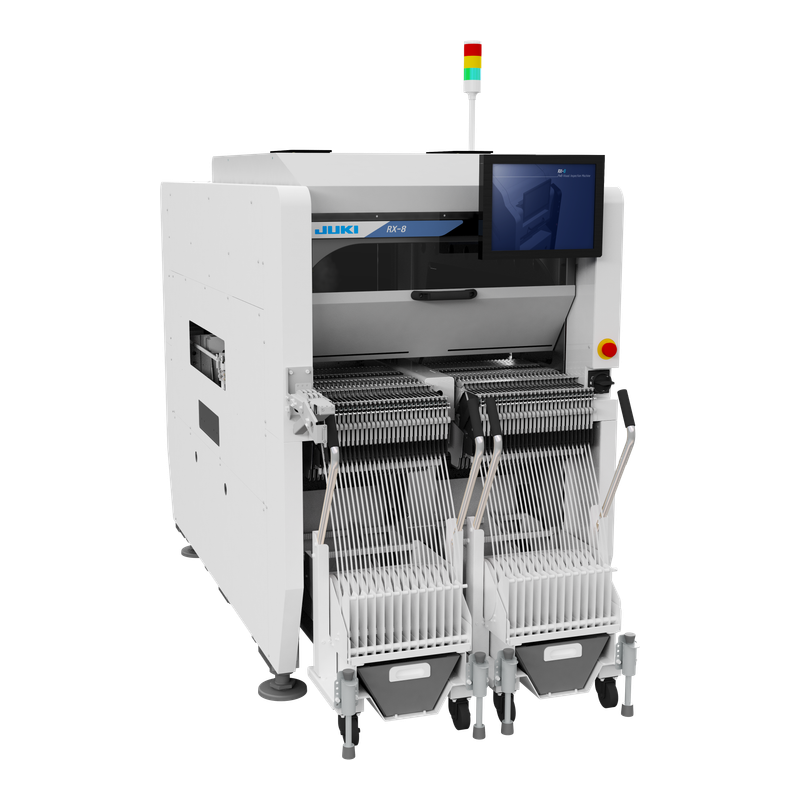

OverviewJUKI RX-8 High-speed Modular Mounter
The RX-8 combines a compact machine width with a P20 planetary placement head for small-chip production. Use for a verified small-chip workload; a large or tall connector job is outside the recorded component envelope.
Manufacturer-published model data
JUKI RX-8 Technical Specifications
| Optimum placement rate | 100,000 cph under JUKI optimum conditions |
|---|---|
| Board range | 50 × 50 to 510 × 450 mm |
| Component range | 0201 to 5 mm square; confirm 0201 handling with JUKI |
| Maximum component height | 3 mm |
| Placement accuracy | ±40 µm, Cpk ≥ 1 |
| Feeder capacity | Up to 56 with RF08AS feeders |
| Machine size | 998 × 1,893 × 1,530 mm; excludes monitor and signal tower |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JUKI RX-8 unit.
Key Features
Configuration Must Be Verified
The JUKI RX-8 offer must document P20 head, nozzle set, RF feeder compatibility and conveyor configuration; Recognition performance, reject rate, trace licenses and representative-board cycle.
Buyer decision guide
When JUKI RX-8 Makes Sense — and When It May Not
JUKI RX-8 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
JUKI RX-8 Acceptance Plan
Check the small-chip limits
For RX-8 qualification, identify the smallest package and its tape pocket rather than relying on a component code alone. Run the intended feeder and nozzle combination, inspect pickup consistency and review rejected components. Confirm the height and body outline of every outlier before assigning the full board to this head.
Calculate the line, not a head headline
An RX-8 catalogue rate uses optimized conditions. Time the actual program including feeder replenishment and recognition recovery, then compare that cycle with the line bottleneck. Verify floor space for feeder access and maintenance in addition to the compact machine width.
Typical Applications
Typical Applications for JUKI RX-8
High-volume placement of small components where feeder planning and recognition stability determine line output. Use for a verified small-chip workload; a large or tall connector job is outside the recorded component envelope.
Before quotation
Three JUKI RX-8 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which optimum placement rate requirement must the proposed JUKI RX-8 demonstrate?
JUKI RX-8 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this JUKI RX-8 offer: p20 head, nozzle set, rf feeder compatibility and conveyor configuration?
JUKI RX-8 buyers should confirm this with actual-machine evidence before quotation.
3
Can the JUKI RX-8 acceptance run document recognition performance, reject rate, trace licenses and representative-board cycle?
JUKI RX-8 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JUKI RX-8 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered JUKI RX-8. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- High-volume placement of small components where feeder planning and recognition stability determine line output.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JUKI RX-8
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JUKI RX-8.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JUKI RX-8 Spare Parts Scope
Request a unit-specific JUKI RX-8 list for P20 head maintenance items, nozzles, RF feeders, camera hardware and transport parts. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, optimum placement rate, installed configuration and destination, required accessories and desired inspection evidence for the proposed JUKI RX-8.
FAQ
Common questions for overseas buyers evaluating a JUKI RX-8.
01Application
Which production task suits JUKI RX-8?
High-volume placement of small components where feeder planning and recognition stability determine line output. Use for a verified small-chip workload; a large or tall connector job is outside the recorded component envelope.
02Configuration
What should a buyer confirm for JUKI RX-8?
P20 head, nozzle set, RF feeder compatibility and conveyor configuration. Request the exact nameplate and option list.
03Unit evidence
Does this JUKI RX-8 illustration prove stock?
The JUKI RX-8 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JUKI RX-8 unit.
Send Your JUKI RX-8 Production Requirement
Share target assembly, process requirements, optimum placement rate, installed configuration and destination and inspection expectations. LCSMT can review whether an actual JUKI RX-8 configuration is a practical match.
