OverviewKoh-Young Zenith USX Extra-long-board 3D Optical Inspection
Koh Young Zenith USX is an extra-long-board 3D AOI platform. Its purpose is extended PCB and FPCB handling with profilometric inspection, not another suffix page for the existing general Zenith models. Compare USX around board length, support and inspection program. Do not borrow Zenith UHS options or advertised speed without a USX configuration record.
Manufacturer-published model data
Koh-Young Zenith USX Technical Specifications
| Measurement method | Multi-projection moire True 3D technology |
|---|---|
| Standard published board length | Up to 1,300 mm in one pass |
| Extended handling | Up to 1,800 mm optional; confirm the fitted arrangement |
| Software boundary | KSMART integration is described; individual modules and licenses require confirmation |
| Tall-component boundary | The source’s separate 25 mm paragraph names Zenith UHS, not a verified USX installation |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Koh-Young Zenith USX unit.
Key Features
Configuration Must Be Verified
The offer must identify USX serial, standard or extended conveyor, board supports, optics and KSMART/license inventory; Long-board transfer, warpage support, known-defect results, repeated measurements, SPC export and recovery evidence.
Buyer decision guide
When Koh-Young Zenith USX Makes Sense — and When It May Not
Koh-Young Zenith USX selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Koh-Young Zenith USX Acceptance Plan
Bring the longest actual assembly
For Zenith USX selection, specify board length, width, mass, edge support and populated component clearance together. Demonstrate the complete board entering, being supported through inspection and leaving the conveyor. A short rigid sample cannot qualify a long flexible assembly. Ask which handling kit is installed and whether the actual program can inspect the full intended area without excluded regions or an undocumented second pass.
Evaluate the measurement program
Use traceable known-good and challenge assemblies with the actual component population. Have the process team retain measurement results and review both false calls and known defects, rather than judging the system by the sharpness of a single 3D display. Define warpage compensation and support conditions in the trial record. Generic True 3D marketing is not a guarantee that every hidden or obscured joint can be measured by an optical system.
Confirm software and recovery scope
Request a list of installed KSMART functions, licenses, interfaces and program-backup procedures for the offered USX. Demonstrate that board identity remains associated with results through the customer’s intended review workflow. Do not infer a tall-component option from a paragraph naming another Zenith model. China dealer material gives an enquiry route but no verified serial or calibration history; condition, current location and configuration must be established on the actual machine.
Typical Applications
Typical Applications for Koh-Young Zenith USX
Koh-Young Zenith USX should be evaluated against the buyer’s inspect visible component and solder-joint geometry on long electronics assemblies, with board support and the fitted 3d measurement program qualified together. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Koh-Young Zenith USX Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which measurement method requirement must the proposed Koh-Young Zenith USX demonstrate?
Koh-Young Zenith USX buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Koh-Young Zenith USX offer: usx serial, standard or extended conveyor, board supports, optics and ksmart/license inventory?
Koh-Young Zenith USX buyers should confirm this with actual-machine evidence before quotation.
3
Can the Koh-Young Zenith USX acceptance run document long-board transfer, warpage support, known-defect results, repeated measurements, spc export and recovery evidence?
Koh-Young Zenith USX buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Koh-Young Zenith USX Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Koh-Young Zenith USX. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Inspect visible component and solder-joint geometry on long electronics assemblies, with board support and the fitted 3D measurement program qualified together.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Koh-Young Zenith USX
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Koh-Young Zenith USX.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Koh-Young Zenith USX Spare Parts Scope
Request a unit-specific Koh-Young Zenith USX list for board support and conveyor parts, approved optical/calibration references and supported inspection software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, measurement method, installed configuration and destination, required accessories and desired inspection evidence for the proposed Koh-Young Zenith USX.
FAQ
Common questions for overseas buyers evaluating a Koh-Young Zenith USX.
01Application
Which production task suits Koh-Young Zenith USX?
Inspect visible component and solder-joint geometry on long electronics assemblies, with board support and the fitted 3D measurement program qualified together. Compare USX around board length, support and inspection program. Do not borrow Zenith UHS options or advertised speed without a USX configuration record.
02Configuration
What should a buyer confirm for Koh-Young Zenith USX?
USX serial, standard or extended conveyor, board supports, optics and KSMART/license inventory. Request the exact nameplate and option list.
03Unit evidence
Does this Koh-Young Zenith USX illustration prove stock?

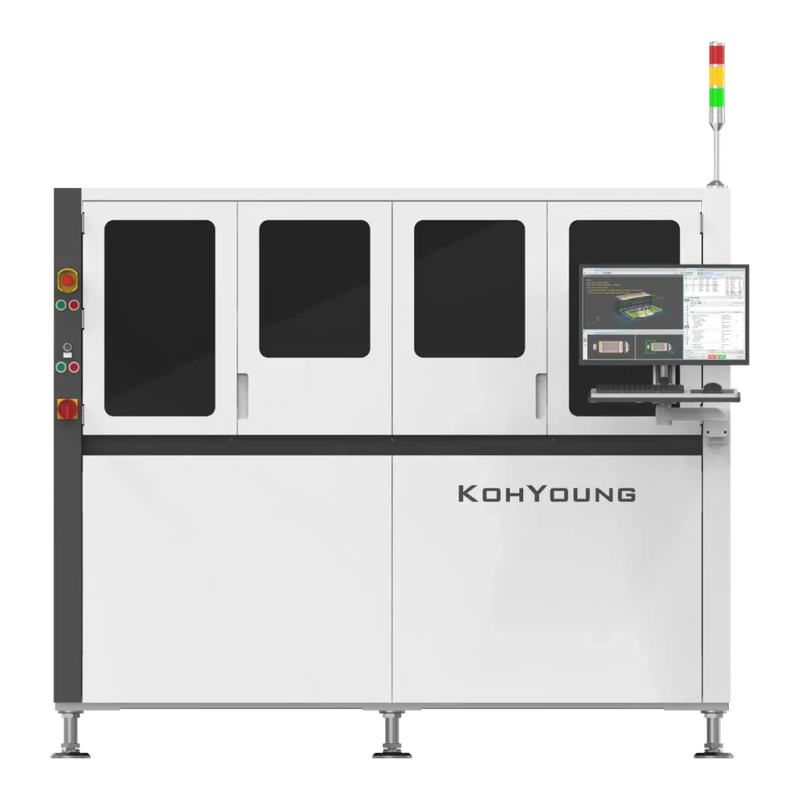

The Koh-Young Zenith USX illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Koh-Young Zenith USX unit.
Send Your Koh-Young Zenith USX Production Requirement
Share target assembly, process requirements, measurement method, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Koh-Young Zenith USX configuration is a practical match.
