OverviewMinghao MH520 3D Automated Optical Inspection (AOI) System
A generous top-side clearance gives the MH520 a practical starting point when tall assemblies need inline solder-joint and component inspection.
Manufacturer-published model data
Minghao MH520 Technical Specifications
| Board handling | 50 × 50 mm to 510 × 400 mm |
|---|---|
| Board thickness | 0.5 mm to 6 mm |
| Clearance | Top 90 mm; bottom 60 mm |
| Imaging | 12 MP colour industrial camera below the board with RGB+W ring LED illumination |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Minghao MH520 unit.
Key Features
Configuration Must Be Verified
The actual Minghao MH520 quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Model focusInspection roleSingle-surface online PCBA solder inspection Workflow capabilityThe source material lists neural-network/image comparison functions, code recognition, mixed-board support and SPC output across this product family where stated. Line integrationConfirm the applicable SMEMA interface, conveyor configuration and width-adjustment method for the machine under review. Evidence boundaryPublished model information is planning input, not a substitute for application validation, calibration records or a live inspection result.
Why MH520 Belongs in an AOI Shortlist
A generous top-side clearance gives the MH520 a practical starting point when tall assemblies need inline solder-joint and component inspection.
Brochure visual guide
From 3D Capture to Defect Decision
Shared Minghao-series reference diagrams. Click any image to inspect the source artwork at a larger size.
01 · 3D measurement
Multi-view coordinates turn surface height into inspection data
The brochure illustrates a projector working with two camera views. Its stated goal is to suppress depth-map outliers through multi-view phase consistency before the system judges a feature.
Translation note: the visual explains the measurement concept; it does not guarantee a result for every board, material or programmed defect class.
02 · Reflection handling
Separate direct and indirect reflections before evaluating height
The source diagram describes multiple-reflection compensation and high-frequency stripe suppression. In practical terms, the inspection program needs usable 3D data around reflective solder joints and component geometry.
Confirm the installed lighting, algorithm option, program criteria and calibration process for the actual application.
03 · AI-assisted programming
Use trained component and solder-joint examples to shorten setup work
The brochure describes deep learning, data optimization and one-click recognition of trained components and solder joints. This section is presented as a programming and review concept, not as a claim that every defect can be recognised without application-specific training.
The buyer should verify the available software version, library, training workflow and false-call review process.
04 · Defect examples
Translate the image into a reviewable defect library
The source examples depict wrong component, reversed component, lifted component, silkscreen issue, standing component, missing component, offset, lifted lead, solder bridging, virtual soldering and solder bead conditions.
Use these examples to start a defect-library discussion; the final programmed coverage depends on the component package, solder finish, board design, image quality and acceptance criteria.
Buyer decision guide
When Minghao MH520 Makes Sense — and When It May Not
Minghao MH520 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Minghao MH520
Minghao MH520 should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Minghao MH520 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Does the required board range fit the documented 50 × 50 mm to 510 × 400 mm envelope for MH520?
Minghao MH520 buyers should confirm this with actual-machine evidence before quotation.
2
Which solder, component, marking or surface defect classes must the MH520 program cover?
Minghao MH520 buyers should confirm this with actual-machine evidence before quotation.
3
Which software, line interface, calibration and running evidence is required before an equipment decision?
Minghao MH520 buyers should confirm this with actual-machine evidence before quotation.
Source image

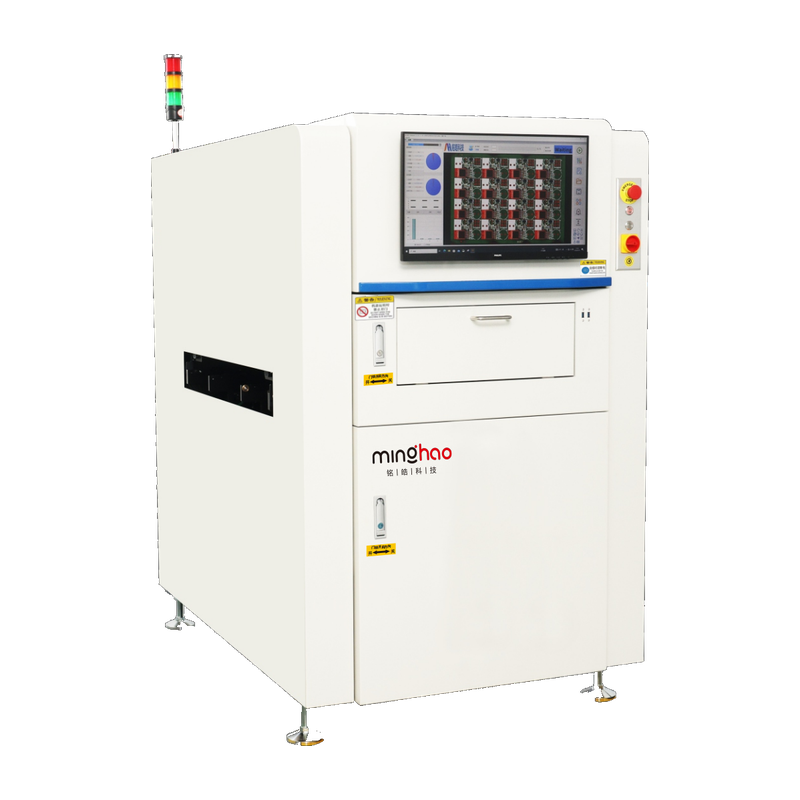

MH520 Machine Reference
Extracted from the user-supplied Minghao brochure, then processed locally as a transparent reference image. It is not a claim of LCSMT inventory.
Brochure machine reference
Running video
Running Video Confirmation for Minghao MH520
A running-video area is prepared for this model. No video file is attached to this local review page yet, so the image shown is a brochure-derived machine reference rather than simulated operating footage.
- Power-on and HMI response
- Board transfer and inspection cycle
- Representative defect-result review
Running video area readyReal model-specific operating video can be added here after review.
Used-machine inspection
Inspection and Export Preparation for an Actual Minghao MH520
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Placement hardwareHead, nozzle, feeder, camera and motion condition relevant to the quoted Minghao MH520.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Minghao MH520 Spare Parts Scope
Request a unit-specific Minghao MH520 list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed Minghao MH520.
FAQ
Common questions for overseas buyers evaluating a Minghao MH520.
01Source basis
What is this MH520 page based on?
It translates the user-supplied Minghao PDF and keeps its published configuration information separate from a machine-specific quotation.
02Application fit
Do the source figures prove a particular assembly will pass?
No. Board design, program criteria, defect library, lighting configuration and calibration must be validated against the intended process.
03Availability
Does this page claim an available machine?
No. It is a local review page only; availability, condition, options and delivery require confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Minghao MH520 unit.
Send Your Minghao MH520 Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual Minghao MH520 configuration is a practical match.
