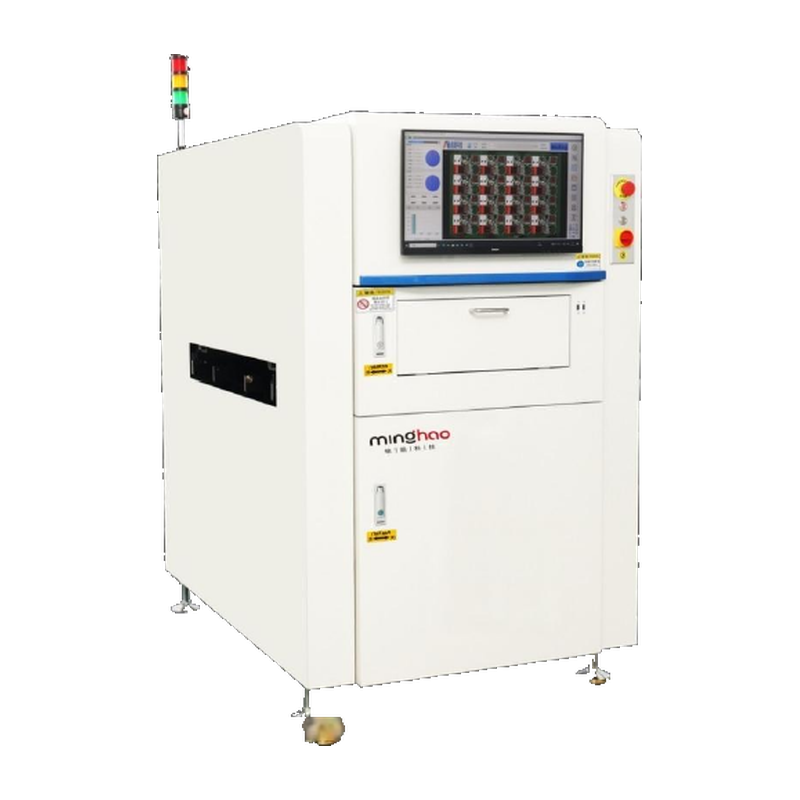

Standard inline configuration
MH550
- PCB range
- 50 × 50 to 510 × 460 mm
- Machine dimensions
- 1120 × 1410 × 1611 mm
- Approximate mass
- 880 kg
- Rated power
- 2 kVA
Home / Minghao SMT Machines / Minghao MH550
Manufacturer-reference buyer guide
OverviewMinghao MH550 3D AOI Family
Inline 3D component and solder-joint inspection. Compare the standard, DH and long-board DL versions below before choosing the board envelope and installation footprint.
One family · configuration choices
Compare MH550 versions
Inline 3D component and solder-joint inspection. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Different conveyor / board envelope
MH550DH
- PCB range
- 50 × 50 to 510 × 275 mm / 510 × 600 mm; confirm operating mode
- Machine dimensions
- 1120 × 1610 × 1611 mm
- Approximate mass
- 1100 kg
- Rated power
- 2.5 kVA
Long-board configuration
MH550DL
- PCB range
- 50 × 50 to 1200 × 460 mm
- Machine dimensions
- 2320 × 1410 × 1611 mm
- Approximate mass
- 1250 kg
- Rated power
- 2.5 kVA
What the versions share
- PCB thickness
- 0.5–6 mm
- Component clearance
- 40 mm top / 40 mm bottom
- Camera
- 12 MP
- Illumination
- RGB+W; four-direction structured light
- Resolution
- 10 / 15 µm
- Published cycle
- 0.55 s/FOV
Translated from the manufacturer brochure, pages 2, 4, 5, 6. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. Shared family machine reference; the source drawing on page 3 is labelled MH500 and is not used as exact-model proof. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Minghao MH550 Standard Configuration
| PCB thickness | 0.5–6 mm |
|---|---|
| Component clearance | 40 mm top / 40 mm bottom |
| Camera | 12 MP |
| Illumination | RGB+W; four-direction structured light |
| Resolution | 10 / 15 µm |
| Published cycle | 0.55 s/FOV |
| PCB range | 50 × 50 to 510 × 460 mm |
| Machine dimensions | 1120 × 1410 × 1611 mm |
| Approximate mass | 880 kg |
| Rated power | 2 kVA |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Minghao MH550 unit.
