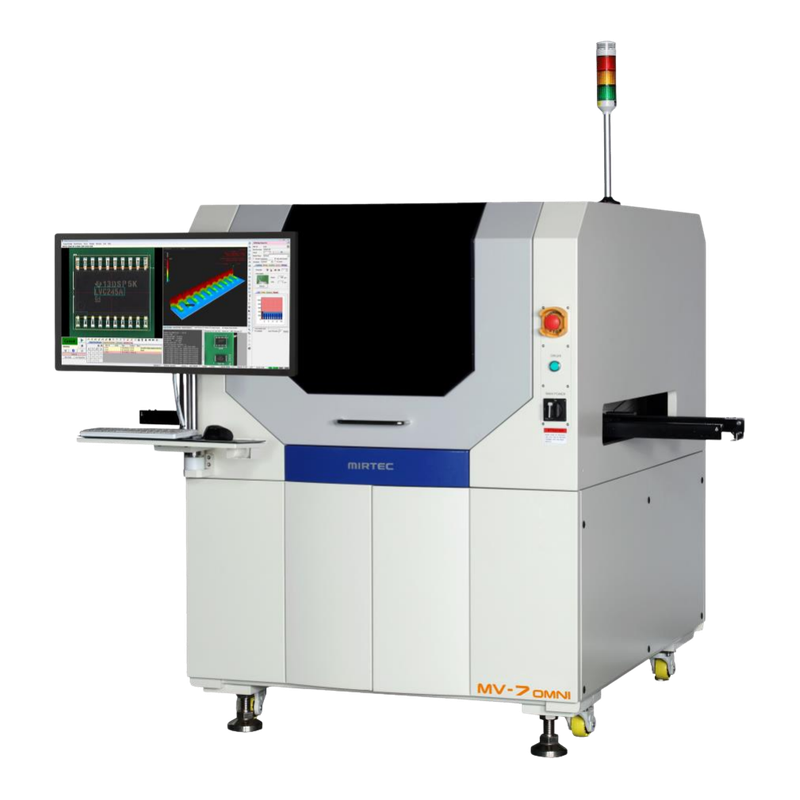

Reference image; standard board chassis
MV-7 OMNI
- Board
- 50 × 50 to 510 × 460 mm
- Indexed
- Optional 1,020 × 460 mm
- Boundary
- Verify camera, supports, indexing and licenses
Home / MIRTEC Equipment / MIRTEC MV-7 OMNI Series
Model guide · unit evidence required
OverviewMIRTEC MV-7 OMNI Series 3D Automated Optical Inspection
MIRTEC MV-7 OMNI is an inline 3D AOI family. This guide compares the ordinary MV-7 and larger-board MV-7U chassis using the manufacturer REV9 data sheet. The labelled MV-7 reference image does not establish an offered unit's camera, conveyor or licenses. Select MV-7 OMNI around visible-joint access, board size and repeatable defect discrimination. Do not apply another MIRTEC generation's light phases, mechanical clearance or optional shuttle conveyor to this family.
One family · configuration choices
Compare MV-7 OMNI Series versions
Blue-light multi-frequency moire projection measures visible component and solder geometry. Top-camera sampling, illumination and fitted oblique cameras determine the inspection task; optical inspection does not establish hidden BGA joint integrity. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Larger-board chassis in the same family
MV-7U OMNI
- Board
- 60 × 60 to 660 × 610 mm
- Indexed
- Optional 1,320 × 610 mm
- Boundary
- Do not treat the MV-7 image as a photograph of the U chassis
What the versions share
- Process
- 3D Automated Optical Inspection
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.
Manufacturer evidence checked 2026-10-06; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative MV-7 OMNI Series image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
MIRTEC MV-7 OMNI Series Technical Specifications
| Rev9 camera choices | 15 or 25 megapixels CXP; identify the fitted camera |
|---|---|
| Rev9 optical sampling | 15 or 10 micrometres with 15 MP; 7.7 micrometres with 25 MP |
| 3d measurement range | 25 mm with published ±3 micrometres accuracy; this is not transport clearance |
| Standard board envelope | MV-7: 50 × 50 to 510 × 460 mm; MV-7U: 60 × 60 to 660 × 610 mm |
| Indexed-board option | Up to 1,020 × 460 mm on MV-7 or 1,320 × 610 mm on MV-7U; verify fitted indexing |
| Board thickness and mass | 0.5–3 mm standard; 5 mm thickness optional; published board mass 4 kg |
| Power and air reference | 200–240 V single phase, 50/60 Hz, 1.1 kW; 0.5 MPa air in REV9 |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used MIRTEC MV-7 OMNI Series unit.
Key Features
Configuration Must Be Verified
The offer must identify MV-7/MV-7U nameplate, camera sampling, projectors, side-view cameras, board supports, indexing and licensed review/programming functions; Known-defect challenge, reflective joints, tall components, false calls, full-board cycle, retained images and recipe recovery.
Buyer decision guide
When MIRTEC MV-7 OMNI Series Makes Sense — and When It May Not
MIRTEC MV-7 OMNI Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
MIRTEC MV-7 OMNI Series Acceptance Plan
Choose a measurement task before a resolution
An MV-7 OMNI enquiry should include the visible joints, reflective packages and tall components that make your assembly difficult. Agree known-good and known-defect examples and retain the measured height, top images and any side views used to decide each result. Keep the fitted camera and optical sampling beside the record. A smaller catalogue sampling figure is not proof that every defect will be found, and a successful optical trial cannot establish solder connections concealed under an opaque package.
Keep board handling separate from optical height
Identify MV-7 or MV-7U from the nameplate and conveyor before using the REV9 board table. The larger U chassis is a family version, not an ordinary MV-7 software setting. Long-board indexing is an optional configuration and should be demonstrated with the populated assembly and required support. The 25 mm published 3D measurement range must not be substituted for mechanical transport clearance. Ask for serial-specific underside and top-side clearance and a board transfer test with obstacles represented.
Request installed options and recoverable evidence
Photograph the optical hardware and retain software, review and programming license identification from the offered serial. If side-view inspection, multi-focus measurement, ePM, ODB++ import or remote review is offered, demonstrate that function using an agreed board recipe. The REV9 brochure also contains an MV-6DL shuttle reference; it is not assigned to MV-7 here. Guangdong MERAIF and Dongguan Seiki provide exact-model enquiry evidence only. Seiki was observed through a dated indexed catalogue; neither supplier was contacted and no live stock, condition or license transfer is asserted.
Typical Applications
Typical Applications for MIRTEC MV-7 OMNI Series
MIRTEC MV-7 OMNI Series should be evaluated against the buyer’s blue-light multi-frequency moire projection measures visible component and solder geometry. top-camera sampling, illumination and fitted oblique cameras determine the inspection task; optical inspection does not establish hidden bga joint integrity. The final application fit depends on the evidence for the specific unit.
Before quotation
Three MIRTEC MV-7 OMNI Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which rev9 camera choices requirement must the proposed MIRTEC MV-7 OMNI Series demonstrate?
MIRTEC MV-7 OMNI Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this MIRTEC MV-7 OMNI Series offer: mv-7/mv-7u nameplate, camera sampling, projectors, side-view cameras, board supports, indexing and licensed review/programming functions?
MIRTEC MV-7 OMNI Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the MIRTEC MV-7 OMNI Series acceptance run document known-defect challenge, reflective joints, tall components, false calls, full-board cycle, retained images and recipe recovery?
MIRTEC MV-7 OMNI Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
MIRTEC MV-7 OMNI Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered MIRTEC MV-7 OMNI Series. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Blue-light multi-frequency moire projection measures visible component and solder geometry. Top-camera sampling, illumination and fitted oblique cameras determine the inspection task; optical inspection does not establish hidden BGA joint integrity.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual MIRTEC MV-7 OMNI Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted MIRTEC MV-7 OMNI Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
MIRTEC MV-7 OMNI Series Spare Parts Scope
Request a unit-specific MIRTEC MV-7 OMNI Series list for serial-correct optical calibration references, conveyor and support items, illumination components and authorized software backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, rev9 camera choices, installed configuration and destination, required accessories and desired inspection evidence for the proposed MIRTEC MV-7 OMNI Series.
FAQ
Common questions for overseas buyers evaluating a MIRTEC MV-7 OMNI Series.
01Application
Which production task suits MIRTEC MV-7 OMNI Series?
Blue-light multi-frequency moire projection measures visible component and solder geometry. Top-camera sampling, illumination and fitted oblique cameras determine the inspection task; optical inspection does not establish hidden BGA joint integrity. Select MV-7 OMNI around visible-joint access, board size and repeatable defect discrimination. Do not apply another MIRTEC generation's light phases, mechanical clearance or optional shuttle conveyor to this family.
02Configuration
What should a buyer confirm for MIRTEC MV-7 OMNI Series?
MV-7/MV-7U nameplate, camera sampling, projectors, side-view cameras, board supports, indexing and licensed review/programming functions. Request the exact nameplate and option list.
03Unit evidence
Does this MIRTEC MV-7 OMNI Series illustration prove stock?
The MIRTEC MV-7 OMNI Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular MIRTEC MV-7 OMNI Series unit.
Send Your MIRTEC MV-7 OMNI Series Production Requirement
Share target assembly, process requirements, rev9 camera choices, installed configuration and destination and inspection expectations. LCSMT can review whether an actual MIRTEC MV-7 OMNI Series configuration is a practical match.
