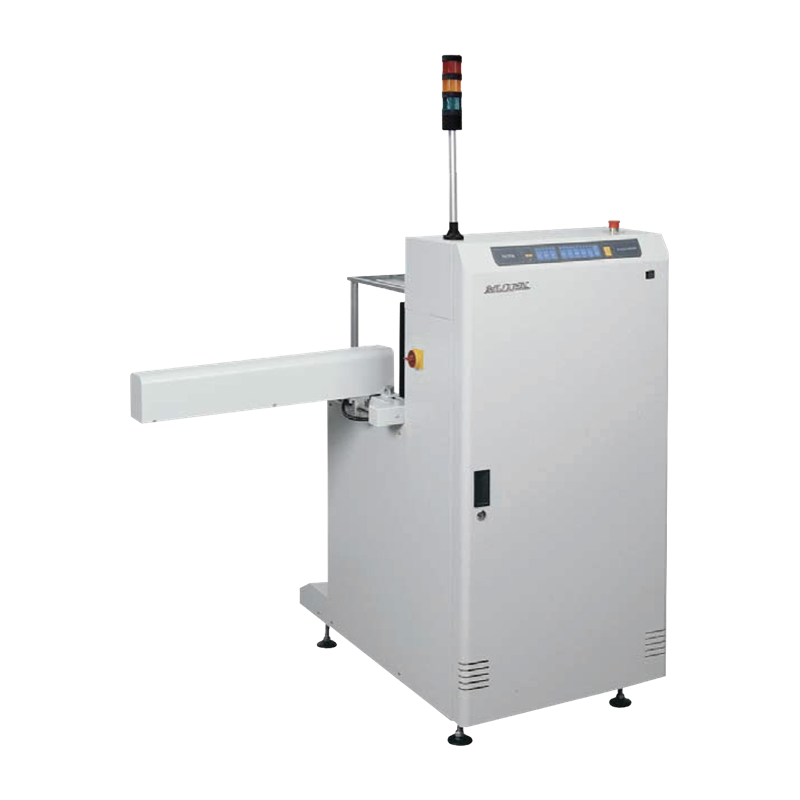

OverviewNTM 710 Single Magazine PCB Loader
Nutek NTM 710 is a single magazine loader for PCB-line entry. This local review draft separates the manufacturer’s published sizes and options from the configuration, direction, interface and condition of a particular used machine.
Manufacturer-published model data
NTM 710 Technical Specifications
| Loading function | Nutek states that the single magazine loader automatically pushes PCBs from a magazine onto the downstream conveyor. |
|---|---|
| Published interface | The official page lists SMEMA as the machine interface and a 950 mm ± 25 mm transfer height, subject to specification. |
| Published utilities | Nutek lists 230 VAC/50 Hz/1 Ph, 350 VA maximum, 6 bar air and 10 l/min maximum air consumption. |
| Size-dependent board range | The M, L and XL NTM 710 variants have different published PCB and magazine dimensions; confirm the offered suffix before purchase. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used NTM 710 unit.
Key Features
Configuration Must Be Verified
The actual NTM 710 quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When NTM 710 Makes Sense — and When It May Not
NTM 710 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for NTM 710
NTM 710 should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three NTM 710 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which magazine dimensions, PCB length/width and loading cadence must the NTM 710 support?
NTM 710 buyers should confirm this with actual-machine evidence before quotation.
2
Which NTM 710 size suffix, flow direction, fixed rail, interface and width-adjustment options are installed?
NTM 710 buyers should confirm this with actual-machine evidence before quotation.
3
What pusher, clamp, sensor, utility, running and packing evidence is required before shipment?
NTM 710 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
NTM 710 Running Video Review
Before shipment, review magazine loading, pneumatic pusher movement, transfer and visible condition for the specific offered unit.
Use the video to verify the quoted NTM 710 magazine, pusher and transfer sequence on the actual unit; it is evidence, not a universal configuration claim.
- Power-on and magazine-load cycle
- Pusher and conveyor transfer confirmation
- Safety, status-indicator and condition evidence
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual NTM 710
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Placement hardwareHead, nozzle, feeder, camera and motion condition relevant to the quoted NTM 710.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
NTM 710 Spare Parts Scope
Request a unit-specific NTM 710 list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed NTM 710.
FAQ
Common questions for overseas buyers evaluating a NTM 710.
01Board range
Does NTM 710 have one universal PCB-size limit?
No. Nutek lists separate M, L and XL configurations with different dimensions.
02Utilities
Are the published power and air figures enough for installation?
They are planning inputs; confirm the offered unit’s nameplate and utility requirements.
03Condition
What should a used-loader inspection cover?
Check magazine platform, clamps, pusher, conveyor, sensors, HMI, interface and a live loading cycle.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular NTM 710 unit.
Send Your NTM 710 Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual NTM 710 configuration is a practical match.
