OverviewOmron VT-S530 Dual-lane 3D Optical Inspection
Omron VT-S530 is a pre- or post-reflow AOI platform combining colour-highlight inspection with phase-shift 3D measurement. Its dual-lane handling supports line integration without turning a solder-joint image into proof of a hidden connection. Shortlist VT-S530 for documented pre/post-reflow and board-handling requirements. Do not borrow the oblique-inspection capabilities of VT-S730 or assume a photographed cabinet includes every software option.
Manufacturer-published model data
Omron VT-S530 Technical Specifications
| Camera | 12 MP camera in the manufacturer VT-S530 catalogue |
|---|---|
| Factory pixel-resolution choices | 10 or 15 micrometres; verify the offered configuration |
| Maximum board size | 510 × 330 mm on each of two lanes; 510 × 680 mm in single-lane use |
| Board thickness | 0.4–4 mm |
| Component clearance | 50 mm above and below the PCB in the manufacturer table |
| Height measurement range | 25 mm; component clearance is not the same as measurable height |
| Minimum board size | 50 × 50 mm |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Omron VT-S530 unit.
Key Features
Configuration Must Be Verified
The offer must identify VT-S530 serial, installed 10/15 micrometre setting, conveyor mode, supports, software version and licensed review stations; Actual-board joint measurements, known defects, false-call review, barcode association, lane transfer and program recovery.
Buyer decision guide
When Omron VT-S530 Makes Sense — and When It May Not
Omron VT-S530 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Omron VT-S530 Acceptance Plan
Choose a measurable solder-joint task
For VT-S530 acceptance, bring known-good assemblies and retained challenge joints from the intended process. Define the dimensions and thresholds that make a joint acceptable, including the review method for disputed calls. A colour image and a 3D reconstruction answer different questions; retain both where they support the decision. Visible fillets can be evaluated optically, but an AOI result does not prove a concealed BGA connection or replace a separate electrical test.
Qualify both conveyor modes
Record which rail and board-support arrangement is actually installed. The published two-lane envelope is 510 by 330 mm per lane, while the wider single-lane arrangement is a different operating mode. Witness transfer, underside clearance and loaded-board support with the required panel. Ask for the inspected area, camera resolution, program and complete cycle time from the same trial. Do not combine the finest pixel setting with an unrelated maximum-speed demonstration.
Keep software and machine condition in the offer
Identify the supplied offline programming and review terminals, Q-upSystem functions, licenses and supported computer recovery. Ask the seller to preserve program backups and board-identity links to inspection results. The manufacturer reference image is not a dated photograph of the offered serial. A current Shenzhen supplier listing establishes an enquiry route only; its warranty, stock, certification and delivery statements are not adopted as LCSMT promises. Request dated maintenance, calibration, location and running evidence before agreeing the purchase.
Typical Applications
Typical Applications for Omron VT-S530
Omron VT-S530 should be evaluated against the buyer’s measure visible component position and solder-joint geometry on populated boards, using defined acceptance thresholds and the actual single- or dual-lane program. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Omron VT-S530 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which camera requirement must the proposed Omron VT-S530 demonstrate?
Omron VT-S530 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Omron VT-S530 offer: vt-s530 serial, installed 10/15 micrometre setting, conveyor mode, supports, software version and licensed review stations?
Omron VT-S530 buyers should confirm this with actual-machine evidence before quotation.
3
Can the Omron VT-S530 acceptance run document actual-board joint measurements, known defects, false-call review, barcode association, lane transfer and program recovery?
Omron VT-S530 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Omron VT-S530 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Omron VT-S530. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Measure visible component position and solder-joint geometry on populated boards, using defined acceptance thresholds and the actual single- or dual-lane program.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Omron VT-S530
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Omron VT-S530.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Omron VT-S530 Spare Parts Scope
Request a unit-specific Omron VT-S530 list for approved optical references, lighting and conveyor service items, board supports and authorized programming/review software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, camera, installed configuration and destination, required accessories and desired inspection evidence for the proposed Omron VT-S530.
FAQ
Common questions for overseas buyers evaluating a Omron VT-S530.
01Application
Which production task suits Omron VT-S530?
Measure visible component position and solder-joint geometry on populated boards, using defined acceptance thresholds and the actual single- or dual-lane program. Shortlist VT-S530 for documented pre/post-reflow and board-handling requirements. Do not borrow the oblique-inspection capabilities of VT-S730 or assume a photographed cabinet includes every software option.
02Configuration
What should a buyer confirm for Omron VT-S530?
VT-S530 serial, installed 10/15 micrometre setting, conveyor mode, supports, software version and licensed review stations. Request the exact nameplate and option list.
03Unit evidence

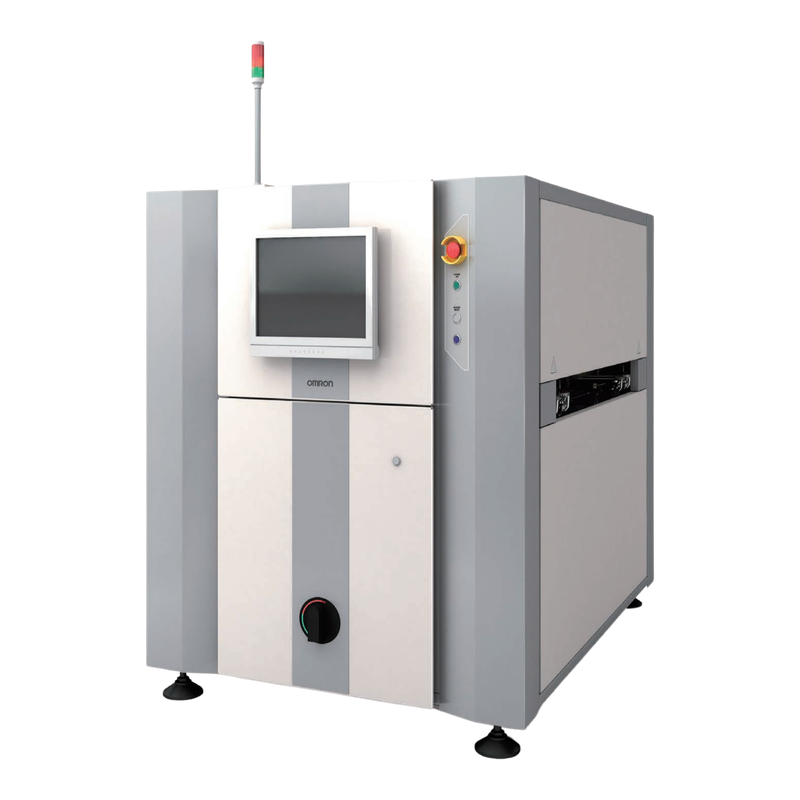

Does this Omron VT-S530 illustration prove stock?
The Omron VT-S530 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Omron VT-S530 unit.
Send Your Omron VT-S530 Production Requirement
Share target assembly, process requirements, camera, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Omron VT-S530 configuration is a practical match.
