OverviewPanasonic NPM-TT2 Production modular placement machine
Panasonic production modular intended for efficient placement of odd-form and tray-fed components. Useful when odd-form parts and tray supply are central to the production mix; verify the installed tray and lane hardware before quoting.
Manufacturer-published model data
Panasonic NPM-TT2 Technical Specifications
| Pcb single lane pc | L50–510 × W50–590 mm |
|---|---|
| Pcb dual lane pc | L50–510 × W50–300 mm |
| Maximum catalog speed | 18,000 cph/head |
| Catalog accuracy | ±40 µm/chip (Cpk≥1) |
| Maximum component supply | 120 types at 4/8 mm tape-width equivalent |
Family scope: NPM-TT / NPM-TT2. The figures and illustration on this page identify NPM-TT2. Earlier versions or other head/lane configurations require their own specification evidence; these figures must not be transferred between suffixes.
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic NPM-TT2 unit.
Key Features
Configuration Must Be Verified
The offered Panasonic NPM-TT2 must document installed tray feeders and head type; asf/apc options.
Buyer decision guide
When Panasonic NPM-TT2 Makes Sense — and When It May Not
Panasonic NPM-TT2 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Plan the Tray-Fed Workload
Start with the tray map
For Panasonic NPM-TT2 selection, list package dimensions, pickup orientation, pocket pitch and the number of trays needed per product. Separate frequent-use packages from occasional connectors. Obtain the installed tray-server layout and verify that changeover access matches the intended operator workflow.
Balance the two lanes
An NPM-TT2 catalogue head speed does not describe the bottleneck of a mixed assembly. Review the placement program by package, feeder location and recognition method, then witness representative replenishment and a product switch. Include loading, rejected pickups and recovery in the observed cycle rather than timing only successful placements.
Inspect fragile and irregular parts
Use NPM-TT2 trial samples from the intended component lot. Examine lead shape and coplanarity before and after handling, record nozzle and pickup settings, and inspect orientation at board exit. Check whether the proposed camera and tooling can recognize the package without operator intervention.
Freeze the supplied package
For the NPM-TT2 offer, identify tray hardware, head types, compatible tape feeders and installed licenses individually. Photograph included accessories and save the program revision used in the trial. A front-view machine image cannot establish the completeness of that package.
Typical Applications
Typical Applications for Panasonic NPM-TT2
SMT lines requiring mixed tape/stick/tray supply and dual-lane placement; compare tray-feeder arrangements with the actual line configuration. Confirm the board program and actual-unit configuration before a purchase decision.
Before quotation
Three Panasonic NPM-TT2 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb single lane pc requirement does the target board need, and can the offered Panasonic NPM-TT2 demonstrate it?
Panasonic NPM-TT2 buyers should confirm this with actual-machine evidence before quotation.
2
Which configuration is included: installed tray feeders and head type?
Panasonic NPM-TT2 buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative trial verify this process: smt lines requiring mixed tape/stick/tray supply and dual-lane placement; compare tray-feeder arrangements with the actual line configuration?
Panasonic NPM-TT2 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Panasonic NPM-TT2 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.

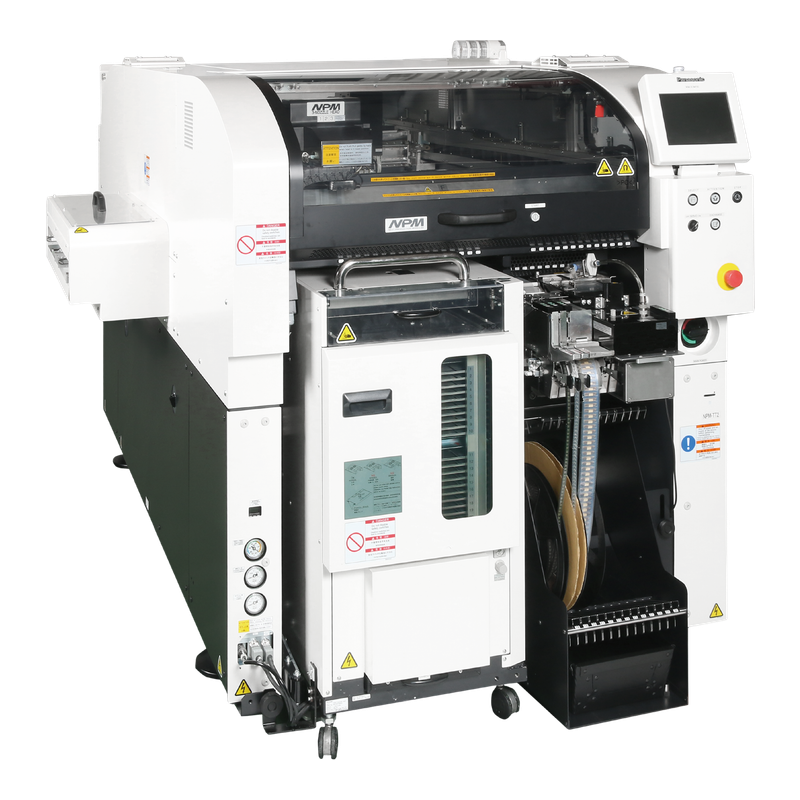

The image is a model reference. The orange control requests actual-unit running evidence; no reviewed recording is attached.
- Power-on and visible operating-state confirmation
- SMT lines requiring mixed tape/stick/tray supply and dual-lane placement; compare tray-feeder arrangements with the actual line configuration.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Panasonic NPM-TT2
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Panasonic NPM-TT2.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Panasonic NPM-TT2 Spare Parts Scope
Request a unit-specific Panasonic NPM-TT2 list for nozzles, feeders, camera assemblies, conveyor belts and head maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide target board and process, pcb single lane pc, installed configuration, power and destination, required accessories and desired inspection evidence for the proposed Panasonic NPM-TT2.
FAQ
Common questions for overseas buyers evaluating a Panasonic NPM-TT2.
01Process
Where does the Panasonic NPM-TT2 fit in the line?
SMT lines requiring mixed tape/stick/tray supply and dual-lane placement; compare tray-feeder arrangements with the actual line configuration.
02Configuration
What must be confirmed for a used Panasonic NPM-TT2?
Installed tray feeders and head type; ask for the actual nameplate and configuration list.
03Availability
Is this Panasonic NPM-TT2 image evidence of current stock?
No. It is a manufacturer model reference. Current serial, location, condition, dated running evidence and a quotation require confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Panasonic NPM-TT2 unit.
Send Your Panasonic NPM-TT2 Production Requirement
Share target board and process, pcb single lane pc, installed configuration, power and destination and inspection expectations. LCSMT can review whether an actual Panasonic NPM-TT2 configuration is a practical match.
