OverviewPanasonic NPM-VF Odd-form component insertion machine
Panasonic flexible odd-form insertion platform with optional SMT-component capability. Match installed insertion tools, feeder types, component geometry and optional anvil/clinch hardware to the buyer's through-hole workload.
Manufacturer-published model data
Panasonic NPM-VF Technical Specifications
| Pcb standard | L50–510 × W50–460 mm |
|---|---|
| Pcb anvil option | L50–460 × W50–400 mm |
| Maximum insertion speed | 0.65 s/component with 3-station head or 0.9 s/component with 2-station head |
| Maximum component mass | 200 g |
| Maximum insertion force | 100 N |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic NPM-VF unit.
Key Features
Configuration Must Be Verified
The Panasonic NPM-VF offer must document Installed head, feeder, clinch and anvil options; Actual tact, condition, service history and running proof.
Buyer decision guide
When Panasonic NPM-VF Makes Sense — and When It May Not
Panasonic NPM-VF selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Panasonic NPM-VF Acceptance Plan
Qualify leads and insertion force
For NPM-VF, obtain part drawings showing lead spacing, seating height, allowed insertion force and polarity. Inspect incoming and inserted components from the same lot. Ask for the tool and feeder used in the demonstration; a successful run with an easier connector does not establish compatibility with the intended part.
Account for the anvil option
The NPM-VF optional anvil configuration has a different published board envelope from the standard transport. Compare the underside tooling, clinch requirement and board support with the quoted hardware. Record any component that needs manual intervention and check the remaining line work rather than treating the nominal insertion cycle as finished-board throughput.
Typical Applications
Typical Applications for Panasonic NPM-VF
Automates insertion of odd-form through-hole components that would otherwise require manual handling. Match installed insertion tools, feeder types, component geometry and optional anvil/clinch hardware to the buyer's through-hole workload.
Before quotation
Three Panasonic NPM-VF Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb standard requirement must the proposed Panasonic NPM-VF demonstrate?
Panasonic NPM-VF buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Panasonic NPM-VF offer: installed head, feeder, clinch and anvil options?
Panasonic NPM-VF buyers should confirm this with actual-machine evidence before quotation.
3
Can the Panasonic NPM-VF acceptance run document actual tact, condition, service history and running proof?
Panasonic NPM-VF buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Panasonic NPM-VF Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Panasonic NPM-VF. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Automates insertion of odd-form through-hole components that would otherwise require manual handling.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Panasonic NPM-VF
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Panasonic NPM-VF.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Panasonic NPM-VF Spare Parts Scope
Request a unit-specific Panasonic NPM-VF list for matched head tools, nozzles, feeders, recognition hardware, transport belts and board supports. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, pcb standard, installed configuration and destination, required accessories and desired inspection evidence for the proposed Panasonic NPM-VF.
FAQ
Common questions for overseas buyers evaluating a Panasonic NPM-VF.
01Application
Which production task suits Panasonic NPM-VF?
Automates insertion of odd-form through-hole components that would otherwise require manual handling. Match installed insertion tools, feeder types, component geometry and optional anvil/clinch hardware to the buyer's through-hole workload.
02Configuration
What should a buyer confirm for Panasonic NPM-VF?
Installed head, feeder, clinch and anvil options. Request the exact nameplate and option list.
03Unit evidence
Does this Panasonic NPM-VF illustration prove stock?

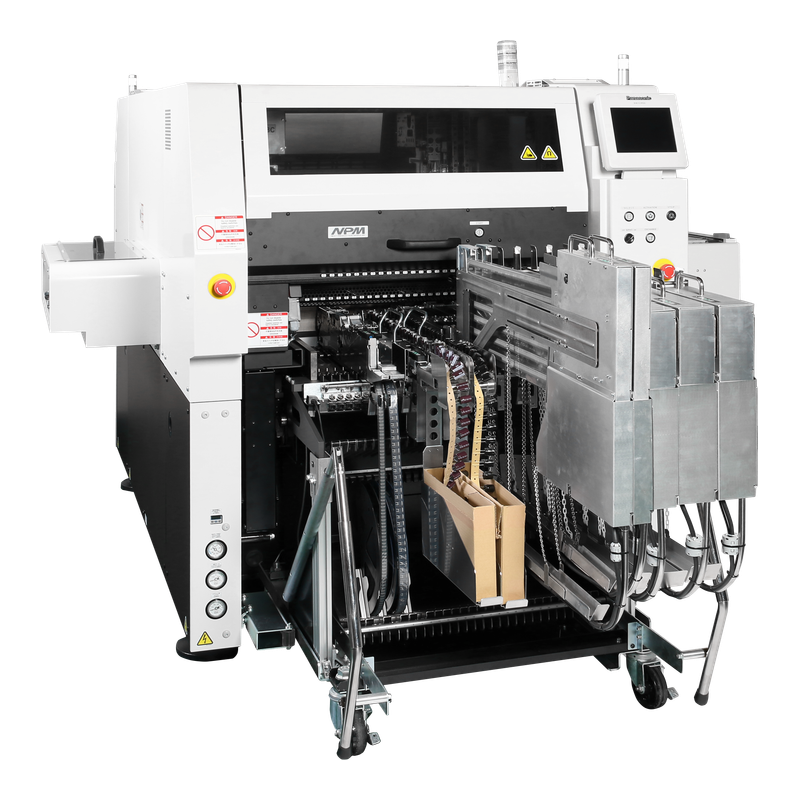

The Panasonic NPM-VF illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Panasonic NPM-VF unit.
Send Your Panasonic NPM-VF Production Requirement
Share target assembly, process requirements, pcb standard, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Panasonic NPM-VF configuration is a practical match.
