OverviewPanasonic NPM-WX Modular SMT Assembly Platform
The Panasonic NPM-WX is a modular SMT assembly platform for broad component mixes, where conveyor, head configuration and first-party unit evidence must guide the final decision.
Manufacturer-published model data
Panasonic NPM-WX Technical Specifications
| Published mounting capability | Up to 86,000 CPH as stated on the official product overview; configuration-dependent figures require confirmation. |
|---|---|
| Component range | From 0402 chips to large components up to L150 × W25 × T40 mm under the published conditions. |
| Board handling | Up to L750 × W610 mm in the applicable single-conveyor batch-mounting configuration. |
| Published accuracy | ±25 μm/chip at Cpk ≥ 1 under Panasonic’s published specification conditions. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic NPM-WX unit.
Key Features
Configuration Must Be Verified
The actual Panasonic NPM-WX quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When Panasonic NPM-WX Makes Sense — and When It May Not
Panasonic NPM-WX selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Panasonic NPM-WX
Panasonic NPM-WX should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Panasonic NPM-WX Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What board dimensions, component packages and height range must the Panasonic NPM-WX support?
Panasonic NPM-WX buyers should confirm this with actual-machine evidence before quotation.
2
Which 16-, 8-, 4- or 3-head configuration is installed on the candidate machine?
Panasonic NPM-WX buyers should confirm this with actual-machine evidence before quotation.
3
Which feeders, trays, line interfaces and inspection evidence must be supplied?
Panasonic NPM-WX buyers should confirm this with actual-machine evidence before quotation.
Machine images
Machine Images from Different Angles

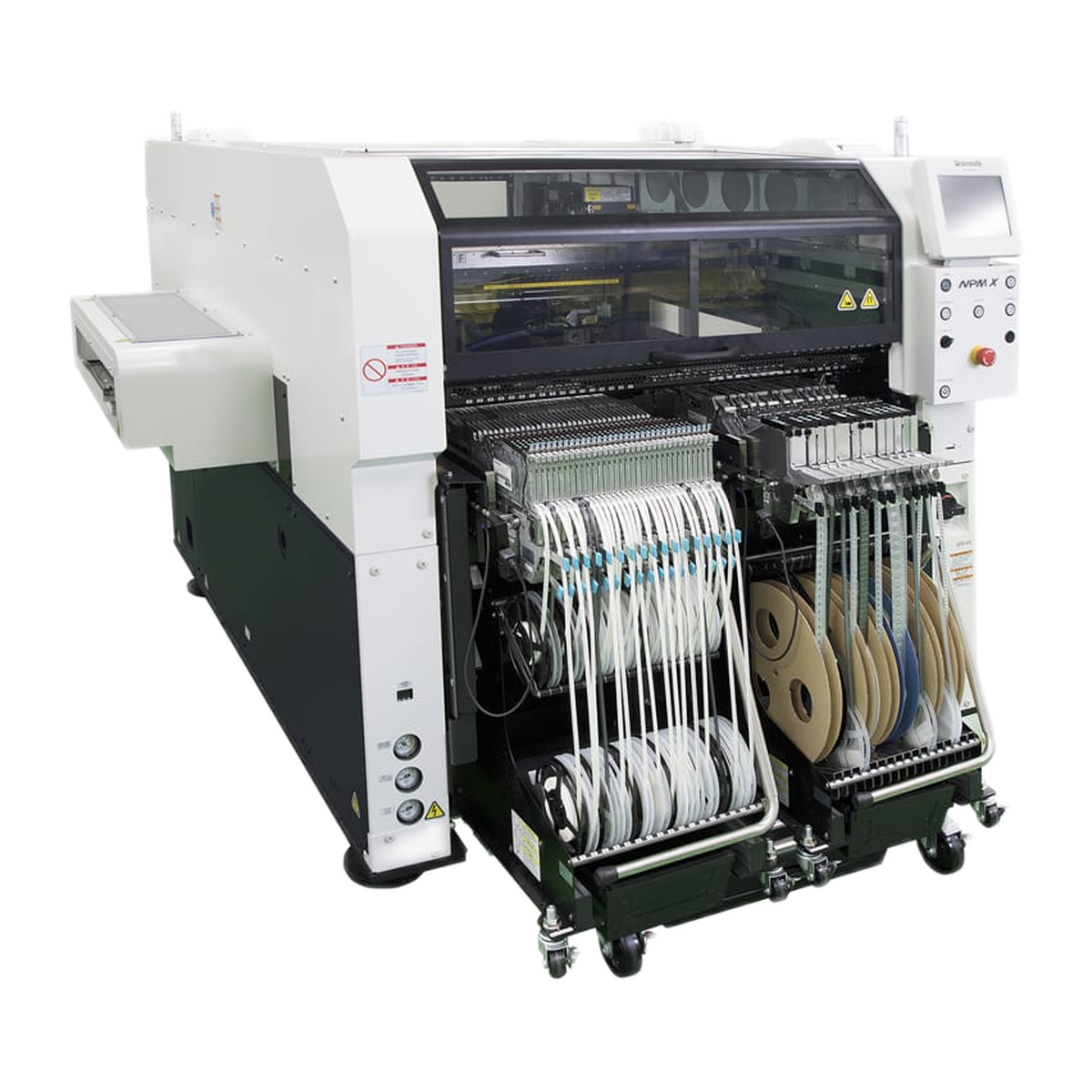

Processed official manufacturer reference images for Panasonic NPM-WX; actual LCSMT unit evidence remains required before quotation.

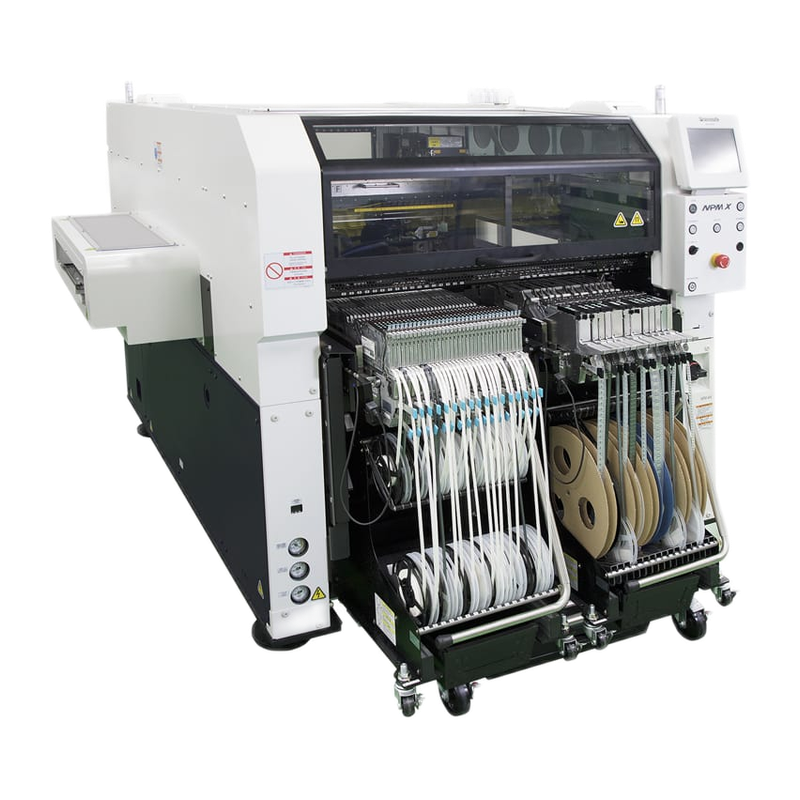

Main Machine View
Machine video
Actual Panasonic NPM-WX Running Proof
A manufacturer reference page cannot replace a video of the actual used unit being quoted.
Reference Video Slot
This V3 review page retains the video interface without presenting an unverified third-party video as unit proof.
Actual Unit Running Video
Request power-on, motion, conveyor and visible-condition proof for the proposed Panasonic NPM-WX.
Request Running Video Used-machine inspection
Inspection and Export Preparation for an Actual Panasonic NPM-WX
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Placement hardwareHead, nozzle, feeder, camera and motion condition relevant to the quoted Panasonic NPM-WX.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Panasonic NPM-WX Spare Parts Scope
Request a unit-specific Panasonic NPM-WX list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed Panasonic NPM-WX.
FAQ
Common questions for overseas buyers evaluating a Panasonic NPM-WX.
01Published capability
Does 86,000 CPH guarantee actual NPM-WX output?
No. The published figure is conditional; real output depends on the installed configuration, board, components and feeder plan.
02Board size
Can every NPM-WX handle L750 × W610 mm boards?
That limit is associated with an applicable single-conveyor batch-mounting configuration and must be checked for the offered unit.
03Quote scope
What should be confirmed before quotation?
Confirm nameplate, head configuration, feeders, software, condition, running proof, voltage and export preparation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Panasonic NPM-WX unit.
Send Your Panasonic NPM-WX Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual Panasonic NPM-WX configuration is a practical match.
