OverviewPanasonic RL132 Radial-lead component insertion machine
Panasonic high-speed radial-lead component insertion machine. Check radial-part pitch and actual 40/80-slot feeder variant rather than assuming the larger option is installed.
Manufacturer-published model data
Panasonic RL132 Technical Specifications
| Pcb standard | L50–508 × W50–381 mm |
|---|---|
| Maximum catalog speed | 0.14 s/component |
| Component inputs | 40 for NM-EJR5A; 80 or 40+40 for NM-EJR6A |
| Pitch | 2.5 or 5 mm standard; 7.5 or 10 mm optional |
| Insertion direction | 360° in 1° increments |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic RL132 unit.
Key Features
Configuration Must Be Verified
The offered Panasonic RL132 must document installed component-supply variant and optional board handling; condition, service history and running proof.
Buyer decision guide
When Panasonic RL132 Makes Sense — and When It May Not
Panasonic RL132 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Validate a High-Rate Radial Process
Measure an entire production cycle
For Panasonic RL132 selection, time a representative assembly including component supply, board indexing, error recovery and replenishment. The 0.14-second component figure is a manufacturer condition, not a promise of completed boards per hour. Compare observed output with the planned shift workload and downstream soldering capacity.
Audit pitch and orientation
Create an RL132 part list with tape format, lead spacing, polarity and insertion angle. Its published 360-degree orientation range uses one-degree increments; verify the actual program and tooling for each polarized capacitor, LED or transistor. Optional wider lead pitches must be supported by fitted hardware rather than inferred from the family name.
Identify the supply variant
An RL132 nameplate and feeder photographs should distinguish NM-EJR5A from NM-EJR6A. Ask the supplier to demonstrate the quoted loading or exchange arrangement, identify worn feed paths, and list accessories included with the machine. A larger supply package can change the replenishment workflow and should be evaluated as part of the quotation.
Inspect the resulting joint preparation
For an RL132 sample run, examine lead chucking, cut consistency, board support and underside termination. Retain a small set of numbered boards so defects can be traced to particular components and cycle events. If dense neighboring components prevent reliable access, compare the RG131-S guide-pin approach using the same assembly.
Typical Applications
Typical Applications for Panasonic RL132
Through-hole insertion of radial components such as electrolytic capacitors, LEDs and transistors. Confirm the board program and actual-unit configuration before a purchase decision.
Before quotation
Three Panasonic RL132 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb standard requirement does the target board need, and can the offered Panasonic RL132 demonstrate it?
Panasonic RL132 buyers should confirm this with actual-machine evidence before quotation.
2
Which configuration is included: installed component-supply variant and optional board handling?
Panasonic RL132 buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative trial verify this process: through-hole insertion of radial components such as electrolytic capacitors, leds and transistors?
Panasonic RL132 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Panasonic RL132 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.

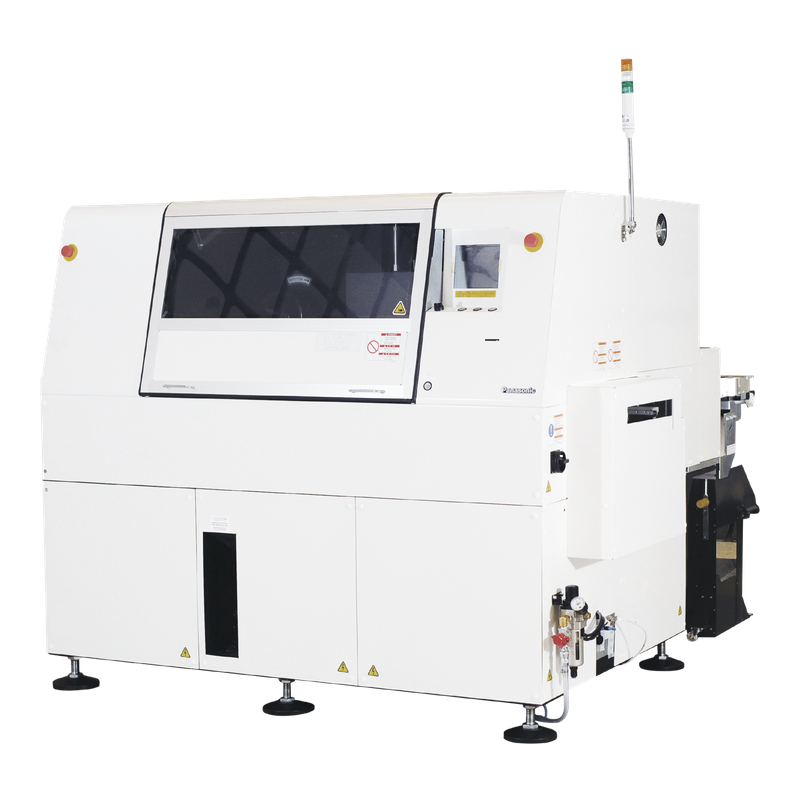

The image is a model reference. The orange control requests actual-unit running evidence; no reviewed recording is attached.
