Panasonic 1005 placement nozzles
Compare a supplier-listed 1005 placement-nozzle reference with the complete code required by your machine. Three catalogue references are retained separately, without an assumed equivalence.
Selected part reference
1005
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
1005 reference
KXFX037WA00
Photo unavailable for this model. Confirm its code and request an exact-item photo.
KXFX03E0A00
Photo unavailable for this model. Confirm its code and request an exact-item photo.
KXFW1AVAA00
Photo unavailable for this model. Confirm its code and request an exact-item photo.
- Model
- 1005 reference
- Part code
- 1005
- Fit
- Confirm by unit
01 / Select precisely
Compare the family variants
Compare complete part numbers, revisions and matching information.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| 1005 reference | 1005 | Supplier nozzle-designation reference; exact ordering-code mapping requires confirmation. |
|
| KXFX037WA00 | KXFX037WA00 | Separately listed code; no individually matched photograph or substitution approval. |
|
| KXFX03E0A00 | KXFX03E0A00 | Separately listed code; no individually matched photograph or substitution approval. |
|
| KXFW1AVAA00 | KXFW1AVAA00 | Separately listed code; no individually matched photograph or substitution approval. |
|
Application and identification
Use and ordering context

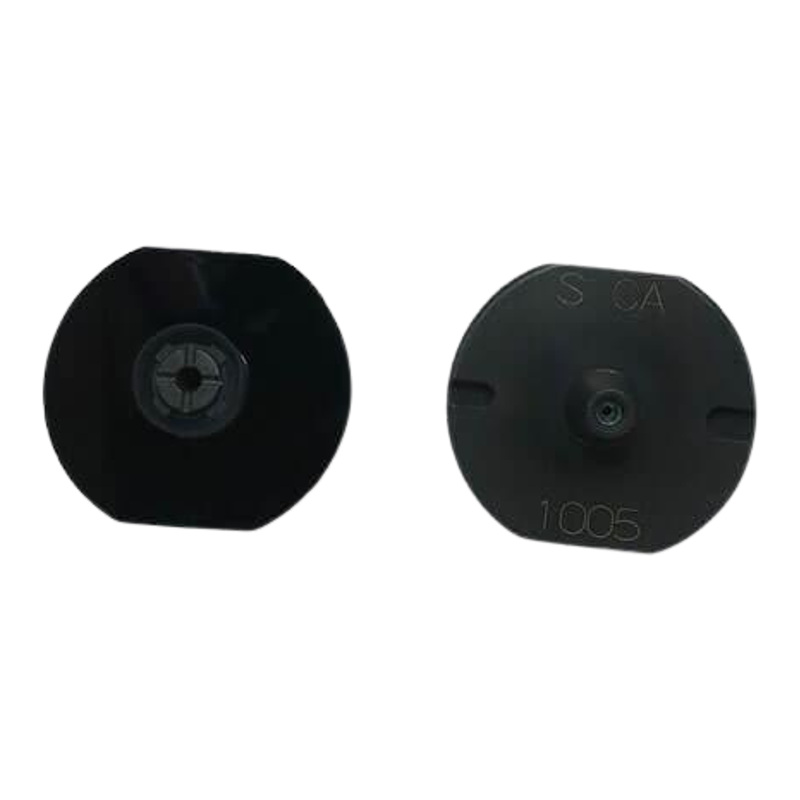

The retained listing places three ordering references beside the 1005 designation. The photograph shows two orientations of a nozzle reference, including its contact face. It does not establish that every code in the heading is an approved replacement for every other code. A buyer should retain both the requested nozzle mark and the exact order reference from the applicable machine documentation.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Record the installed nozzle designation, machine and head, then request a readable offered-item marking.
- Obtain the applicable tip and connection drawing; a catalogue photograph cannot supply reliable dimensions.
- Quote the required number of individual nozzles explicitly; two views do not establish a two-piece sale pack.
03 / Make a useful decision
Selection and replacement advice
Compare a 1005 request with another 100x nozzle by the actual head and component-presentation requirement. A common numeric prefix does not establish the same contact surface or working geometry. Ask the supplier which complete code is being offered and what supports any proposed mapping to an older code. Keep an alternative on a separate quote line until its application basis is resolved. This avoids accepting a familiar tip mark while losing the required assembly reference.
04 / Care and handling
Maintenance and handling guidance
Keep pickup and vision observations linked to the individual nozzle identity before cleaning.
Retain the relevant job and head context when comparing pre-service and post-service observations.
Use the applicable nozzle instructions for cleaning and acceptance; no solvent, cleaning pressure or retirement limit is specified here.
Before you ask
Questions about this part
Are the three order references confirmed aliases?
No. The supplier lists them together, but the retained evidence does not establish an OEM supersession or universal equivalence.
Does the picture show a supplied pair?
It is an identification illustration with different orientations. Supplied quantity must be stated separately.
Can a similar 100x nozzle replace this reference?
Only the applicable head and component requirements can establish a suitable alternative; the number prefix is insufficient.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
