Yamaha 72A nozzles
A supplier-listed 72A nozzle reference, KV8-M7720-A1X. Preserve the nozzle designation and full order code instead of treating all 70-series tips as the same part.
Selected part reference
KV8-M7720-A1X
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
KV8-M7720-A1X
- Model
- KV8-M7720-A1X
- Part code
- KV8-M7720-A1X
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| KV8-M7720-A1X | KV8-M7720-A1X | Catalogue reference. Exact offered assembly, machine interface and revision require confirmation. |
|
Application and identification
Use and ordering context

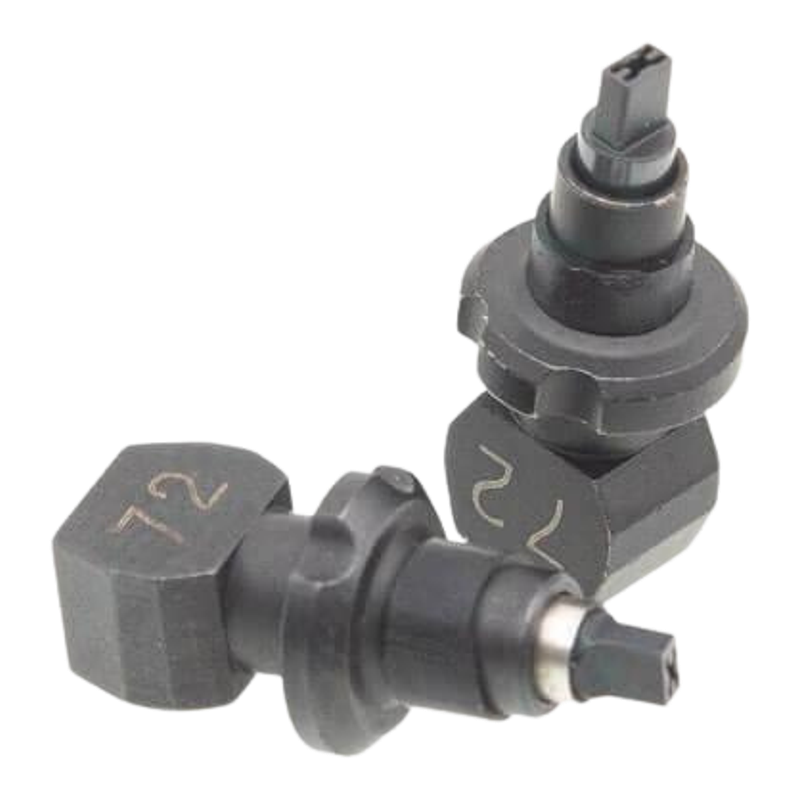

The verified listing identifies 72A and KV8-M7720-A1X. The original planning group was labelled 70A-series, but this page describes only the researched 72A reference; that planning label is not an alias for a different nozzle. The image shows complete nozzle bodies and tips from different orientations. It does not supply a dimensional drawing, a verified material specification or approval for a particular component.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Retain both 72A and KV8-M7720-A1X in the RFQ, with the actual head and component package requirement.
- Request a clear offered-item tip and connection view, plus the applicable dimensional reference rather than measuring the catalogue image.
- Specify the required number of individual nozzles; the number shown in the reference photograph does not define a sale pack.
03 / Make a useful decision
Selection and replacement advice
Compare the requested nozzle with another tip by the installed head requirement and component presentation, not by a shared numeric prefix. Ask for the exact offered marking, the applicable drawing and the machine setup reference. A larger-looking contact surface is not evidence that a nozzle will handle a larger component reliably. If a seller proposes another suffix, keep that proposal in a separate quote line until the responsible engineer confirms its basis.
04 / Care and handling
Maintenance and handling guidance
Record the installed nozzle mark before cleaning or inspection so a worn or mixed set does not lose its identity.
Separate contamination observations from tip damage and part-identification doubts; refer each to the applicable service procedure.
A clean appearance is not an acceptance test for pickup or placement; obtain the actual assessment required for the intended setup.
Before you ask
Questions about this part
Is this page offering a 70A nozzle?
The available product information identifies 72A / KV8-M7720-A1X. No different 70A reference is substituted or declared equivalent.
Do the pictured nozzles define pack quantity?
No. The photograph is an identification reference. Quantity and supplied contents must be explicit in the offer.
Can the tip photograph establish a usable component range?
No. That needs the nozzle/head requirement, relevant dimensions and an appropriate assessment for the component and machine.
