OverviewPillarhouse Jade Family Handload Selective Soldering
Pillarhouse Jade is a handload selective-soldering family for flexible batch work. This guide compares MKII and Pro without assigning the Pro reference image or its twin-bath configuration to an MKII offer. Choose the Jade configuration around joint access, alloy changes and operator-loaded cycle time. Do not apply Pro electrical demand, twin-bath features or optional preheat to every Jade machine.
One family · configuration choices
Compare Jade Family versions
Load and support a PCB or pallet, apply programmed flux and move a selective solder nozzle along the required through-hole joints. Qualify nozzle access, local heating and board support on the actual assembly. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.

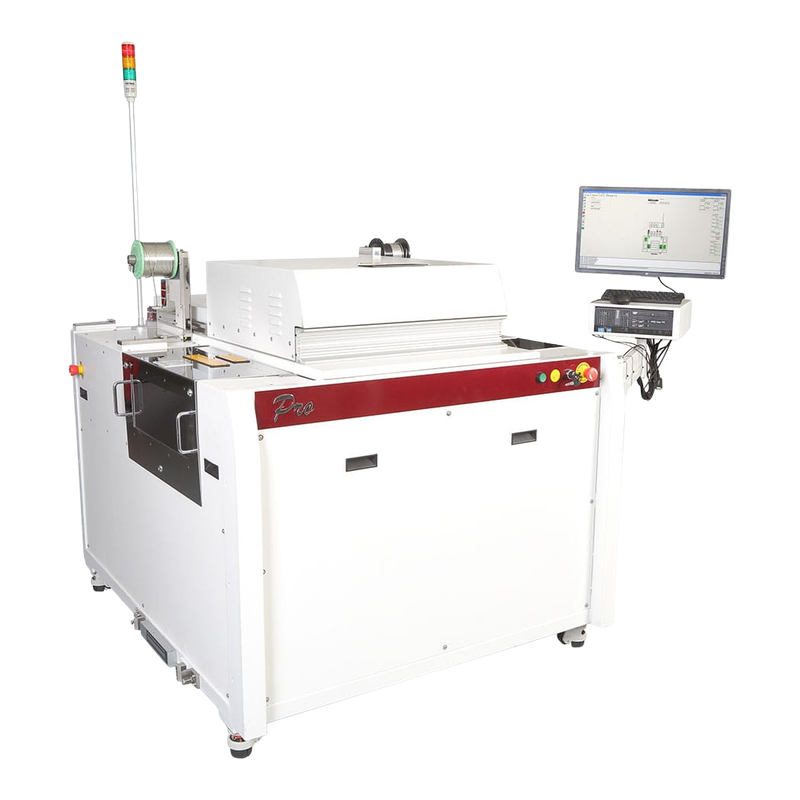

Reference image; twin-bath handload configuration
Jade Pro
- Board
- 457 × 508 mm manufacturer carrier envelope
- Solder
- Duplex twin baths; independent Z axes
- Boundary
- Verify two alloys or nozzle sizes, utilities and installed software
What the versions share
- Process
- Handload Selective Soldering
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.
Current manufacturer model descriptions checked 5 October 2026; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative Jade Family image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Pillarhouse Jade Family Technical Specifications
| Published board carrier | Up to 457 × 508 mm for MKII and Pro; larger handling is a separate option |
|---|---|
| Mkii solder system | Single solder bath; published pot capacity 8 kg |
| Pro solder system | Duplex twin solder baths with independent Z axes in the current manufacturer configuration |
| Mkii supply | Single phase + PE, 208–250 V, 50/60 Hz; 4 kVA before optional IR preheat |
| Pro supply | Three phase + neutral + PE; 230 V phase-neutral / 400 V phase-phase, configuration-dependent |
| Nitrogen boundary | Manufacturer specifies 99.995% purity or better; flow depends on version and nozzles |
| Programming | MKII current PillarCOMMX and Pro PillarCOMM; confirm installed version and PillarPAD license |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Pillarhouse Jade Family unit.
Key Features
Configuration Must Be Verified
The offer must identify Jade MKII/Pro nameplate, solder bath count, nozzle sizes, tooling carrier, flux system, preheat and software licenses; Representative joint wetting, underside clearance, board support, nozzle approach, flux application, full operator cycle and alloy identification.
Buyer decision guide
When Pillarhouse Jade Family Makes Sense — and When It May Not
Pillarhouse Jade Family selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Pillarhouse Jade Family Acceptance Plan
Start with joint access and support
For a Jade enquiry, send a populated-board drawing showing through-hole joints, bottom-side obstacles and the pallet that will actually be loaded. Agree which joints a selective nozzle must reach and which areas must remain untouched. Request a setup showing carrier clamps and edge support with the difficult components present. The published carrier envelope does not establish access under every assembly. A witnessed sample should retain flux application, nozzle path, heating conditions and the resulting joint evidence.
Keep MKII and Pro bath arrangements separate
Identify the exact Jade version and photograph the installed solder baths, pump arrangements and nozzles before comparing cycle or alloy-change requirements. The current Pro description uses Duplex twin baths with independent Z axes, while the MKII reference specifies a single bath. Do not turn a Pro family photograph into proof of an MKII upgrade or a fitted second alloy. Have the supplier demonstrate the intended nozzle changes and record the alloy identification, warm-up sequence and delivered bath accessories.
Include utilities, software and the operator cycle
Confirm electrical supply, nitrogen purity, nozzle-dependent gas flow, flux compatibility and extraction against the serial-specific manual. Request installed PillarCOMM or PillarCOMMX identification, recoverable recipes and any PillarPAD license. Time loading, soldering and unloading with the planned operator procedure rather than quoting nozzle travel alone. Pillarhouse China and a distributor with Shenzhen and Suzhou offices provide enquiry channels only. Neither was contacted; stock, condition, support and configuration remain purchase questions rather than verified inventory claims.
Typical Applications
Typical Applications for Pillarhouse Jade Family
Pillarhouse Jade Family should be evaluated against the buyer’s load and support a pcb or pallet, apply programmed flux and move a selective solder nozzle along the required through-hole joints. qualify nozzle access, local heating and board support on the actual assembly. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Pillarhouse Jade Family Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which published board carrier requirement must the proposed Pillarhouse Jade Family demonstrate?
Pillarhouse Jade Family buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Pillarhouse Jade Family offer: jade mkii/pro nameplate, solder bath count, nozzle sizes, tooling carrier, flux system, preheat and software licenses?
Pillarhouse Jade Family buyers should confirm this with actual-machine evidence before quotation.
3
Can the Pillarhouse Jade Family acceptance run document representative joint wetting, underside clearance, board support, nozzle approach, flux application, full operator cycle and alloy identification?
Pillarhouse Jade Family buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Pillarhouse Jade Family Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Pillarhouse Jade Family. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Load and support a PCB or pallet, apply programmed flux and move a selective solder nozzle along the required through-hole joints. Qualify nozzle access, local heating and board support on the actual assembly.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Pillarhouse Jade Family
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Pillarhouse Jade Family.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Pillarhouse Jade Family Spare Parts Scope
Request a unit-specific Pillarhouse Jade Family list for compatible AP nozzles, solder-pump service items, flux consumables, carrier clamps, bath service tools and authorized programming backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, published board carrier, installed configuration and destination, required accessories and desired inspection evidence for the proposed Pillarhouse Jade Family.
FAQ
Common questions for overseas buyers evaluating a Pillarhouse Jade Family.
01Application
Which production task suits Pillarhouse Jade Family?
Load and support a PCB or pallet, apply programmed flux and move a selective solder nozzle along the required through-hole joints. Qualify nozzle access, local heating and board support on the actual assembly. Choose the Jade configuration around joint access, alloy changes and operator-loaded cycle time. Do not apply Pro electrical demand, twin-bath features or optional preheat to every Jade machine.
02Configuration
What should a buyer confirm for Pillarhouse Jade Family?
Jade MKII/Pro nameplate, solder bath count, nozzle sizes, tooling carrier, flux system, preheat and software licenses. Request the exact nameplate and option list.
03Unit evidence
Does this Pillarhouse Jade Family illustration prove stock?
The Pillarhouse Jade Family illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Pillarhouse Jade Family unit.
Send Your Pillarhouse Jade Family Production Requirement
Share target assembly, process requirements, published board carrier, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Pillarhouse Jade Family configuration is a practical match.
